MantelMount MM540 Enhanced Pull Down TV Mount, 35-Degrees Swivel Each way or 60-Degrees One Way, Black Matte
Image of 4
Key Features
- Pull-down access for safe, ergonomic TV servicing and cable management — ideal for integrators and AV technicians
- Smooth gas-piston operation with 29-inch vertical travel for flexible viewing and easy maintenance

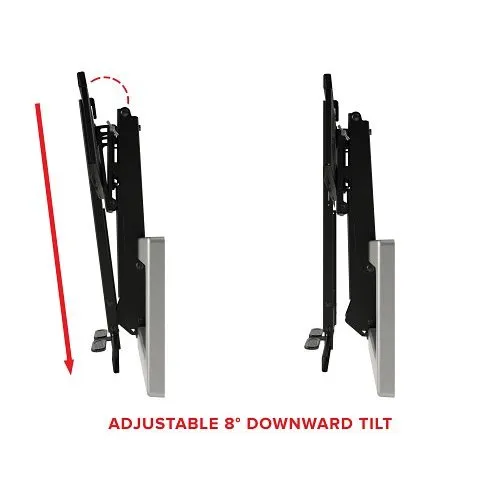

- Wide swivel and tilt range (35° each way or 60° one-way, plus 9° tilt) to eliminate glare and optimize sightlines in commercial or residential settings
- Robust 90 lb load capacity and broad VESA compatibility to support displays up to 80" with long-term reliability

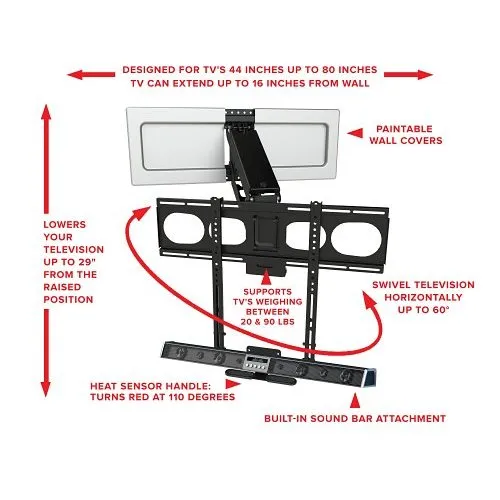

- Installer-friendly features including auto-straightening, adjustable stops, paintable wall covers and heat-sensing pull handles for cleaner installs and enhanced safety
Quick Specifications
- Product Model
- MM540
- Brand Name
- MantelMount
- Product Name
- MM540 Enhanced Pull Down TV Mount
- Product Type
- Wall Mount
Explore the details
Product information
MM540
Overview

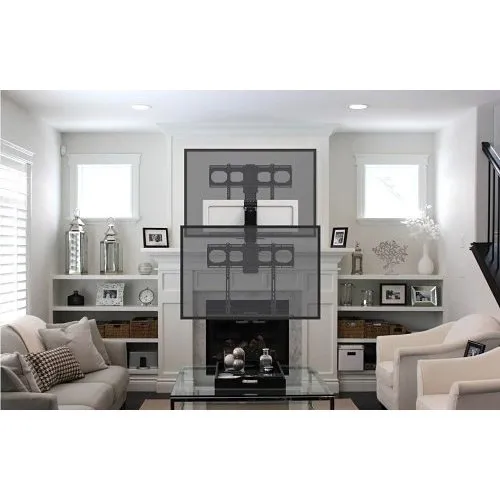

Designed for professional AV projects and high-end residential installs, the MantelMountPro MM540 Enhanced Pull Down TV Mount puts serviceability, safety and viewing flexibility first. This articulating pull-down TV mount delivers a full 29-inch vertical travel so technicians and end users can lower the display for easy access to ports, cabling and maintenance without compromising wall space. Engineered to support displays up to 80" and a maximum load of 90 lb, the MM540 offers broad VESA compatibility and a durable steel construction for reliable long-term performance.
Optimize sightlines with 35° swivel each way (or 60° one-way) and 9° tilt to reduce glare in lobbies, control rooms, conference spaces or living rooms. Installer-focused features — auto-straightening, adjustable stops, paintable wall covers and heat-sensing pull-down handles — speed deployment and create a clean finished look. The mount also works well for surveillance and monitoring displays or digital signage where secure, adjustable positioning is critical. Backed by a lifetime limited warranty, the MM540 is built for demanding environments. Add the MantelMountPro MM540 to your next project for safer serviceability and professional presentation — contact sales or order now.
Features
- Pull-down access for safe, ergonomic TV servicing and cable management — ideal for integrators and AV technicians
- Smooth gas-piston operation with 29-inch vertical travel for flexible viewing and easy maintenance
- Wide swivel and tilt range (35° each way or 60° one-way, plus 9° tilt) to eliminate glare and optimize sightlines in commercial or residential settings
- Robust 90 lb load capacity and broad VESA compatibility to support displays up to 80" with long-term reliability
- Installer-friendly features including auto-straightening, adjustable stops, paintable wall covers and heat-sensing pull handles for cleaner installs and enhanced safety
| General Information | |
|---|---|
| Brand Name | MantelMount |
| Manufacturer | MantelMount |
| Product Name | MM540 Enhanced Pull Down TV Mount |
| Product Type | Wall Mount |
| Product Model | MM540 |
| Application/Usage | Wall |
| Country of Origin | CN |
| Manufacturer Part Number | MM540 |
| Technical Information | |
| Device Supported | TV - Sound Bar or Speakers |
| Maximum Load Capacity | 90.00lb |
| Physical Characteristics | |
| Color | Black |
| VESA Mount Standard | 200 x 200, 200 x 300, 300 x 100, 300 x 200, 300 x 300, 400 x 200, 400 x 300, 400 x 400, 500 x 200, 500 x 300, 500 x 400, 500 x 500, 600 x 200, 600 x 300, 600 x 400, 600 x 500, 600 x 600 |
| VESA Mount Compatible | Yes |
| Product Information | |
| Mount Type | Articulating Mount |
| Number of Displays Supported | 1 |
| Maximum Screen Size Supported | 80.00" |
| Minimum Screen Size Supported | 40" |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | +/- 30° Swivel |
