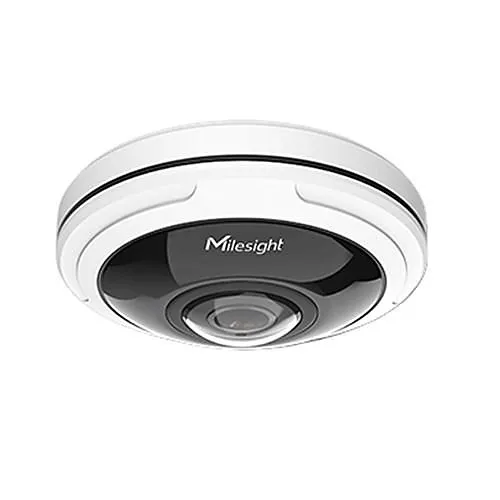

Milesight MS-C8274-PA 8MP 360° Fisheye Network Camera, 1.5mm Fixed Lens, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Single-camera 360° coverage with an 8MP fisheye lens to eliminate blind spots and reduce installation costs
- Embedded AI analytics (people counting, heat map, people flow) that turn surveillance into actionable business and security insights
- Flexible dewarping and multi-channel modes for seamless NVR/VMS integration and customizable monitoring views
- Robust IP67 weatherproof and IK10 vandal-resistant design for dependable indoor/outdoor operation
- Low-light SONY STARVIS sensor, Smart IR II up to 15m and H.265 compression for clearer night images and efficient storage
Quick Specifications
- Product Model
- MS-C8274-PA
- Brand Name
- Milesight
- Product Name
- 8MP NDAA AI 360° Fisheye Network Camera
- Product Type
- Network Camera
Frequently Bought Together
Milesight MS-C8274-PA 8MP 360° Fisheye Network Camera, 1.5mm Fixed Lens, White
$465.74
6 items selected
Total: $1,640.57
Product Information Tabs
Overview
Achieve full-scene monitoring with a single Milesight panoramic camera designed for professional security and operational intelligence. The MS-C8274-PA 8MP 360° fisheye network camera delivers complete situational awareness using a 1.5mm ultra-wide fixed lens and high-resolution 8MP imaging, so you capture more detail with fewer devices. Built-in AI deep learning features — including people counting, heat map and people flow analytics — turn raw video into business and safety insights, improving crowd management and store layout decisions while strengthening surveillance capabilities.
The camera supports advanced dewarping modes and dual compatibility (bundle-stream or multi-channel) for easy integration with NVRs and VMS platforms. SONY STARVIS low-light performance, Smart IR II illumination (up to 15m) and H.265 compression ensure clear images in challenging lighting and efficient network/storage usage. Rated IP67 and IK10 with a 3-year warranty, it’s engineered for reliable 24/7 security monitoring in retail, transportation, education and commercial sites. Contact us to specify or order the Milesight MS-C8274-PA for your next surveillance deployment.
Features
- Single-camera 360° coverage with an 8MP fisheye lens to eliminate blind spots and reduce installation costs
- Embedded AI analytics (people counting, heat map, people flow) that turn surveillance into actionable business and security insights
- Flexible dewarping and multi-channel modes for seamless NVR/VMS integration and customizable monitoring views
- Robust IP67 weatherproof and IK10 vandal-resistant design for dependable indoor/outdoor operation
- Low-light SONY STARVIS sensor, Smart IR II up to 15m and H.265 compression for clearer night images and efficient storage
| General Information | |
|---|---|
| Brand Name | Milesight |
| Manufacturer | Milesight |
| Product Name | 8MP NDAA AI 360° Fisheye Network Camera |
| Product Type | Network Camera |
| Product Model | MS-C8274-PA |
| Manufacturer Part Number | MSC8274PA |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360° |
| Video Formats | H.264, H.265 |
| Lens Mount Type | M12 |
| Maximum Aperture | f/1.8 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 1.5mm |
| Connectivity Technology | Wired |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 49.21 ft |
| Certifications | |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 0.9 |
| Maximum Operating Temperature | 140°F (60°C) |
| Minimum Operating Temperature | -40°F (-40°C) |
| Exposure | |
| Longest Shutter Speed | 1 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 1.5mm |
| Lens Included | Yes |
| Maximum Focal Length | 1.5mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 1.54lb |
| Durability | Dustproof, Impact Resistant, Vandalproof, Waterproof, Weatherproof |
| Form Factor | Fisheye |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 5.5" |
| Mount Type | Ceiling Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 4K |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 3D Digital Noise Reduction, Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, HTTPS Encryption, Motion Detection, Password Protection, Privacy Masking, Region of Interest, Tamper Detection, Wide Dynamic Range |
| Country of Origin | CN |
| Impact Protection Rating | IK10 |
