Milesight MS-C9674-PA 12MP 360° Fisheye Network Camera, 1.98mm Fixed Lens, White

SKU: MS-C9674-PA Milesight

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

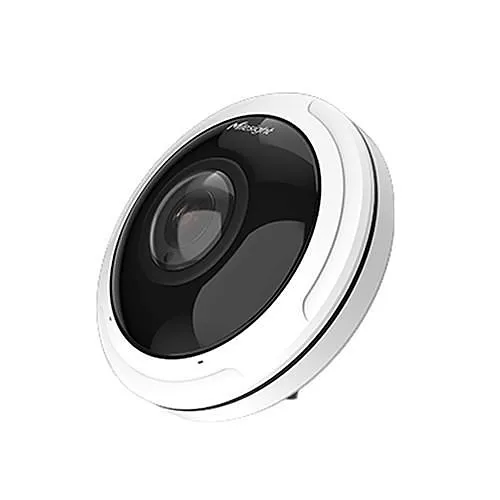

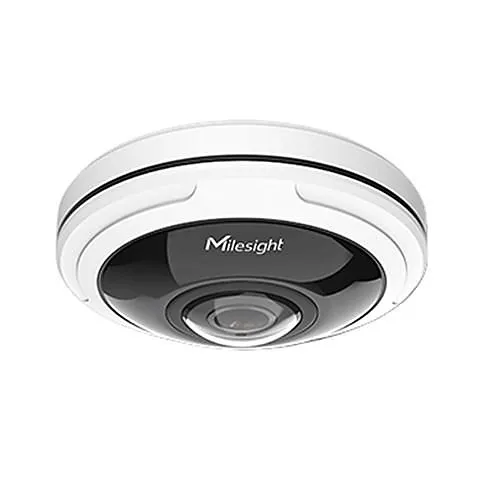

Image of 31-MSC9674PA
Product images for Milesight MS-C9674-PA 12MP 360° Fisheye Network Camera, 1.98mm Fixed Lens, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Complete 360° coverage replaces multiple cameras, reducing installation and maintenance costs while eliminating blind spots.
  • Built-in AI (People Counting, Heat Map) turns surveillance into actionable insights for retail, occupancy tracking, and operational optimization.
  • 12MP ultra‑HD sensor with a 1.98mm fisheye lens delivers detailed imaging and wide-area monitoring for reliable identification and evidence capture.
  • Rugged IP67 and IK10-rated housing ensures continuous outdoor/indoor monitoring in harsh environments for long-term deployment.
  • Supports H.265 compression and remote management for efficient bandwidth use and centralized surveillance operations.

Quick Specifications

Product Model
MS-C9674-PA
Brand Name
Milesight
Product Name
AI 360° Panoramic Fisheye Network Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for businesses that need reliable, full-area monitoring, the Milesight MS-C9674-PA panoramic fisheye network camera delivers 360° surveillance with the clarity and analytics modern security teams require. This Milesight panoramic camera's 12MP sensor and 1.98mm fixed fisheye lens capture ultra-high-definition imagery across large indoor or outdoor spaces, while infrared night vision extends coverage to roughly 15 meters (49 ft) for 24/7 protection. Advanced AI features—such as People Counting and Heat Map—convert video into operational intelligence that helps optimize staffing, store layouts, and visitor flow. Built for real-world deployments, the MS-C9674-PA is IP67 weatherproof and IK10 vandal-resistant, lowering total cost of ownership by reducing downtime and replacements. Support for H.265 encoding and remote management simplifies network load and centralized monitoring. Ideal for retail, transportation hubs, warehouses, and corporate campuses, this camera streamlines surveillance, enhances situational awareness, and supports compliance and incident review. Upgrade your security infrastructure with the Milesight MS-C9674-PA for scalable, intelligent monitoring—contact sales to specify mounts and storage options or add to your next site deployment.

Features

  • Complete 360° coverage replaces multiple cameras, reducing installation and maintenance costs while eliminating blind spots.
  • Built-in AI (People Counting, Heat Map) turns surveillance into actionable insights for retail, occupancy tracking, and operational optimization.
  • 12MP ultra‑HD sensor with a 1.98mm fisheye lens delivers detailed imaging and wide-area monitoring for reliable identification and evidence capture.
  • Rugged IP67 and IK10-rated housing ensures continuous outdoor/indoor monitoring in harsh environments for long-term deployment.
  • Supports H.265 compression and remote management for efficient bandwidth use and centralized surveillance operations.
General Information
Brand Name Milesight
Manufacturer Milesight
Product Name AI 360° Panoramic Fisheye Network Camera
Product Type Network Camera
Product Model MS-C9674-PA
Manufacturer Part Number MSC9674PA
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Ceiling Mount:360°; Wall Mount:180°; Flat Mount:360°
Video Formats H.264, H.265
Lens Mount Type M12
Maximum Aperture f/2.8
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 1.98mm
Connectivity Technology Wired
Effective Camera Resolution 12MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 4000 x 3000
Environmental Conditions
Operating Humidity 0.9
Maximum Operating Temperature 140°F (60°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 1 Second
Shortest Shutter Speed 1/100000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 1.98mm
Lens Included Yes
Maximum Focal Length 1.98mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 1.54lb
Durability Dustproof, Impact Resistant, Vandalproof, Waterproof, Weather Resistant
Form Factor Fisheye
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.5"
Mount Type Ceiling Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 2D Digital Noise Reduction (2DNR), Auto Gain Control, Automatic White Balance, Back Light Compensation (BLC), Cross Line Detection, Day/Night, Digital Wide Dynamic Range (D-WDR), Highlight Compensation (HLC), Noise Reduction, White Balance, Wide Dynamic Range
Country of Origin CN
Impact Protection Rating IK10
