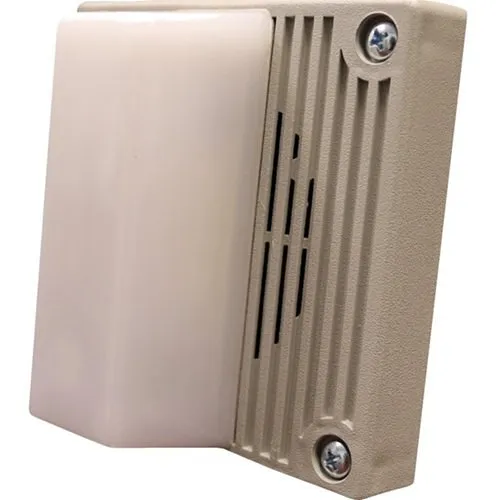

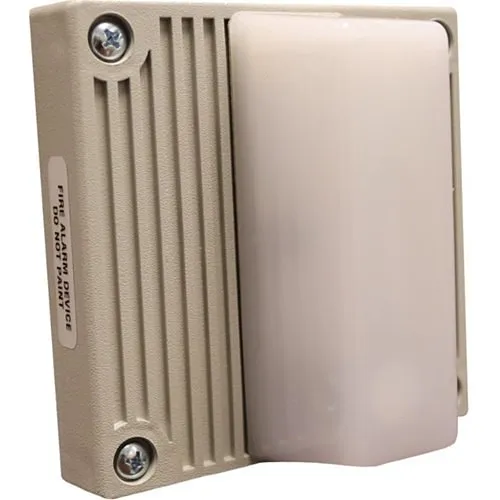

Eaton MT4-115-WH-VNS MT Multitone Horn Strobe, Xenon, Wall, No Lettering, Clear Lens, 115 cd, 120V AC, Indoor Outdoor, Gray
Image of 3
Key Features
- High-impact dual alerting: 115 cd strobe and 99 dB horn deliver unmistakable visual and audible warnings to protect people and property.
- Code-compliant tones: Built-in NFPA/ANSI temporal (Code-3) patterns simplify design and help meet emergency signaling standards without extra equipment.
- Sync-capable for unified alerts: Compatible with Wheelock SM/DSM sync modules for coordinated strobes across large facilities, improving monitoring and response.
- Installer-friendly wall mount: Flush mount design requires no additional trim plate for a clean, ADA-compliant installation that saves time on site.
- Simplified wiring and power: 120V AC operation supports single NAC circuit use to reduce wiring complexity and lower installation costs.
Quick Specifications
- Product Model
- MT4-115-WH-VNS
- Brand Name
- Eaton
- Product Line
- Eaton Wheelock
- Product Name
- MT4-115-WH-VNS Horn with Strobe
Product Information Tabs
Overview
Designed for reliable life-safety and security signaling, the Eaton MT4-115-WH-VNS horn strobe combines a high-output 115 cd xenon strobe with a powerful 99 dB electronic horn to ensure alarms are seen and heard in both indoor and outdoor environments. As part of the Eaton Wheelock MT series, this wall-mount unit offers eight selectable tones — including NFPA/ANSI temporal Code-3 patterns — so you can meet regulatory requirements without extra hardware. The strobe is sync-capable with Wheelock SM/DSM modules, enabling coordinated visual alerts across multiple devices to improve response and reduce alarm fatigue.
Built for contractors and system integrators, the MT4-115-WH-VNS mounts flush without a separate trim plate and runs on standard 120V AC for straightforward installation and reliable operation. The gray housing and clear lens provide a professional appearance for commercial, industrial, and institutional applications. Backed by Eaton’s 3-year limited warranty, this horn strobe is ideal for fire alarm, security, surveillance and monitoring systems. Specify the Eaton MT4-115-WH-VNS for your next project to streamline installation and enhance site-wide alerting.
Features
- High-impact dual alerting: 115 cd strobe and 99 dB horn deliver unmistakable visual and audible warnings to protect people and property.
- Code-compliant tones: Built-in NFPA/ANSI temporal (Code-3) patterns simplify design and help meet emergency signaling standards without extra equipment.
- Sync-capable for unified alerts: Compatible with Wheelock SM/DSM sync modules for coordinated strobes across large facilities, improving monitoring and response.
- Installer-friendly wall mount: Flush mount design requires no additional trim plate for a clean, ADA-compliant installation that saves time on site.
- Simplified wiring and power: 120V AC operation supports single NAC circuit use to reduce wiring complexity and lower installation costs.
| General Information | |
|---|---|
| Brand Name | Eaton |
| Manufacturer | Eaton Corporation |
| Product Line | Eaton Wheelock |
| Product Name | MT4-115-WH-VNS Horn with Strobe |
| Product Type | Horn Strobe |
| Product Model | MT4-115-WH-VNS |
| Manufacturer Part Number | MT4-115-WH-VNS |
| Technical Information | |
| Alarm Type | Audible, Visual |
| Environmental Conditions | |
| Sound Emission | 99 dB |
| Physical Characteristics | |
| Color | Gray |
| Lens Color | Clear |
| Form Factor | Wall Mount |
| Power Description | |
| Input Voltage | 120V AC |
| Product Information | |
| Mount Type | Wall Mount |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor, Outdoor |
| Country of Origin | US |
