Luminys N5T-4CA2 4MP LumiColor Turret IP Camera, 2.8mm Lens, White

SKU: N5T-4CA2 Luminys

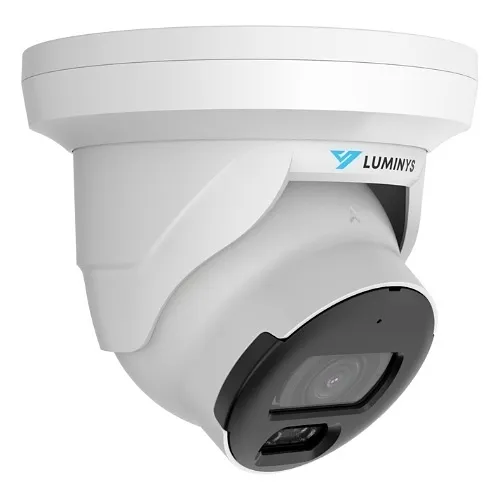

Image of LY-N5T4CA2
Product images for Luminys N5T-4CA2 4MP LumiColor Turret IP Camera, 2.8mm Lens, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Full-color night surveillance at 0 lux using integrated LumiColor white-light LEDs to deter intruders and capture actionable color evidence
  • High-resolution 4MP imaging with a fast f/1 aperture and 2.8mm wide-angle lens for clear, detailed coverage at up to 2688 x 1520 and 30 fps
  • Advanced analytics suite (line crossing, intrusion, face detection, people counting, heat maps) for smarter monitoring and faster incident response
  • Durable, weatherproof IP67 turret housing and NDAA compliance for secure deployments in harsh outdoor environments
  • Efficient H.265 video compression and LumiPower support to extend power/data reach up to 3,000' for flexible installation
  • Edge storage support with memory card backup to ensure continuous recording during network outages

Quick Specifications

Product Model
N5T-4CA2
Brand Name
Luminys
Product Line
LumiColor
Product Name
4MP Network LumiColor Turret Camera (2.8 mm)
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Designed for round-the-clock security monitoring, the Luminys N5T-4CA2 4MP LumiColor Turret IP Camera delivers full-color surveillance from dusk to dawn to improve detection, evidence quality, and deterrence. As part of Luminys’s LumiColor line, this IP camera combines integrated white-light LEDs and a wide f/1 aperture 2.8mm lens to capture vivid color video even at 0 lux, while producing crisp 4MP (2688 x 1520) images at up to 30 fps. The camera’s built-in analytics — including line crossing, intrusion, face detection, people counting and heat maps — reduces false alarms and speeds operator response for retail, parking, campus, and perimeter monitoring. With H.265 compression, IP67 weatherproofing, NDAA compliance and LumiPower capability that extends power/data reach for flexible installations, this turret camera fits professional security deployments that require reliability and low bandwidth usage. Ideal for integrators and facility managers seeking a versatile surveillance solution — add the N5T-4CA2 to your next project or contact sales for deployment guidance.

Features

  • Full-color night surveillance at 0 lux using integrated LumiColor white-light LEDs to deter intruders and capture actionable color evidence
  • High-resolution 4MP imaging with a fast f/1 aperture and 2.8mm wide-angle lens for clear, detailed coverage at up to 2688 x 1520 and 30 fps
  • Advanced analytics suite (line crossing, intrusion, face detection, people counting, heat maps) for smarter monitoring and faster incident response
  • Durable, weatherproof IP67 turret housing and NDAA compliance for secure deployments in harsh outdoor environments
  • Efficient H.265 video compression and LumiPower support to extend power/data reach up to 3,000' for flexible installation
  • Edge storage support with memory card backup to ensure continuous recording during network outages
General Information
Brand Name Luminys
Product Line LumiColor
Product Name 4MP Network LumiColor Turret Camera (2.8 mm)
Product Type IP Camera
Product Model N5T-4CA2
Product Series N5-C Mainstream
Manufacturer Part Number N5T-4CA2
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Effective Camera Resolution 4MP
Camera
Camera Type Turret
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.4'
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 2688 x 1520
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0 lux, 0.0005
Longest Shutter Speed 1/3 Second
Shortest Shutter Speed 1/100000 Second
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Others
Model Number Replaces N45EJN2
Physical Characteristics
Height 4.4"
Weight 1.2lb
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Diameter 4.8"
Storage
Storage Type Memory Card
Miscellaneous
Environmental Certification FCC, IC, UL
