Luminys N5T-4LAV 4MP IP LumiLuxSmart Turret Camera, 2.7-12mm Vari-Focal Lens, IP67, White

SKU: N5T-4LAV Luminys

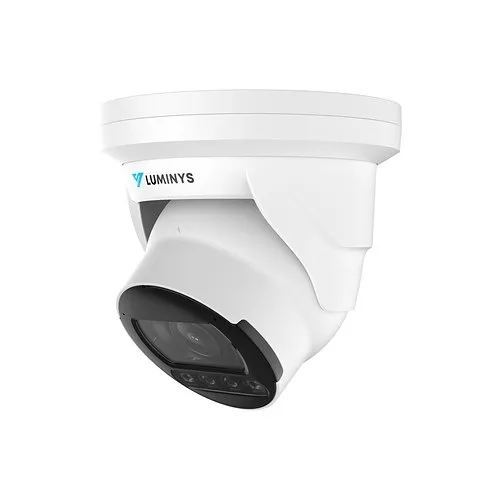

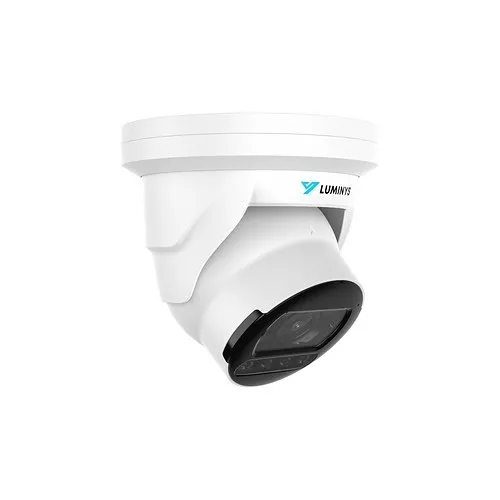

Image of LY-N5T4LAV
Product images for Luminys N5T-4LAV 4MP IP LumiLuxSmart Turret Camera, 2.7-12mm Vari-Focal Lens, IP67, White. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Hybrid low-light imaging (IR and adjustable white-light LEDs) for clear color identification or covert IR monitoring, reducing missed events and false positives.
  • Motorized 2.7–12mm vari-focal lens lets integrators quickly frame scenes on-site or remotely, minimizing installation time and camera count.
  • 4MP resolution with H.265 compression delivers sharper evidence-grade video while conserving bandwidth and storage for large deployments.
  • Rugged IP67 housing and wide temperature range ensure reliable outdoor surveillance in harsh environments and long-term uptime.
  • Advanced analytics (face detection, people counting, intrusion/line crossing) enable proactive security, operational insights, and smarter incident response.
  • LumiPower long-range capability and NDAA compliance simplify deployment for distributed sites and government projects.

Quick Specifications

Product Model
N5T-4LAV
Brand Name
Luminys
Product Line
LumiLuxSmart
Product Name
4MP Network LumiLuxSmart Turret Camera (Vari-Focal)
View Full Technical Specifications

Product Information Tabs

Overview

Designed for demanding security and monitoring applications, the Luminys N5T-4LAV 4MP turret camera delivers dependable, low-light surveillance that helps you spot people and incidents sooner. This LumiLuxSmart IP camera combines adjustable white-light LEDs and IR illumination so installers can balance deterrence and covert monitoring—automatically switching to white light on motion to capture full-color evidence, then returning to IR to limit light pollution. With a 4MP sensor and efficient H.265 video encoding, the camera produces detailed images while conserving bandwidth and storage for multi-site deployments. The motorized 2.7–12mm vari-focal lens lets integrators fine-tune field of view remotely, reducing installation time and the need for extra cameras. Built to perform outdoors, the N5T-4LAV meets IP67 ingress protection and operates across a wide temperature range for consistent uptime. Integrated analytics like face detection, people counting and intrusion/line-crossing add operational value beyond basic recording. Ideal for retail, campus, transportation and critical infrastructure projects, this Luminys turret camera simplifies installation and improves situational awareness—upgrade your security monitoring and schedule a demo or spec review today.

Features

  • Hybrid low-light imaging (IR and adjustable white-light LEDs) for clear color identification or covert IR monitoring, reducing missed events and false positives.
  • Motorized 2.7–12mm vari-focal lens lets integrators quickly frame scenes on-site or remotely, minimizing installation time and camera count.
  • 4MP resolution with H.265 compression delivers sharper evidence-grade video while conserving bandwidth and storage for large deployments.
  • Rugged IP67 housing and wide temperature range ensure reliable outdoor surveillance in harsh environments and long-term uptime.
  • Advanced analytics (face detection, people counting, intrusion/line crossing) enable proactive security, operational insights, and smarter incident response.
  • LumiPower long-range capability and NDAA compliance simplify deployment for distributed sites and government projects.
General Information
Brand Name Luminys
Product Line LumiLuxSmart
Product Name 4MP Network LumiLuxSmart Turret Camera (Vari-Focal)
Product Type IP Camera
Product Model N5T-4LAV
Product Series N5-L Mainstream
Manufacturer Part Number N5T-4LAV
Technical Information
Lens Type Varifocal
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.2
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Minimum Focal Length 2.7mm
Effective Camera Resolution 4MP
Camera
Camera Type Turret
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 131'
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 2688 x 1520
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0 lux, 0.0003, 0.0006
Longest Shutter Speed 1/3 Second
Shortest Shutter Speed 1/100000 Second
Lens
Focal Length 2.7-12mm
Lens Included Yes
Maximum Focal Length 12mm
Others
Model Number Replaces N45FJ6Z
Physical Characteristics
Color White
Height 5.6"
Weight 2.0lb
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.6"
Storage
Storage Type Memory Card
Miscellaneous
Environmental Certification FCC, IC, UL
