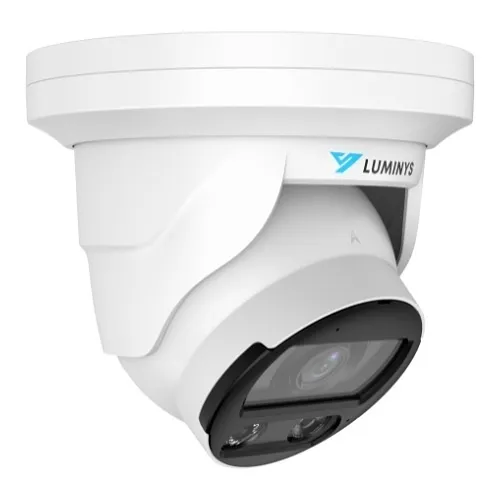

Luminys N5T-8CA2 8MP LumiColor IP Turret Camera, 2.8mm Fixed Lens
Key Features
- Capture actionable, full-color video day or night with LumiColor white-light LEDs to deter intruders and improve identification.
- High-resolution 8MP (3840 x 2160) imaging with a 2.8mm wide-angle lens for broad coverage and crisp forensic detail.
- Onboard LumiAnalytics and Video Content Analytics+ (face detection, people counting, line crossing, intrusion) to cut false alarms and support operational monitoring.
- Rugged, NDAA-compliant IP67 turret design and wide temperature range for reliable outdoor security in harsh environments.
- Optimized network and storage efficiency with H.265/video codecs, local memory card support, and LumiPower extension up to 3,000' for flexible installations.
Quick Specifications
- Product Model
- N5T-8CA2
- Brand Name
- Luminys
- Product Line
- LumiColor
- Product Name
- 8MP Network LumiColor Turret Camera (2.8 mm)
Frequently Bought Together
Luminys N5T-8CA2 8MP LumiColor IP Turret Camera, 2.8mm Fixed Lens
$333.82
9 items selected
Total: $1,631.52
Product Information Tabs
Overview
Designed for 24/7 security and operational monitoring, the Luminys N5T-8CA2 8MP LumiColor IP Turret Camera delivers full-color surveillance even in total darkness to help deter crime and capture usable evidence. As a LumiColor turret camera, it pairs a fast f/1 aperture and an integrated white-light LED array with an 8MP 3840 x 2160 sensor and a 2.8mm fixed lens to provide wide, detailed coverage and clear identification at distances up to ~98 ft.
Beyond image quality, this IP camera adds intelligence that reduces manual review: LumiAnalytics and Video Content Analytics+ provide face detection, people counting, heat maps, line crossing and intrusion alerts to improve situational awareness and lower false positives. The unit supports modern codecs including H.265 for efficient bandwidth and storage, local memory card recording, and LumiPower extension for installations requiring longer power runs (up to 3,000').
Built to perform outdoors, the N5T-8CA2 is NDAA-compliant and rated IP67 for dependable operation in harsh conditions. Ideal for retail, parking, campus and perimeter security deployments, contact our team to configure, request a quote, or add this Luminys turret camera to your next surveillance project.
Features
- Capture actionable, full-color video day or night with LumiColor white-light LEDs to deter intruders and improve identification.
- High-resolution 8MP (3840 x 2160) imaging with a 2.8mm wide-angle lens for broad coverage and crisp forensic detail.
- Onboard LumiAnalytics and Video Content Analytics+ (face detection, people counting, line crossing, intrusion) to cut false alarms and support operational monitoring.
- Rugged, NDAA-compliant IP67 turret design and wide temperature range for reliable outdoor security in harsh environments.
- Optimized network and storage efficiency with H.265/video codecs, local memory card support, and LumiPower extension up to 3,000' for flexible installations.
| General Information | |
|---|---|
| Brand Name | Luminys |
| Product Line | LumiColor |
| Product Name | 8MP Network LumiColor Turret Camera (2.8 mm) |
| Product Type | IP Camera |
| Product Model | N5T-8CA2 |
| Product Series | N5-C Mainstream |
| Manufacturer Part Number | N5T-8CA2 |
| Technical Information | |
| Lens Type | Fixed |
| Night Vision | Yes |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.264B, H.264H, H.265, LumiFocus, MJPEG |
| Maximum Aperture | f/1 |
| Night Vision Type | Infrared (IR) |
| Maximum Frame Rate | 30fps |
| Effective Camera Resolution | 8MP |
| Camera | |
| Camera Type | Turret |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.4' |
| Certifications | |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP67 |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 0.95 |
| Maximum Operating Temperature | 140°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0 lux, 0.0005 |
| Longest Shutter Speed | 1/3 Second |
| Shortest Shutter Speed | 1/100000 Second |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Others | |
| Model Number Replaces | N85EUN2 |
| Physical Characteristics | |
| Height | 5.1" |
| Weight | 1.7lb |
| Form Factor | Turret |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 5.6" |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Environmental Certification | FCC, IC, UL |
