Luminys N5T-8LA2 8MP IP LumiLuxSmart White Turret Camera, 2.8mm Fixed Lens

SKU: N5T-8LA2 Luminys

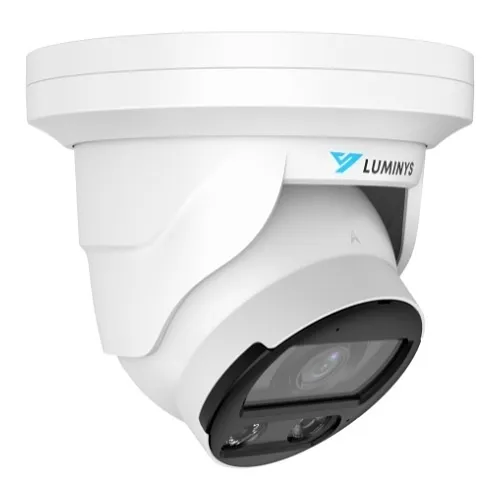

Image of LY-N5T8LA2

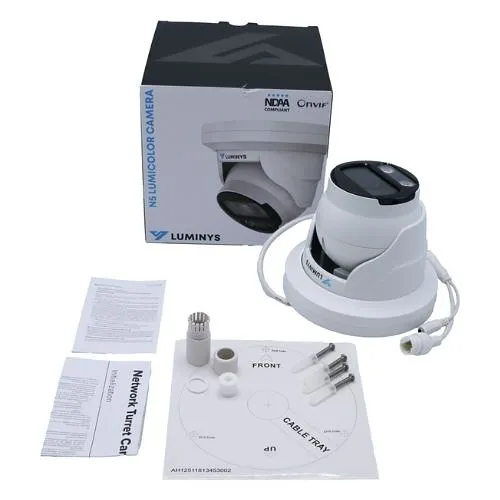

Product images for Luminys N5T-8LA2 8MP IP LumiLuxSmart White Turret Camera, 2.8mm Fixed Lens. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Deliver consistent day/night color surveillance with LumiLuxSmart dual IR and white-light LEDs and true 8MP detail.
  • Three configurable low-light modes (IR-only, white-light-only, motion-triggered) let you balance deterrence, covert monitoring and energy efficiency.
  • Built-in video analytics—face detection, people counting, line crossing and intrusion—turn footage into actionable security insights.
  • Rugged IP67 housing and wide operating temperature range protect outdoor installations and reduce maintenance downtime.
  • 2.8mm fixed lens with 4K (3840×2160) resolution at 30fps provides clear identification and forensic-grade recordings.

Quick Specifications

Product Model
N5T-8LA2
Brand Name
Luminys
Product Line
LumiLuxSmart
Product Name
8MP Network LumiLuxSmart Turret Camera (2.8 mm)
View Full Technical Specifications

Product Information Tabs

Overview

For reliable all‑day perimeter and property protection, the Luminys N5T-8LA2 8MP IP LumiLuxSmart turret camera delivers high‑resolution surveillance where low light is a challenge. This LumiLuxSmart turret camera combines a 2.8mm fixed lens and 8MP (4K) imaging with adaptive LumiTechnologies—IR and white‑light LEDs—that automatically switch or trigger on motion to reveal color details at night without constant light pollution. The result is clearer identification, fewer false alarms and more efficient monitoring.

Designed for installers and security managers, the N5T-8LA2 supports H.265 video compression, industry-grade analytics (face detection, people counting, line crossing and intrusion) and remote white-light brightness adjustment to tailor deterrence levels. With IP67 ingress protection and a wide operating temperature range, this IP camera is built for outdoor environments and continuous operation. Night vision reaches up to about 98 feet, ensuring dependable coverage after dark.

Standardize installations with a single turret platform that reduces inventory and simplifies commissioning. Ideal for retail, parking lots, campuses and perimeter security—contact us to specify the Luminys LumiLuxSmart turret camera for your next surveillance or monitoring project.

Features

  • Deliver consistent day/night color surveillance with LumiLuxSmart dual IR and white-light LEDs and true 8MP detail.
  • Three configurable low-light modes (IR-only, white-light-only, motion-triggered) let you balance deterrence, covert monitoring and energy efficiency.
  • Built-in video analytics—face detection, people counting, line crossing and intrusion—turn footage into actionable security insights.
  • Rugged IP67 housing and wide operating temperature range protect outdoor installations and reduce maintenance downtime.
  • 2.8mm fixed lens with 4K (3840×2160) resolution at 30fps provides clear identification and forensic-grade recordings.
General Information
Brand Name Luminys
Product Line LumiLuxSmart
Product Name 8MP Network LumiLuxSmart Turret Camera (2.8 mm)
Product Type IP Camera
Product Model N5T-8LA2
Product Series N5-L Mainstream
Manufacturer Part Number N5T-8LA2
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Effective Camera Resolution 8MP
Camera
Camera Type Turret
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.4'
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0 lux, 0.0003, 0.0005
Longest Shutter Speed 1/3 Second
Shortest Shutter Speed 1/100000 Second
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Others
Model Number Replaces N85FJ62
Physical Characteristics
Color White
Height 5.1"
Weight 1.7lb
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.6"
Storage
Storage Type Memory Card
Miscellaneous
Environmental Certification FCC, IC, UL
