Luminys N5T-8LA2B 8MP IP LumiLuxSmart Turret Camera, 2.8mm Fixed Lens, LumiPower, Black

SKU: N5T-8LA2B Luminys

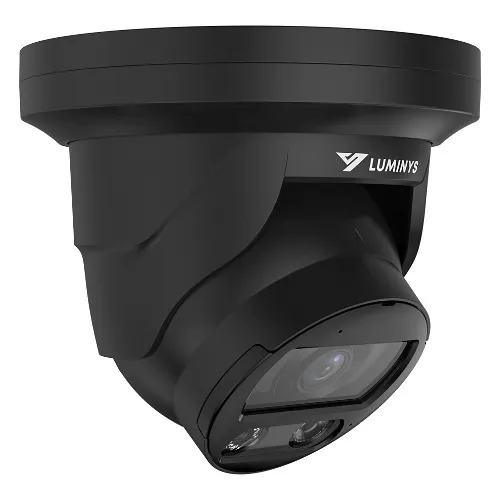

Image of LY-N5T8LA2B
Product images for Luminys N5T-8LA2B 8MP IP LumiLuxSmart Turret Camera, 2.8mm Fixed Lens, LumiPower, Black. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Dual-mode LumiLuxSmart lighting (IR, white light, motion-triggered) for clear color ID at night or covert IR imaging
  • 8MP resolution with 2.8mm fixed lens for wide, crisp coverage and reliable identification
  • LumiPower support extends link/power distances up to 3,000 ft to simplify installations and reduce infrastructure costs
  • Built-in analytics (face detection, people counting, line crossing, intrusion) to reduce false alarms and speed incident response
  • IP67 weatherproof, NDAA-compliant design for secure outdoor deployments and long-term reliability

Quick Specifications

Product Model
N5T-8LA2B
Brand Name
Luminys
Product Line
LumiLuxSmart
Product Name
8MP Network LumiLuxSmart Black Turret Camera (2.8 mm)
View Full Technical Specifications

Product Information Tabs

Overview

Deliver dependable, high-resolution surveillance in any lighting condition with the Luminys N5T-8LA2B 8MP IP LumiLuxSmart turret camera. Purpose-built for perimeter, parking and retail monitoring, this Luminys turret camera combines an 8MP sensor and a 2.8mm fixed lens to capture wide, detailed scenes while minimizing blind spots. The LumiLuxSmart dual-light system lets you choose IR-only for covert monitoring, white-light for visible deterrence, or motion-triggered white-light activation for color identification only when needed—reducing light pollution and preserving energy.

Installers benefit from LumiPower support that extends power and network reach up to 3,000 ft, simplifying deployments in large sites. H.265 compression and on-camera storage options lower bandwidth and retention costs, while advanced analytics—face detection, people counting, intrusion/line-crossing—help automate alerts and speed investigations. Rated IP67 and NDAA-compliant, this turret camera is built to withstand harsh environments and meet government procurement standards. Upgrade your security and monitoring strategy with a flexible, installer-friendly camera that prioritizes actionable video. Contact sales or add to your next site design for robust surveillance coverage.

Features

  • Dual-mode LumiLuxSmart lighting (IR, white light, motion-triggered) for clear color ID at night or covert IR imaging
  • 8MP resolution with 2.8mm fixed lens for wide, crisp coverage and reliable identification
  • LumiPower support extends link/power distances up to 3,000 ft to simplify installations and reduce infrastructure costs
  • Built-in analytics (face detection, people counting, line crossing, intrusion) to reduce false alarms and speed incident response
  • IP67 weatherproof, NDAA-compliant design for secure outdoor deployments and long-term reliability
General Information
Brand Name Luminys
Product Line LumiLuxSmart
Product Name 8MP Network LumiLuxSmart Black Turret Camera (2.8 mm)
Product Type IP Camera
Product Model N5T-8LA2B
Product Series N5-L Mainstream
Manufacturer Part Number N5T-8LA2B
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Effective Camera Resolution 8MP
Camera
Camera Type Turret
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.4'
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0 lux, 0.0003, 0.0005
Longest Shutter Speed 1/3 Second
Shortest Shutter Speed 1/100000 Second
Lens
Focal Length 2.8mm
Lens Included Yes
Maximum Focal Length 2.8mm
Others
Model Number Replaces N85FJ62
Physical Characteristics
Color Black
Height 5.1"
Weight 1.7lb
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.6"
Storage
Storage Type Memory Card
Miscellaneous
Environmental Certification FCC, IC, UL
