Luminys N5T-8LAV 8MP Turret Camera, 2.7-12mm Varifocal Lens

SKU: N5T-8LAV Luminys

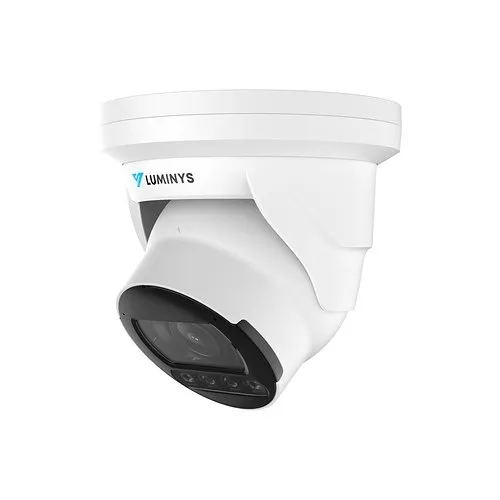

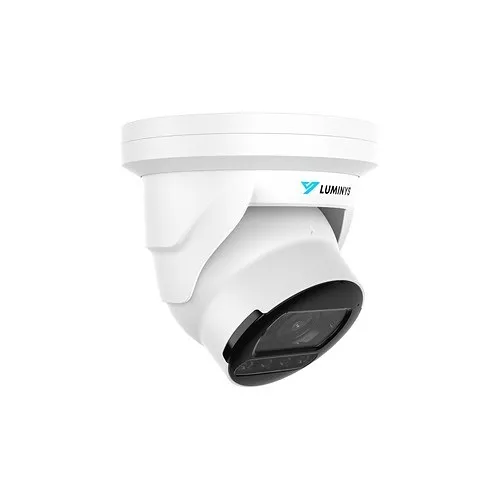

Image of LY-N5T8LAV
Product images for Luminys N5T-8LAV 8MP Turret Camera, 2.7-12mm Varifocal Lens. 3 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Crystal-clear 8MP imaging for sharper identification and fewer false positives during security monitoring
  • LumiLuxSmart dual illumination (IR + adjustable white-light) for covert surveillance or visible deterrence with motion-based activation
  • Motorized 2.7–12mm varifocal lens enables fast on-site field-of-view adjustment for perimeter, entrance, or wide-area coverage
  • Embedded video analytics (face detection, people counting, line crossing, intrusion) reduces operator workload and accelerates incident response
  • IP67-rated, NDAA-compliant housing with extended-range power options for reliable outdoor deployments and simplified installations

Quick Specifications

Product Model
N5T-8LAV
Brand Name
Luminys
Product Line
LumiLuxSmart
Product Name
8MP Network LumiLuxSmart Turret Camera (Vari-Focal)
View Full Technical Specifications

Product Information Tabs

Overview

Designed for demanding low-light security environments, the Luminys N5T-8LAV 8MP turret camera delivers clear, actionable surveillance so integrators and security teams can detect, verify and respond faster. The 8MP sensor captures high-resolution detail at up to 3840 x 2160, while the motorized 2.7–12mm varifocal lens lets you precisely tailor coverage for entrances, parking lots or retail aisles. Luminys’s LumiLuxSmart dual-illumination seamlessly switches between IR and adjustable white-light LEDs — with motion-activated white light for visible deterrence and energy-efficient IR for covert monitoring. Built-in analytics including face detection, people counting and intrusion/line-crossing alerts streamline monitoring and reduce false alarms, and efficient H.265 encoding lowers bandwidth and storage costs. Rugged IP67 construction and NDAA compliance make the N5T-8LAV ideal for outdoor and critical infrastructure installations. If you need dependable, flexible surveillance with powerful analytics and low-light performance, the N5T-8LAV is ready for perimeter, campus, retail or parking deployments—contact your Luminys reseller or add to your system design today.

Features

  • Crystal-clear 8MP imaging for sharper identification and fewer false positives during security monitoring
  • LumiLuxSmart dual illumination (IR + adjustable white-light) for covert surveillance or visible deterrence with motion-based activation
  • Motorized 2.7–12mm varifocal lens enables fast on-site field-of-view adjustment for perimeter, entrance, or wide-area coverage
  • Embedded video analytics (face detection, people counting, line crossing, intrusion) reduces operator workload and accelerates incident response
  • IP67-rated, NDAA-compliant housing with extended-range power options for reliable outdoor deployments and simplified installations
General Information
Brand Name Luminys
Product Line LumiLuxSmart
Product Name 8MP Network LumiLuxSmart Turret Camera (Vari-Focal)
Product Type IP Camera
Product Model N5T-8LAV
Product Series N5-L Mainstream
Manufacturer Part Number N5T-8LAV
Technical Information
Lens Type Varifocal
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.2
Night Vision Type Infrared (IR)
Maximum Frame Rate 30fps
Minimum Focal Length 2.7mm
Effective Camera Resolution 8MP
Camera
Camera Type Turret
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 131'
Certifications
NDAA Compliant Yes
Ingress Protection Rating IP67
Display & Graphics
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 140°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0 lux, 0.0004, 0.0007
Longest Shutter Speed 1/3 Second
Shortest Shutter Speed 1/100000 Second
Lens
Focal Length 2.7-12mm
Lens Included Yes
Maximum Focal Length 12mm
Others
Model Number Replaces N85FJ6Z
Physical Characteristics
Height 5.6"
Weight 2.0lb
Form Factor Turret
Power Description
Input Voltage 12V DC
Product Information
Diameter 5.6"
Storage
Storage Type Memory Card
Miscellaneous
Environmental Certification FCC, IC, UL
