Crown NCDI4X12BL-U-US CDi 4|1200BL DriveCore 4-Channel 1200W Analog Power Amplifier with BLU Link

SKU: NCDI4X12BL-U-US Crown by Harman

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Crown CDi DriveCore 4|1200 Amplifier - 4800 W RMS - 4 Channel

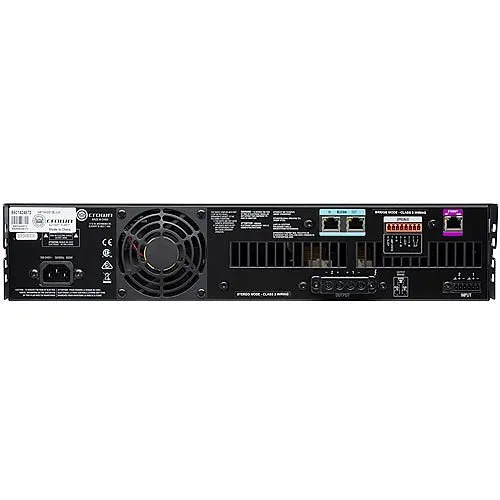

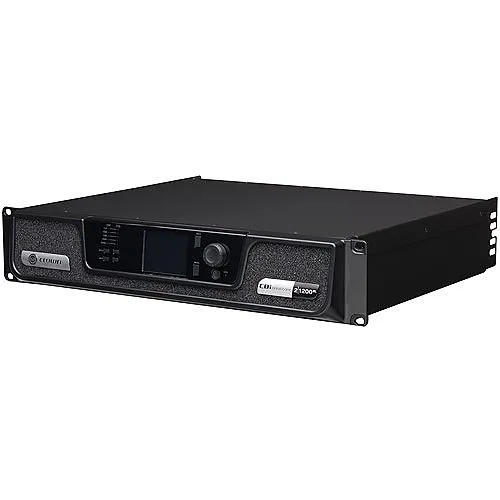

Product images for Crown NCDI4X12BL-U-US CDi 4|1200BL DriveCore 4-Channel 1200W Analog Power Amplifier with BLU Link. 3 image(s) available. Click on image to view full size.

Key Features

  • Delivers dependable, high-impact coverage with four 1200W channels so large venues and multi-zone systems stay loud and clear
  • Ethernet network control and monitoring for remote management, status reporting and integration with security/surveillance systems
  • Built-in DSP, JBL speaker tunings and BLU Link simplify commissioning and deliver optimized, consistent sound across installations
  • Supports up to 100Vrms speaker loads without external transformers, reducing installation time and material costs
  • Compact 2U rack design and efficient DriveCore technology save rack space and lower operating power consumption
  • Backed by a 3-year limited warranty for long-term reliability in professional AV, cinema, house of worship and hospitality deployments

Quick Specifications

Product Model
4|1200
Brand Name
Crown by Harman
Product Line
CDi DriveCore
Product Name
CDi 4|1200 Analog Input, 4 Channel, 1200W Per Output Channel
View Full Technical Specifications

Product Information Tabs

Overview

Provide reliable, pro-grade amplification for large installed sound and security systems with the Crown by Harman CDi 4|1200 analog power amplifier. Designed for contractors and integrators, this 4-channel DriveCore amp delivers 1200W per channel (4x1200W, 4800W total) with low distortion and full-range response from 20 Hz–20 kHz to ensure clear speech, powerful music and dependable paging across venues. Integrated Ethernet network control and monitoring enable remote status checks and easy integration with monitoring and surveillance platforms, while onboard DSP and JBL speaker presets reduce tuning time on site. The unit can drive 100Vrms speaker loads without a transformer, simplifying multi-zone installs in hotels, houses of worship, cinemas and corporate AV systems. Compact 2U form factor and energy-efficient DriveCore design keep rack requirements minimal and operating costs down. Specify the CDi 4|1200 for any project that needs rugged, networked amplification with straightforward setup—contact sales or add to your next system design today.

Features

  • Delivers dependable, high-impact coverage with four 1200W channels so large venues and multi-zone systems stay loud and clear
  • Ethernet network control and monitoring for remote management, status reporting and integration with security/surveillance systems
  • Built-in DSP, JBL speaker tunings and BLU Link simplify commissioning and deliver optimized, consistent sound across installations
  • Supports up to 100Vrms speaker loads without external transformers, reducing installation time and material costs
  • Compact 2U rack design and efficient DriveCore technology save rack space and lower operating power consumption
  • Backed by a 3-year limited warranty for long-term reliability in professional AV, cinema, house of worship and hospitality deployments
General Information
Brand Name Crown by Harman
Manufacturer Harman International Industries, Inc
Product Line CDi DriveCore
Product Name CDi 4|1200 Analog Input, 4 Channel, 1200W Per Output Channel
Product Type Amplifier
Product Model 4|1200
Manufacturer Part Number NCDI4X12BL-U-US
Technical Information
Impedance 8 ohms
Audio Channels 4
Audio
RMS Output Power 4800W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Total Harmonic Distortion (THD) 0.4%
Certifications
TAA Compliant No
Network & Communication
Ethernet Yes
Physical Characteristics
Color Black
Depth 14.7"
Width 19"
Height 3.5"
Weight 17.20 lb
Power Description
Input Voltage 100V AC, 240V AC
Warranty
Limited Warranty 3-Year
Miscellaneous
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification WEEE
