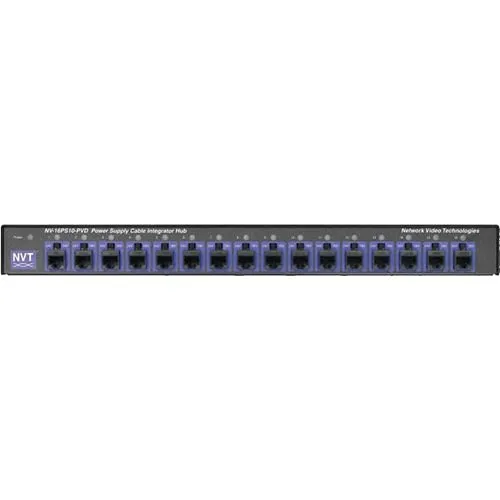

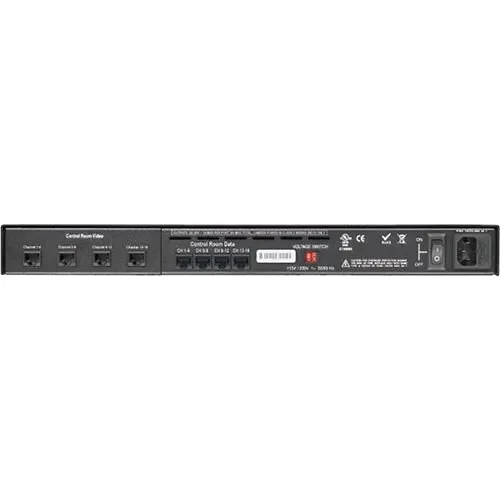

NVT Phybridge NV-16PS10-PVD Power Supply Cable Integrated Hub
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 5
Key Features
- Centralize power and connectivity for up to 16 cameras over a single UTP drop each, reducing cabling and installation time
- Deliver reliable Class 2 camera power (1 A per channel) with selectable 24/28VAC and transient/fault protection for continuous surveillance operation
- Pass-through video and PTZ/telemetry over the same cable to simplify wiring to control/MDF rooms and maintain camera control
- Individually floating outputs provide ground-loop immunity to preserve video quality and prevent costly troubleshooting
- Rack or wall-mountable 1U design with diagnostic LEDs for quick status checks and faster onsite maintenance
Quick Specifications
- Product Model
- NV-16PS10-PVD
- Sector
- Video Surveillance
- Brand Name
- NVT Phybridge
- Product Name
- NV-16PS10-PVD Power over Ethernet Midspan
Explore the details
Product information
NV-16PS10-PVD
Overview
Streamline enterprise security deployments by consolidating camera power, video and telemetry on existing structured cabling. The NVT Phybridge NV-16PS10-PVD power supply hub is designed for surveillance and monitoring environments, delivering Class 2 SELV camera power and pass-through video/telemetry for up to 16 cameras over standard 4-pair RJ45 UTP. With independently selectable 24 or 28 VAC outputs and up to 1 A per channel, this PoE injector-style midspan supports longer power distances and a total output capacity that meets demanding installations. Built for telecom closets, MDFs and control rooms, the NV-16PS10-PVD reduces rack clutter and installation costs while offering automatic-reset fault protection, transient suppression and floating outputs to eliminate ground loops. Diagnostic LEDs simplify commissioning and ongoing maintenance, making it ideal for enterprise security, critical infrastructure monitoring and large video surveillance systems. Backed by NVT Phybridge engineering and a lifetime limited warranty, the NV-16PS10-PVD helps you deploy reliable camera networks faster—contact us for quotes or specify it for your next surveillance project.
Features
- Centralize power and connectivity for up to 16 cameras over a single UTP drop each, reducing cabling and installation time
- Deliver reliable Class 2 camera power (1 A per channel) with selectable 24/28VAC and transient/fault protection for continuous surveillance operation
- Pass-through video and PTZ/telemetry over the same cable to simplify wiring to control/MDF rooms and maintain camera control
- Individually floating outputs provide ground-loop immunity to preserve video quality and prevent costly troubleshooting
- Rack or wall-mountable 1U design with diagnostic LEDs for quick status checks and faster onsite maintenance
| General Information | |
|---|---|
| Sector | Video Surveillance |
| Brand Name | NVT Phybridge |
| Manufacturer | Phybridge, Inc |
| Product Name | NV-16PS10-PVD Power over Ethernet Midspan |
| Product Type | PoE Injector Hub |
| Product Model | NV-16PS10-PVD |
| Country of Origin | US |
| Manufacturer Part Number | NV16PS10PVD |
| Interfaces/Ports | |
| Output Ports | 16 x Ethernet |
| Physical Characteristics | |
| Depth | 12.0" |
| Width | 19.0" |
| Height | 1.7" |
| Weight | 22.00lb |
| Power Description | |
| Input Voltage | 120V AC, 230V AC |
| Maximum Frequency | 60Hz |
| Maximum Output Power | 325W |
| Maximum Input Current | 3A |
| Maximum Output Current | 1.0A |
| Maximum Output Voltage | 28V |
| Product Information | |
| Mount Type | Desktop Mount, Wall Mount |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Compatibility | Network Cameras |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
