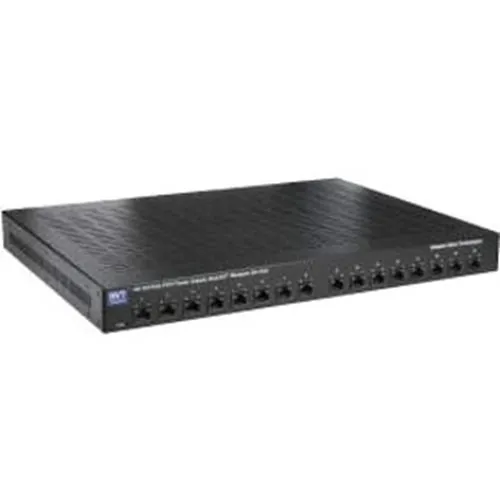

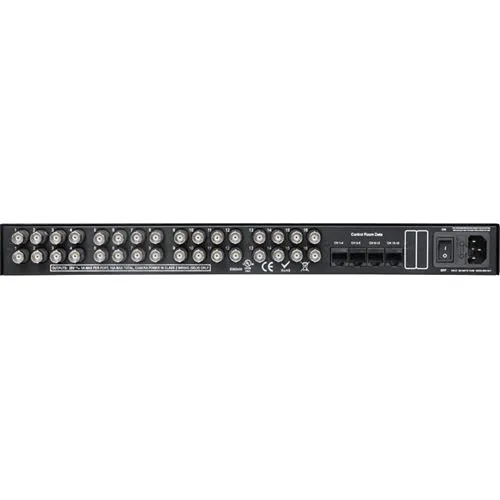

NVT Phybridge NV-16PS42-PVD 16-Channel Power Supply StubEQ Active Receiver Hub
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Consolidates power and video over a single Cat5 run to simplify installation and cut cabling costs
- Delivers Class 2 28VAC power at up to 1A per channel to support remote PTZ and camera loads without local power
- Provides full-motion CCTV video and telemetry to distances up to 1,500 ft using built-in StubEQ equalization for clear, reliable images
- Individual floating outputs and transient/fault protection eliminate ground-loop noise and reduce downtime
- On-board diagnostics and dual video outputs per channel make troubleshooting and integration with DVRs or IP encoders fast and easy
Quick Specifications
- Product Model
- NV-16PS42-PVD
- Brand Name
- NVT Phybridge
- Product Name
- 16-Channel Power Supply StubEQ Active Receiver Hub
- Product Type
- Video Extender Receiver
Explore the details
Product information
NV-16PS42-PVD
Overview
Consolidate your security infrastructure and simplify deployments with the NVT Phybridge NV-16PS42-PVD 16-Channel Power Supply StubEQ Active Receiver Hub. Designed for IDF/MDF or telecom closets, this NVT Phybridge power supply delivers Class 2 SELV 28 VAC power at up to 1 A per channel while simultaneously receiving full-motion CCTV video and P/T/Z telemetry over a single 4-pair Cat5 cable. Support cameras at distances up to 1,500 ft and feed video directly to DVRs or IP encoders using the built-in StubEQ receiver and dual video outputs. Automatic two-band StubEQ equalization removes the need for manual adjustment, ensuring consistent image quality across installations. Individually floating outputs, automatic-reset fault protection and transient suppression protect equipment and provide ground-loop immunity for uninterrupted monitoring. The NV-16PS42-PVD speeds installation, reduces rack clutter and lowers total cost of ownership for enterprise, retail and transportation surveillance projects. Backed by UL listings and NVT’s limited lifetime warranty, it’s a practical choice for reliable security and monitoring systems. Contact your distributor or add to cart to upgrade your CCTV infrastructure today.
Features
- Consolidates power and video over a single Cat5 run to simplify installation and cut cabling costs
- Delivers Class 2 28VAC power at up to 1A per channel to support remote PTZ and camera loads without local power
- Provides full-motion CCTV video and telemetry to distances up to 1,500 ft using built-in StubEQ equalization for clear, reliable images
- Individual floating outputs and transient/fault protection eliminate ground-loop noise and reduce downtime
- On-board diagnostics and dual video outputs per channel make troubleshooting and integration with DVRs or IP encoders fast and easy
| General Information | |
|---|---|
| Brand Name | NVT Phybridge |
| Manufacturer | Phybridge, Inc |
| Product Name | 16-Channel Power Supply StubEQ Active Receiver Hub |
| Product Type | Video Extender Receiver |
| Product Model | NV-16PS42-PVD |
| Manufacturer Part Number | NV-16PS42-PVD |
| Technical Information | |
| Cable Type | Category 5 |
| Media Type Supported | Twisted Pair |
| Connectivity Technology | Wired |
| Maximum Operating Distance | 1500' |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Number of Network (RJ-45) Ports | 4 |
| Physical Characteristics | |
| Color | Black |
| Depth | 12.00" |
| Width | 19.00" |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS, WEEE |
