Crown NXLS1002-0-US XLS 1002 2-Channel Power Amplifier, 350W at Ohm

SKU: NXLS1002-0-US Crown by Harman
Crown XLS 1002 Amplifier - 700 W RMS - 2 Channel - Black

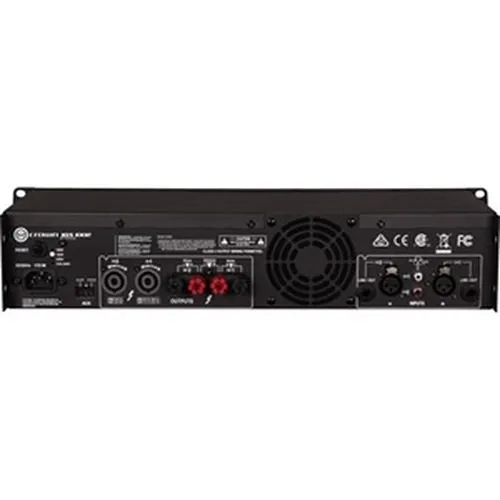

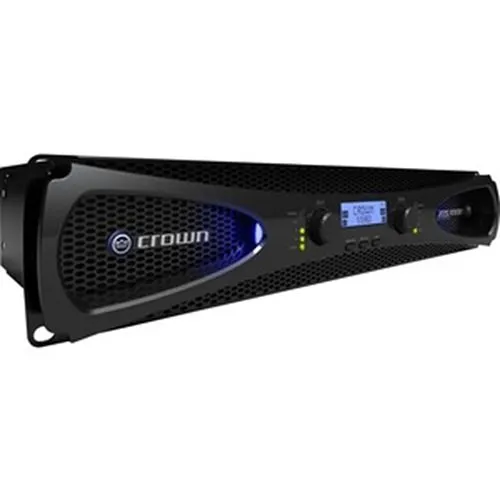

Product images for Crown NXLS1002-0-US XLS 1002 2-Channel Power Amplifier, 350W at Ohm. 3 image(s) available. Click on image to view full size.

Key Features

  • Delivers powerful, clean audio—350W per channel into 8 Ω (700W total) for clear paging and PA announcements without distortion
  • Ultra-efficient DriveCore Class D design reduces heat and power draw (175W typical), lowering operating costs and rack cooling needs
  • Compact, lightweight 2-channel form factor (8.6 lb) for easy rack mounting, portable installs and tight AV/security closets
  • Built-in DSP, Peakx limiters and selectable input sensitivity protect speakers while giving precise control for surveillance, monitoring and paging systems
  • Flexible I/O and security features (XLR/TRS/RCA inputs, remote power trigger, menu lock) simplify integration into pro AV and security networks

Quick Specifications

Product Model
XLS 1002
Brand Name
Crown by Harman
Product Line
XLS DriveCore 2
Product Name
XLS 1002 Amplifier
View Full Technical Specifications

Explore the details

Product information

NXLS1002-0-US

Overview

Engineered for pro AV and security professionals, the Crown by Harman XLS 1002 2-channel power amplifier gives you dependable, high-impact audio for paging, monitoring and surveillance applications. This DriveCore-equipped Class D amplifier delivers 350W per channel into 8 Ω (700W total) so announcements, alarms and background music come through cleanly with low distortion. Its efficient design keeps operating power low (about 175W typical), reducing heat in equipment racks and cutting energy cost for continuous security deployments.

The XLS 1002 pairs pro-grade DSP, Peakx™ limiting and selectable input sensitivity to protect speakers and provide tailored sound for control rooms, retail security paging or campus monitoring. A larger LCD, remote power trigger and menu lock make it simple to set up, secure and maintain in multi-site installations. At just 8.6 lb and rack-friendly dimensions, it’s easy to install in confined racks or mobile units.

Choose the Crown XLS 1002 when you need reliable, high-efficiency amplification for surveillance, security, and AV systems—contact us to specify or order for your next install.

Features

  • Delivers powerful, clean audio—350W per channel into 8 Ω (700W total) for clear paging and PA announcements without distortion
  • Ultra-efficient DriveCore Class D design reduces heat and power draw (175W typical), lowering operating costs and rack cooling needs
  • Compact, lightweight 2-channel form factor (8.6 lb) for easy rack mounting, portable installs and tight AV/security closets
  • Built-in DSP, Peakx limiters and selectable input sensitivity protect speakers while giving precise control for surveillance, monitoring and paging systems
  • Flexible I/O and security features (XLR/TRS/RCA inputs, remote power trigger, menu lock) simplify integration into pro AV and security networks
26 of 26 specifications
Technical specifications for Crown NXLS1002-0-US XLS 1002 2-Channel Power Amplifier, 350W at Ohm
General Information
Brand Name Crown by Harman
Manufacturer Harman International Industries, Inc
Product Line XLS DriveCore 2
Product Name XLS 1002 Amplifier
Product Type Amplifier
Product Model XLS 1002
Product Series CDi
Manufacturer Part Number NXLS1002-0-US
Technical Information
Impedance 8 ohms
Audio Channels 2
Classification D
Audio
RMS Output Power 700W
Maximum Frequency Response 20 kHz
Minimum Frequency Response 20Hz
Total Harmonic Distortion (THD) 0.5%
Certifications
TAA Compliant No
Energy & Performance
Operating Power Consumption 175W
Physical Characteristics
Color Black
Depth 7.7"
Width 19"
Height 3.5"
Weight 8.60 lb
Warranty
Limited Warranty 1-Year
Miscellaneous
Country of Origin CN
Environmentally Friendly Yes
Environmental Certification WEEE
