Crown NXLS1502-0-US XLS 1502 DriveCore Series 2-Channel Power Amplifier, 525W at Ohm
Image of 3
Key Features
- Powerful, clear reinforcement: Delivers dual-channel output (525W per channel, 1050W total) to provide clean headroom for PA, AV and surveillance monitoring applications.
- Lightweight, rack-ready design: At under 9 lbs the XLS 1502 is easy to install and service in equipment racks or remote security/monitoring enclosures.
- DriveCore efficiency: Crown DriveCore 2 Class-D technology reduces heat and power draw while maintaining audio fidelity for 24/7 security and public‑address systems.
- Built-in DSP and protection: Onboard DSP, Peakx™ limiters and selectable input sensitivity protect speakers and maintain intelligible speech for paging and monitoring.

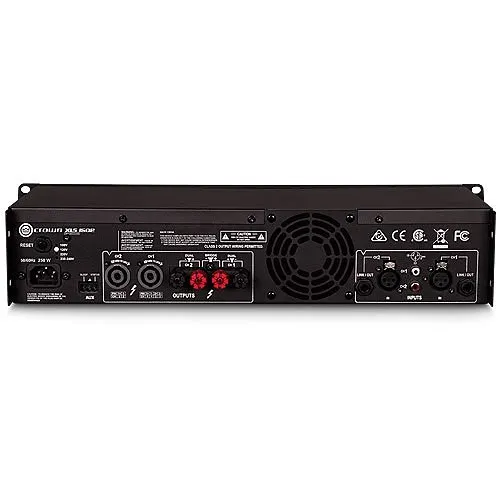

- Flexible connectivity and control: XLR, 1/4" and RCA inputs, remote trigger, large LCD and lockable menu provide easy integration and secure operation in pro AV and surveillance systems.
Quick Specifications
- Product Model
- 1502
- Brand Name
- Crown by Harman
- Product Line
- XLS DriveCore 2
- Product Name
- XLS DriveCore 2 1502 Amplifier
Explore the details
Product information
NXLS1502-0-US
Overview
When clear, reliable audio matters — from live sound to security monitoring rooms — the Crown by Harman XLS 1502 DriveCore 2 pro amplifier delivers professional-grade power and control. This two-channel amplifier offers 525W per channel (1050W total RMS) with 2‑ohm stability and a wide 20 Hz–20 kHz frequency response, giving you the headroom needed for intelligible paging, music playback and loudspeaker arrays. Crown's DriveCore Class-D technology keeps the unit ultra-efficient and lightweight, reducing rack heat and ongoing power costs for 24/7 surveillance and monitoring deployments.
Operators benefit from expanded DSP, Peakx™ limiting and selectable input sensitivity to protect speakers and optimize gain structure across AV, security and broadcast systems. The larger LCD, menu lock and dimmable LEDs keep setup fast and unobtrusive in control rooms, houses of worship, and corporate environments. With versatile XLR, 1/4" and RCA inputs plus remote power triggering, the XLS 1502 integrates seamlessly into pro audio and surveillance infrastructures. Choose the XLS 1502 to upgrade audio clarity and reliability in your security, monitoring or pro AV installation.
Features
- Powerful, clear reinforcement: Delivers dual-channel output (525W per channel, 1050W total) to provide clean headroom for PA, AV and surveillance monitoring applications.
- Lightweight, rack-ready design: At under 9 lbs the XLS 1502 is easy to install and service in equipment racks or remote security/monitoring enclosures.
- DriveCore efficiency: Crown DriveCore 2 Class-D technology reduces heat and power draw while maintaining audio fidelity for 24/7 security and public‑address systems.
- Built-in DSP and protection: Onboard DSP, Peakx™ limiters and selectable input sensitivity protect speakers and maintain intelligible speech for paging and monitoring.
- Flexible connectivity and control: XLR, 1/4" and RCA inputs, remote trigger, large LCD and lockable menu provide easy integration and secure operation in pro AV and surveillance systems.
| General Information | |
|---|---|
| Brand Name | Crown by Harman |
| Manufacturer | Harman International Industries, Inc |
| Product Line | XLS DriveCore 2 |
| Product Name | XLS DriveCore 2 1502 Amplifier |
| Product Type | Amplifier |
| Product Model | 1502 |
| Product Series | XLS |
| Manufacturer Part Number | NXLS1502-0-US |
| Technical Information | |
| Impedance | 2 ohms |
| Audio Channels | 2 |
| Audio | |
| RMS Output Power | 1050W |
| Maximum Frequency Response | 20 kHz |
| Minimum Frequency Response | 20Hz |
| Certifications | |
| TAA Compliant | No |
| Energy & Performance | |
| Operating Power Consumption | 250W |
| Physical Characteristics | |
| Color | Black |
| Depth | 7.7" |
| Width | 19" |
| Height | 3.5" |
| Weight | 8.60 lb |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | WEEE |
