Speco O2IBD5 Box IP Camera
Key Features
- Discreet board form factor fits tight enclosures for covert surveillance and discreet monitoring
- Intensifier low-light technology delivers full-color 1080p (2MP) video where traditional cameras go monochrome
- PoE-enabled network power and data over one cable simplifies installation and reduces labor costs
- Two-way audio and microSD support enable local recording and on-site communication or evidence capture
- ONVIF Profile S compatibility ensures seamless integration with NVRs and third-party security systems
Quick Specifications
- Product Model
- O2IBD5
- Brand Name
- Speco Technologies
- Product Line
- Intensifier
- Product Name
- 2MP Intensifier Board IP Camera
Explore the details
Product information
O2IBD5
Overview

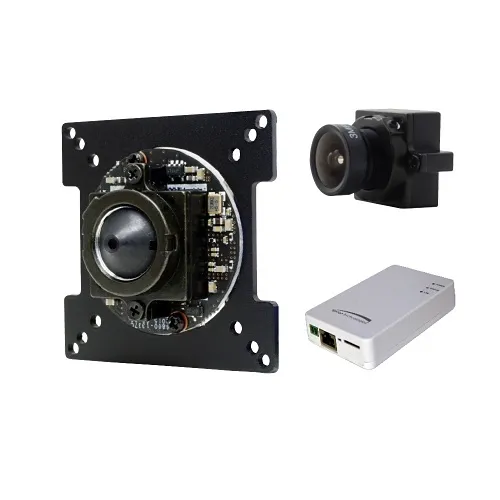

Deploy reliable, covert security where space is limited. The Speco Technologies O2IBD5 2MP Intensifier board IP camera is engineered for discreet surveillance and monitoring in tight enclosures, drop ceilings, kiosks, or specialty housings. With a 2MP 1080p sensor and Intensifier low-light processing, the camera captures color video down to 0.1 lux, improving identification and situational awareness in challenging lighting. Integrated PoE simplifies installation by carrying power and data on a single Ethernet run, reducing cabling and installation time for integrators. The O2IBD5 supports two-way audio and local microSD recording for flexible evidence capture, and ONVIF Profile S compliance allows easy integration with most NVRs and VMS platforms. Available with a 2.8mm board lens and a 3.6mm pinhole option, this compact board camera provides an 86° horizontal field of view for versatile coverage. Backed by a 5-year limited warranty, the O2IBD5 is a dependable choice for retail, banking, transportation, and facility security projects. Specify the Speco O2IBD5 for discreet, high-quality surveillance—contact sales or add to your system design today.
Features
- Discreet board form factor fits tight enclosures for covert surveillance and discreet monitoring
- Intensifier low-light technology delivers full-color 1080p (2MP) video where traditional cameras go monochrome
- PoE-enabled network power and data over one cable simplifies installation and reduces labor costs
- Two-way audio and microSD support enable local recording and on-site communication or evidence capture
- ONVIF Profile S compatibility ensures seamless integration with NVRs and third-party security systems
| General Information | |
|---|---|
| Brand Name | Speco Technologies |
| Product Line | Intensifier |
| Product Name | 2MP Intensifier Board IP Camera |
| Product Type | IP Camera |
| Product Model | O2IBD5 |
| Product Series | Intensifier |
| Application/Usage | Commercial Security, Education, Retail, Warehouses |
| Country of Origin | KR |
| Manufacturer Part Number | O2IBD5 |
| Technical Information | |
| Lens Type | Fixed |
| Aspect Ratio | 16:9 |
| Night Vision | No |
| Field of View | Horizontal, Vertical |
| Video Formats | H.265 Baseline Profile, H.265 High Profile, H.265 Main Profile, MJPEG |
| Maximum Aperture | f/1.4 |
| Maximum Frame Rate | 30fps |
| Wide Dynamic Range | Yes |
| Field of View (Vertical) | 86.00° |
| Effective Camera Resolution | 2MP |
| Audio | |
| Video Encoding | H.265 (HEVC), MJPEG |
| Camera | |
| Camera Type | IP Camera |
| Image Sensor Type | CMOS |
| Certifications | |
| NDAA Compliant | Yes |
| Display & Graphics | |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 0-90% |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | 14°F |
| Exposure | |
| Minimum Illumination | 0.1000lux |
| Longest Shutter Speed | 1/30 s |
| Shortest Shutter Speed | 1/10000 s |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Memory | |
| SD Card Slot | Yes |
| Network & Communication | |
| Ethernet Technology | 10 Mbps (Ethernet), 100 Mbps (Fast Ethernet) |
| Physical Characteristics | |
| Color | Black |
| Depth | 4.21" |
| Width | 2.59" |
| Height | 1.24" |
| Weight | 4.00oz |
| Form Factor | Board |
| Power Description | |
| Input Voltage | 12V DC |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | O2IBD3, O2IBD4 |
| Video | |
| Graphics Mode | Full HD |
| Maximum Resolution | 1920 x 1080 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
