Cypress OSM-HUB OSDP Test Hub with Pluggable Terminal Blocks with Connections for OSDP Data and Power

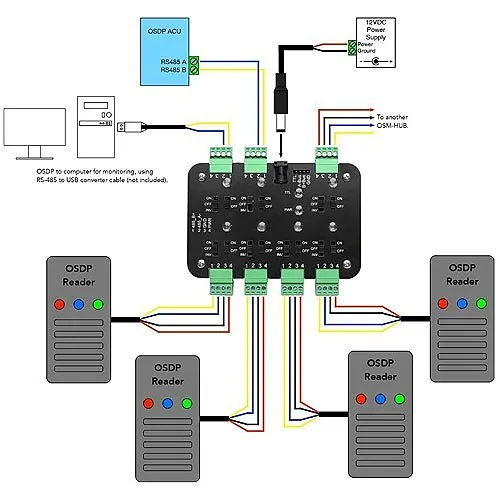

Speed up and simplify OSDP device commissioning and troubleshooting with the Cypress OSM-HUB OSDP test hub. This OSDP interface hub from Cypress is built for access control, security and surveillance professionals who need a reliable, repeatable test platform. With seven pluggable terminal-block ports that provide both OSDP data and power, you can plug readers and peripherals in and out without messy wire nuts or large busbars. Each port features independent power and data switches — including polarity inversion — so you can isolate faults, toggle power, or reverse RS-485/OSDP lines on the fly.

Status LEDs include a TTL traffic indicator for network activity and Port PWR/HUB PWR indicators for immediate power verification. A convenient barrel-plug DC input powers all ports, and DIN-rail mounting keeps the hub tidy in control cabinets and test benches. Compatible with OSDP devices, access control units, and RS-485 monitoring setups, the OSM-HUB is a practical tool for installers, integrators, and service technicians. Add the Cypress OSM-HUB to your toolkit to accelerate deployment, diagnostics, and maintenance of security and monitoring systems.

• Streamlines OSDP device testing by centralizing connections into one compact hub, reducing setup time on access control and security installs
• Seven pluggable terminal-block ports with per-port power and data control for fast device swaps without rewiring
• Integrated power input (barrel plug) and Port PWR LEDs let you power multiple readers/peripherals from a single source and verify power at a glance
• Per-port switches to disable power or invert OSDP data polarity, enabling safe troubleshooting and polarity correction without disconnecting devices
• Traffic TTL LED and DIN-rail mount for easy monitoring and clean installation in control cabinets and test racks
