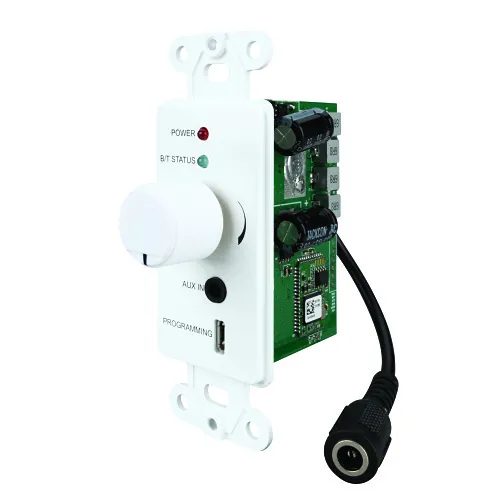

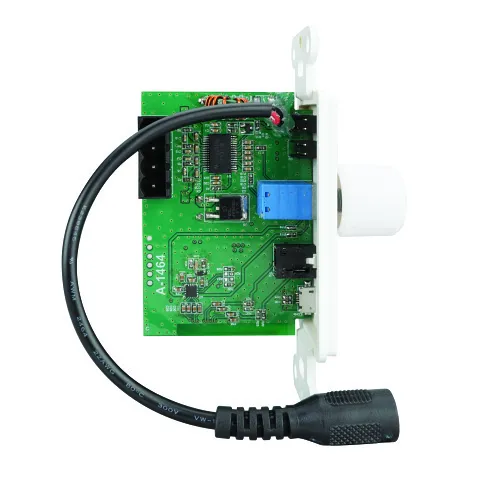

PulseAudio PA230BWA 2-Channel In-Wall Addressable Bluetooth Amplifier, 30W

SKU: PA230BWA PulseAudio
Image of ZX-PA230BWA
Product images for PulseAudio PA230BWA 2-Channel In-Wall Addressable Bluetooth Amplifier, 30W. 4 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Discreet in-wall design provides hidden, professional-grade audio for paging, background music and security notifications
  • 2 x 30W Class D amplification delivers reliable, energy-efficient audio coverage for small-to-medium zones
  • Bluetooth v5.0 with aptX and 3.5mm input enables high-quality wireless streaming from smartphones and local sources
  • Fits a single-gang low-voltage box and includes 24V power supply for fast, low-profile installation and reduced labor time
  • Auto source switching with Bluetooth priority and programmable ID/password support secure multi-zone integration in surveillance and monitoring systems
  • 2-year limited warranty ensures long-term reliability for commercial and security installations

Quick Specifications

Product Model
PA230BWA
Brand Name
PulseAudio
Product Name
PA230BWA Bluetooth Wall Plate Amplifier
Product Type
Audio Control Device
View Full Technical Specifications

Frequently Bought Together

Explore the details

Product information

PA230BWA

Overview

Bring clean, dependable audio to discreet locations with the PulseAudio PA230BWA 2-Channel In-Wall Addressable Bluetooth Amplifier. Designed for integrators and facility managers, this wall-plate amplifier makes it simple to add paging, background music or security audio into retail, corporate and surveillance environments without bulky equipment. The PA230BWA delivers 2 x 30W of Class D amplification for consistent, low-distortion sound and supports Bluetooth v5.0 with apt-X for high-quality wireless streaming from smartphones and AV sources. Its single-gang low-voltage footprint and included 24V, 1.5A power supply speed installation and minimize wall space, while 4Ω/8Ω stability and auto source switching (Bluetooth priority) provide flexibility for multiple use cases. Programmable ID and password through dedicated software allow secure addressable control in multi-zone monitoring, paging and security systems. Lightweight and compact, the unit is ideal for discreet amplification where audio reliability matters. Upgrade your next security, retail or corporate AV project with the PulseAudio PA230BWA—contact your sales rep or order now to integrate clean, controllable audio into your monitoring and surveillance workflows.

Features

  • Discreet in-wall design provides hidden, professional-grade audio for paging, background music and security notifications
  • 2 x 30W Class D amplification delivers reliable, energy-efficient audio coverage for small-to-medium zones
  • Bluetooth v5.0 with aptX and 3.5mm input enables high-quality wireless streaming from smartphones and local sources
  • Fits a single-gang low-voltage box and includes 24V power supply for fast, low-profile installation and reduced labor time
  • Auto source switching with Bluetooth priority and programmable ID/password support secure multi-zone integration in surveillance and monitoring systems
  • 2-year limited warranty ensures long-term reliability for commercial and security installations
18 of 18 specifications
Technical specifications for PulseAudio PA230BWA 2-Channel In-Wall Addressable Bluetooth Amplifier, 30W
General Information
Brand Name PulseAudio
Manufacturer Vanco International, Inc
Product Name PA230BWA Bluetooth Wall Plate Amplifier
Product Type Audio Control Device
Country of Origin TW
Manufacturer Part Number PA230BWA
Technical Information
Impedance 8Ohm
Audio Channels 2
Smartphone Compatible Yes
Certifications
TAA Compliant Yes
Physical Characteristics
Depth 3.20"
Width 3.20"
Height 1.60"
Weight 0.80lb
Product Information
Length 4.40"
Product Replacements & Other Alternatives
Model Number Replaces PA230WP
Warranty
Limited Warranty 2-Year
Miscellaneous
Package Contents PA230BWA Bluetooth Wall Plate Amplifier, Single Gang White Decora Wall Plate with Screws, 24V Power Supply, Micro USB to USB A Cable, Product Manual
