AtlasIED PA601 Single Channel, 60W Power Amplifier

SKU: PA601 AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Atlas Sound Strategy PA601 Amplifier - 60 W RMS - 1 Channel

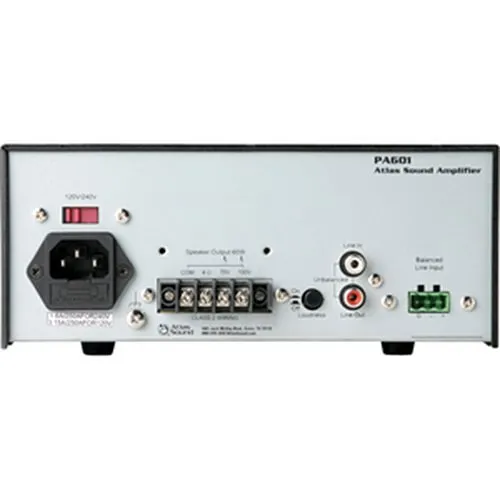

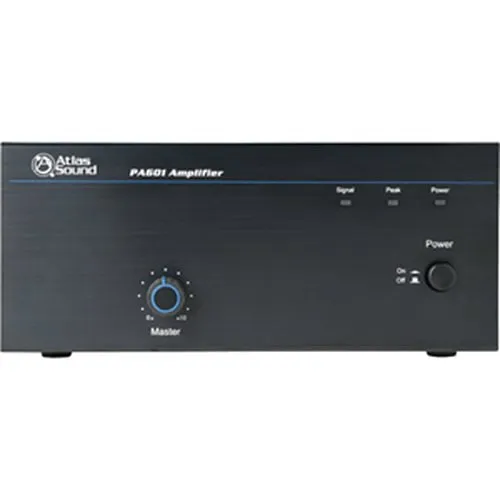

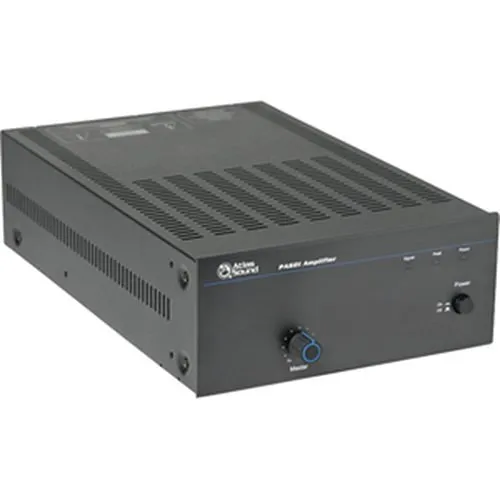

Product images for AtlasIED PA601 Single Channel, 60W Power Amplifier. 4 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Reliable 60W single-channel amplification for consistent background music, paging and security audio without complexity
  • Simple integration with balanced Phoenix and unbalanced RCA inputs — saves installation time in commercial and surveillance environments
  • Front-panel volume and rack-mountable chassis for easy control and clean, professional system installation
  • Switchable 110/220V operation and screw-terminal speaker outputs for flexible international deployment and robust speaker connections
  • Low distortion performance (0.5% THD) and RoHS compliance for clear audio and environmentally responsible installations

Quick Specifications

Product Model
PA601
Brand Name
AtlasIED
Product Line
Strategy
Product Name
PA601 60 Watt Single Channel Power Amplifier
View Full Technical Specifications

Explore the details

Product information

PA601

Overview

Deliver dependable, no-frills amplification for distributed background music (BGM), paging and security audio with the AtlasIED PA601 single-channel power amplifier. Designed as a pro amplifier for small-to-medium commercial installations, the PA601 provides 60W RMS into 4 ohm loads and a focused 50 Hz–20 kHz response to keep voice and music intelligible across retail, office, or monitoring environments. Installers benefit from balanced Phoenix and unbalanced RCA inputs plus an unbalanced line output for easy daisy-chaining to other equipment. The front-panel volume control, rack-mountable form factor, and screw-terminal speaker outputs streamline deployments for surveillance, paging and building-wide audio systems. Switchable 110/220 VAC operation and NDAA compliance make it a versatile choice for international and secure installations. Backed by a 36-month limited warranty and low total harmonic distortion, the PA601 is ideal for integrators seeking reliable amplification for security, monitoring and public address applications. Add the AtlasIED PA601 to your next project to simplify audio distribution — contact sales or order online for fast delivery.

Features

  • Reliable 60W single-channel amplification for consistent background music, paging and security audio without complexity
  • Simple integration with balanced Phoenix and unbalanced RCA inputs — saves installation time in commercial and surveillance environments
  • Front-panel volume and rack-mountable chassis for easy control and clean, professional system installation
  • Switchable 110/220V operation and screw-terminal speaker outputs for flexible international deployment and robust speaker connections
  • Low distortion performance (0.5% THD) and RoHS compliance for clear audio and environmentally responsible installations
26 of 26 specifications
Technical specifications for AtlasIED PA601 Single Channel, 60W Power Amplifier
General Information
Brand Name AtlasIED
Manufacturer AtlasIED
Product Line Strategy
Product Name PA601 60 Watt Single Channel Power Amplifier
Product Type Amplifier
Product Model PA601
Country of Origin TW
Manufacturer Part Number PA601
Technical Information
Impedance 4.00O
Audio Channels 1
Audio
Maximum Frequency Response 20.0kHz
Minimum Frequency Response 50.0000Hz
Total Harmonic Distortion (THD) 0.1% – 0.5%
Certifications
TAA Compliant No
NDAA Compliant Yes
Energy & Performance
Operating Power Consumption 144.00W
Interfaces/Ports
Number of Audio Inputs 2
Physical Characteristics
Depth 14.00"
Width 8.30"
Height 3.70"
Weight 14.00lb
Power Description
Input Voltage 110V AC, 220V AC
Warranty
Limited Warranty 36-Month
Miscellaneous
Features 60W Power Amplifier, Balanced Phoenix and Unbalanced RCA Inputs, Easy Adjustment, Front-Panel Volume Control, Rack Mountable, Screw Terminal Speaker Outputs, Switchable Voltage for International Use, Unbalanced RCA Line Output
Environmentally Friendly Yes
Environmental Certification RoHS

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
PA601
Manufacturer part:
PA601
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
