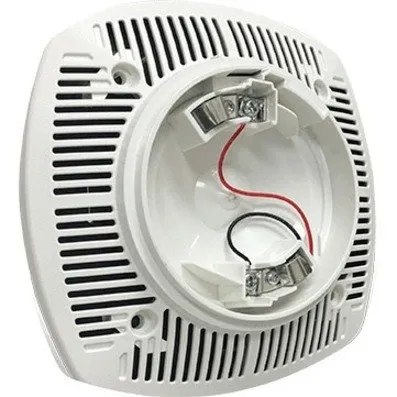

Potter PAD100-LFSB Addressable Low Frequency Sounder Base

Designed for reliable occupant notification and streamlined installation, the Potter PAD100-LFSB Addressable Low Frequency Sounder Base provides code-compliant low-frequency signaling for modern fire and life-safety systems. As a product from Potter Electric Signal, LLC, this detector base integrates an addressable sounder module that reproduces the control panel’s sound patterns and meets the NFPA 72/UL 464 low-frequency (520 Hz) requirement. With a selectable 85 dB output and support for 18–12 AWG terminations and Class A/X/B wiring, the PAD100-LFSB reduces install time and simplifies wiring for contractors. Because it uses PAD sub-point addressing rather than an SLC loop address, it preserves loop capacity and can be mapped to any device or the AFC-50 control panel for targeted or all-call activation. Ideal for security, surveillance, and centralized monitoring environments, the unit enhances audible notification while easing maintenance thanks to a removable head and field-lock option. Specify the PAD100-LFSB for healthcare, education, and commercial projects needing reliable low-frequency alerting — contact sales to add it to your next fire alarm or monitoring system.

• Ensures intelligible, code-compliant notification with a 520 Hz low-frequency tone for improved occupant response and ADA/NFPA 72 compliance
• Flexible activation options (single station, grouped, or all-call) let you tailor alerts to zones or whole-building scenarios for precise monitoring and reduced nuisance alarms
• Uses PAD sub-point addressing so it does not consume an SLC loop address, simplifying system design and conserving loop capacity
• Robust field wiring support (18–12 AWG, Class A/X/B) and a removable locking sensor head make installation and maintenance faster for installers and service teams
• Built-in 85 dB sound output provides dependable audible coverage for commercial, healthcare, education, and security-sensitive environments
