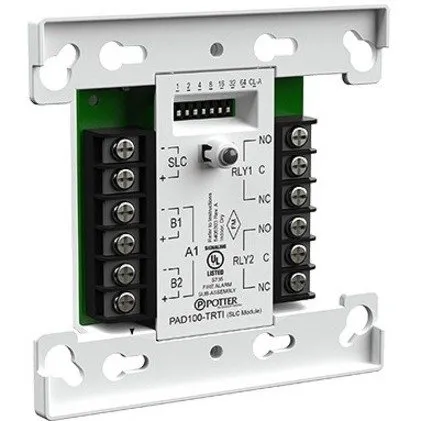

Potter PAD100-TRTI Relay Input Module
Image of 2
Key Features
- Simplifies installation and panel programming by using a single SLC loop address to monitor two inputs and two relays
- Reduces field wiring and labor by supporting two Class B circuits or one Class A circuit for sprinkler and tamper monitoring
- Provides two Form C relay contacts for reliable integration with building control, notification, and security systems
- Surface-mount gang-box design and 22–12 AWG terminals deliver flexible mounting and easy access to wiring on site
- Visual LED status indicator and UUKL listing ensure clear on-site diagnostics and compliance for smoke control applications
- Backed by a 5-year warranty for long-term reliability in commercial fire and security environments
Quick Specifications
- Product Model
- PAD100-TRTI
- Brand Name
- Potter Electric Signal, LLC
- Product Name
- Two Relay Two Input Module
- Product Type
- Two-relay/Two-input Module
Frequently Bought Together
Potter PAD100-TRTI Relay Input Module
$275.26
$117.54
8 items selected
Total: $983.69
Explore the details
Product information
PAD100-TRTI
Overview
Designed to simplify fire and security system integrations, the Potter PAD100-TRTI relay input module delivers dependable monitoring and control for sprinkler waterflow, valve tamper switches and conventional pull stations. This Potter Electric Signal, LLC two-relay/two-input module uses a single SLC loop address while monitoring two Class B circuits (or one Class A), reducing panel addresses and streamlining programming. Two Form C relay contacts provide dry-contact outputs for alarm management, suppression systems, or building automation interfaces, while an on-board LED gives fast visual confirmation of device polling and alarm activity.
Engineered for installers, the PAD100-TRTI mounts in a standard 4" square or double gang box and accepts 22–12 AWG wiring for quick field termination. Compatibility with Potter IPA and AFC/ARC addressable panels, UUKL listing for smoke control, and a 5-year warranty make it a practical choice for commercial fire alarm, security and monitoring projects. For reliable, compact relay input performance in your next surveillance or fire protection deployment, specify the PAD100-TRTI or contact sales to order.
Features
- Simplifies installation and panel programming by using a single SLC loop address to monitor two inputs and two relays
- Reduces field wiring and labor by supporting two Class B circuits or one Class A circuit for sprinkler and tamper monitoring
- Provides two Form C relay contacts for reliable integration with building control, notification, and security systems
- Surface-mount gang-box design and 22–12 AWG terminals deliver flexible mounting and easy access to wiring on site
- Visual LED status indicator and UUKL listing ensure clear on-site diagnostics and compliance for smoke control applications
- Backed by a 5-year warranty for long-term reliability in commercial fire and security environments
| General Information | |
|---|---|
| Brand Name | Potter Electric Signal, LLC |
| Manufacturer | Potter Electric Signal, LLC |
| Product Name | Two Relay Two Input Module |
| Product Type | Two-relay/Two-input Module |
| Product Model | PAD100-TRTI |
| Application/Usage | Conventional Pull Station, Fire Alarm Control Panel, Heat Detector, Valve Tamper Switch, Waterflow Switch |
| Manufacturer Part Number | PAD 100-TRTI |
| Environmental Conditions | |
| Relative Humidity | 0.93 |
| Maximum Operating Temperature | 120°F |
| Minimum Operating Temperature | 32°F |
| Physical Characteristics | |
| Color | Red |
| Depth | 1.10" |
| Width | 4.20" |
| Form Factor | Gang Box Mount |
| Product Information | |
| Mount Type | Gang Box Mount |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | LED Indicator |
| Compatibility | Potter IPA and AFC/ARC series addressable fire alarm control panels |
