Vanco PAEXEARC Digital Audio Extender with eARC
Image of 7
Key Features
- Transmit lossless eARC/ARC audio up to 328' (100m) over a single CAT5e/6 cable to avoid long HDMI runs and simplify installations
- Built-in optical fallback extends SPDIF audio up to 656' (200m) for reliable remote monitoring and surveillance audio
- SPDIF and HDMI outputs remain active for flexible integration with legacy and modern AV/security gear
- Bi-directional PoC (Power over Cable) lets you power the system from either end for neater racks and easier field installs
- CEC pass-through when eARC/ARC is selected maintains control and automation across distributed AV and security systems
Quick Specifications
- Product Model
- PAEXEARC
- Brand Name
- Vanco
- Product Name
- Digital Audio Extender with eARC
- Product Type
- Audio Extender
Frequently Bought Together
Vanco PAEXEARC Digital Audio Extender with eARC
$277.62
2 items selected
Total: $302.57
Explore the details
Product information
PAEXEARC
Overview

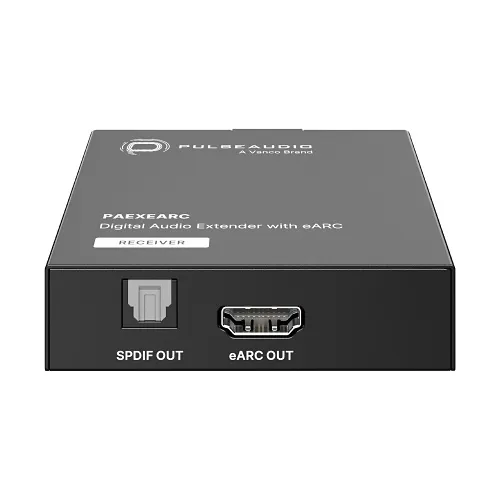

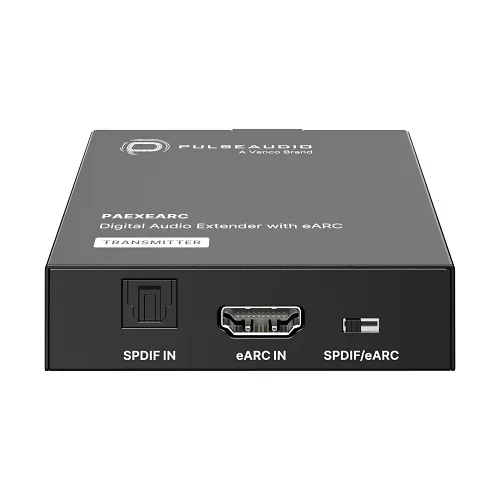

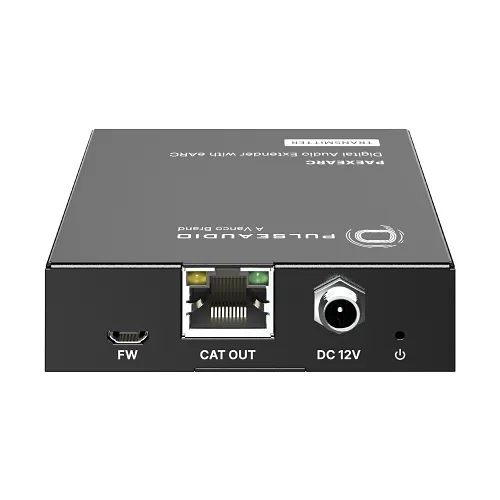

Deliver high-quality, lossless audio to distant displays and monitoring stations without running bulky HDMI cable runs. The Vanco PAEXEARC Digital Audio Extender with eARC is designed for AV integrators, security professionals and IT teams who need dependable audio distribution across long cable runs. Using a single CAT5e/6 cable it extends HDMI eARC/ARC audio up to 328' (100m), while an optical mode provides SPDIF audio up to 656' (200m) for remote surveillance and monitoring points. The receiver keeps both SPDIF and HDMI outputs active so you can mix legacy digital audio with modern eARC-enabled equipment, and CEC pass-through preserves remote control and automation when HDMI audio is selected. Bi-directional PoC simplifies installations by allowing power at either the TX or RX end—ideal for rack-mounted control rooms, retail audio distribution, and multi-zone security systems. Compact hardware, included mounting brackets, and a 12VDC power supply speed deployment. Deploy the Vanco PAEXEARC in your next AV, security, or surveillance project — order now or contact your integrator for a site-ready solution.
Features

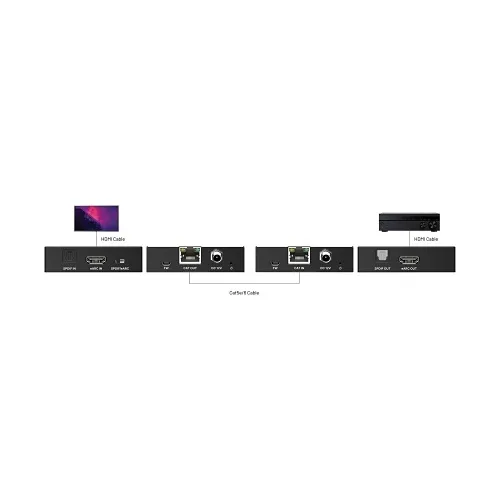

- Transmit lossless eARC/ARC audio up to 328' (100m) over a single CAT5e/6 cable to avoid long HDMI runs and simplify installations

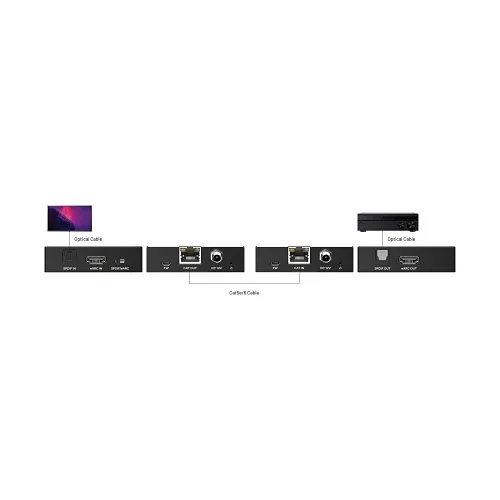

- Built-in optical fallback extends SPDIF audio up to 656' (200m) for reliable remote monitoring and surveillance audio
- SPDIF and HDMI outputs remain active for flexible integration with legacy and modern AV/security gear
- Bi-directional PoC (Power over Cable) lets you power the system from either end for neater racks and easier field installs
- CEC pass-through when eARC/ARC is selected maintains control and automation across distributed AV and security systems
| General Information | |
|---|---|
| Brand Name | Vanco |
| Product Name | Digital Audio Extender with eARC |
| Product Type | Audio Extender |
| Manufacturer Part Number | PAEXEARC |
| Technical Information | |
| Cable Type | Category 5e |
| Physical Characteristics | |
| Width | 2.91" |
| Height | 0.83" |
| Weight | 0.33lb |
| Power Description | |
| Frequency | 20-20 kHz |
| Product Information | |
| Length | 3.15" |
| Miscellaneous | |
| Package Contents | 1 x Digital audio extender set - TX and RX, 1 x Mounting brackets and screws, 1 x Power adapter (12VDC, 1A), 1 x Quick Start Guide |
