Alarm Controls PBM-1-1-L3-GR Plate Momentary Push Button Switch, 1 Normally Open, 1 Normally Closed
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 3
Key Features
- Provides immediate, momentary emergency activation so staff and responders can trigger door release only while the button is held
- Dual contact pair (1 NO, 1 NC) ensures compatibility with most security and monitoring systems for flexible integration
- IP65-rated stainless steel single-gang plate resists weather and vandalism for reliable outdoor or high-traffic use
- Screw-terminal wiring and standard single-gang form factor speed up installation and reduce on-site labor costs
- Broad operating temperature range (-77°F to 158°F) and UL environmental certification support demanding building and surveillance environments
Quick Specifications
- Product Model
- PBM-1-1-L3-GR
- Brand Name
- Alarm Controls by ASSA ABLOY
- Manufacturer Part Number
- PBM-1-1-L3-GR
Explore the details
Product information
PBM-1-1-L3-GR
Overview

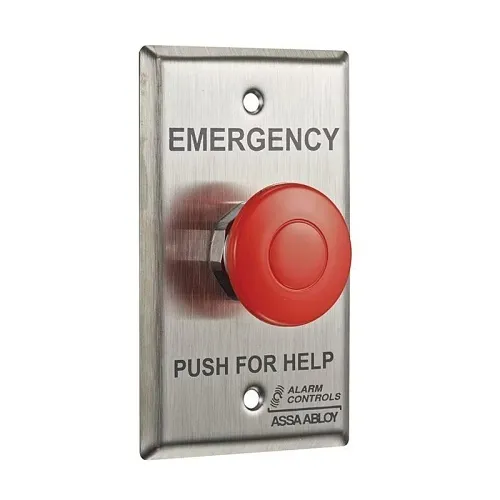

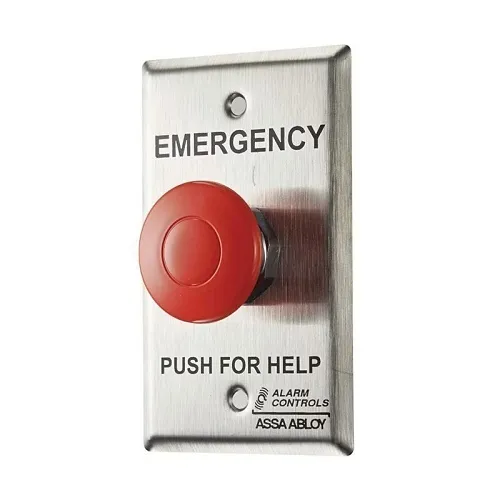

For quick, reliable emergency door release in commercial and institutional settings, the Alarm Controls PBM-1-1-L3-GR Plate Momentary Push Button Switch delivers rugged performance and easy integration. Designed by Alarm Controls (ASSA ABLOY), this single-gang door release button features a momentary mushroom actuator that remains active only while depressed, preventing accidental latch holds and ensuring deliberate activation during emergencies. The unit provides a normally-open and normally-closed contact pair (1 NO / 1 NC) for flexible connection to access control, security, and monitoring systems. Built from stainless steel with an IP65 weather-resistant rating, the plate stands up to outdoor exposure and high-traffic areas while the 120V AC power compatibility and wide operating temperature range (-77°F to 158°F) meet demanding site conditions. Clear “EMERGENCY PUSH FOR HELP” screening and an optional guard ring improve usability and reduce false presses in panic and supervision scenarios. Ideal for entrances, parking structures, medical facilities, and CCTV-monitored zones, the PBM-1-1-L3-GR simplifies installation and enhances system reliability. Add this Alarm Controls door release button to your security or surveillance deployment — contact sales or order now to secure faster emergency response.
Features
- Provides immediate, momentary emergency activation so staff and responders can trigger door release only while the button is held
- Dual contact pair (1 NO, 1 NC) ensures compatibility with most security and monitoring systems for flexible integration
- IP65-rated stainless steel single-gang plate resists weather and vandalism for reliable outdoor or high-traffic use
- Screw-terminal wiring and standard single-gang form factor speed up installation and reduce on-site labor costs
- Broad operating temperature range (-77°F to 158°F) and UL environmental certification support demanding building and surveillance environments
| General Information | |
|---|---|
| Brand Name | Alarm Controls by ASSA ABLOY |
| Manufacturer Part Number | PBM-1-1-L3-GR |
| Environmental Conditions | |
| Maximum Operating Temperature | 158°F |
| Minimum Operating Temperature | -77°F |
| Power Description | |
| Input Voltage | 120V AC |
| Miscellaneous | |
| Features | Custom plate marking available, Guard Ring, Momentary operation, Normally-open and normally-closed contact pair, Single gang wall plate with a stainless steel finish, Switch connection via screw terminals, Weather-proof to IP65 standards |
| Environmentally Friendly | Yes |
| Environmental Certification | UL |
