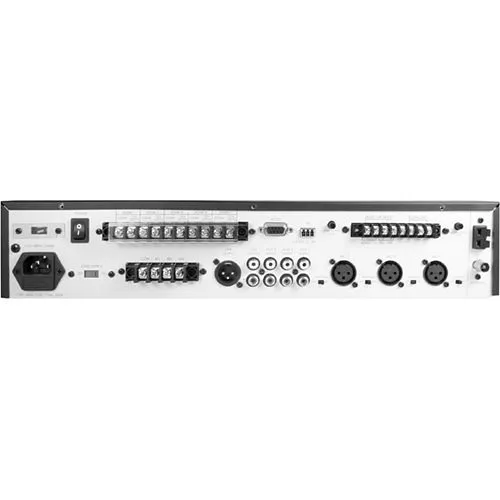

Speco PBM60A 60W RMS Amplifier

SKU: PBM60A Speco Technologies
Speco PBM60A Amplifier - 60 W RMS
Product images for Speco PBM60A 60W RMS Amplifier. 2 image(s) available. Click on image to view full size.

Key Features

  • Centralized, professional audio control for security and commercial sites with 5 configurable zones for targeted paging and background music
  • Reliable 60W RMS output with selectable 70V/25V taps to cover large areas without additional transformers
  • Phantom power and Mic1 priority simplify live paging and mic management for emergency announcements and intercoms
  • Rack-mountable design, IR remote and RS232 integration for easy installation and control in monitoring and surveillance rooms
  • Digital front panel lock and individual input volume controls protect settings while enabling instant adjustments for staff

Quick Specifications

Product Model
PBM60A
Brand Name
Speco Technologies
Product Name
PBM60A Amplifier
Product Type
Amplifier
View Full Technical Specifications

Explore the details

Product information

PBM60A

Overview

Bring dependable, flexible audio to your security, surveillance and commercial monitoring installations with the Speco Technologies PBM60A pro amplifier. Built for facilities that need clear paging, background music and emergency announcements, this 60W RMS amplifier delivers consistent power across 5 zoned outputs with selectable 70V or 25V taps to cover large or distributed speaker layouts. With eight inputs, phantom power on all mic channels and a selectable Mic1 priority, the PBM60A makes mic paging and live announcements simple and reliable. The unit includes master digital volume with display, individual input trims, front bass/treble control and a digital front panel lock to prevent unauthorized changes — ideal for control rooms and multi-room installations. Rack-mount hardware, an IR remote and RS232 control make integration into existing security and AV systems straightforward. Whether you are outfitting a surveillance operations center, retail site, school or industrial facility, the PBM60A provides flexible paging, music-on-hold and telephone paging I/O to keep communications clear and manageable. Add the Speco PBM60A to your system to streamline paging and monitoring workflows — order now.

Features

  • Centralized, professional audio control for security and commercial sites with 5 configurable zones for targeted paging and background music
  • Reliable 60W RMS output with selectable 70V/25V taps to cover large areas without additional transformers
  • Phantom power and Mic1 priority simplify live paging and mic management for emergency announcements and intercoms
  • Rack-mountable design, IR remote and RS232 integration for easy installation and control in monitoring and surveillance rooms
  • Digital front panel lock and individual input volume controls protect settings while enabling instant adjustments for staff
23 of 23 specifications
Technical specifications for Speco PBM60A 60W RMS Amplifier
General Information
Brand Name Speco Technologies
Product Name PBM60A Amplifier
Product Type Amplifier
Product Model PBM60A
Country of Origin CN
Manufacturer Part Number PBM60A
Technical Information
Impedance 16Ohm
Audio Channels 5
Audio
RMS Output Power 60W
Maximum Frequency Response 20kHz
Minimum Frequency Response 50Hz
Energy & Performance
Operating Power Consumption 100W
Interfaces/Ports
Number of Audio Inputs 8
Physical Characteristics
Color Black
Depth 11.80"
Width 16.90"
Height 3.40"
Weight 20.00lb
Power Description
Input Voltage 115V AC
Miscellaneous
Features 5 zoned 70 or 25V speaker outputs (240W - 70V only), Digital front panel lock, Front bass and treble controls, Includes IR remote and rack-mounting kit, Individual volume control for each input, Master digital volume control with display, NDAA Compliant, Non-zoned 4/8/16 Ohms output (No 16 Ohms on 240W), Phantom power for all Mic inputs, and Mic1 selectable priority paging, RCA or XLR line output, RS232 input for integration with popular control systems, Telephone paging input and Music-on-hold output
Package Contents PBM60A Amplifier IR remote Rack-mounting kit
Environmentally Friendly Yes
Environmental Certification RoHS
