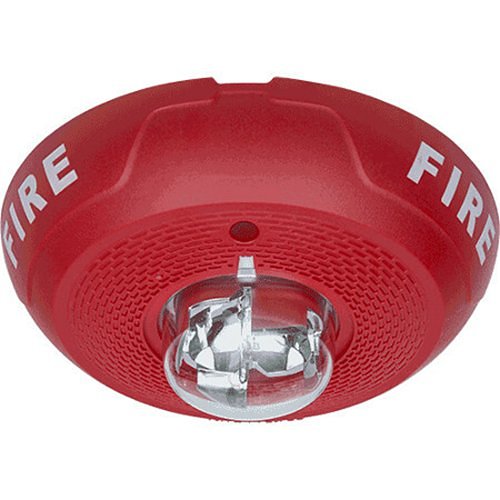

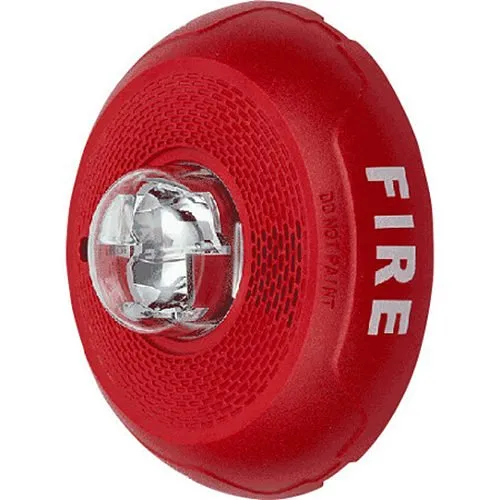

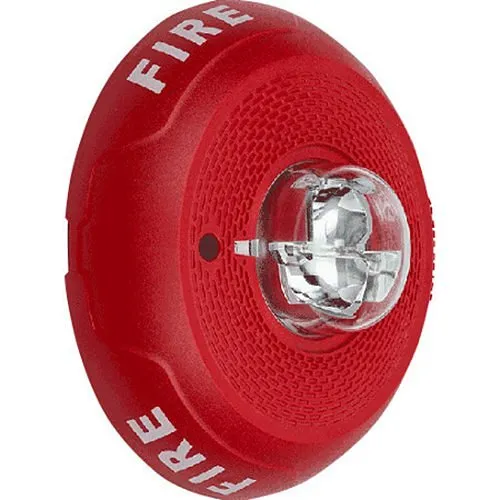

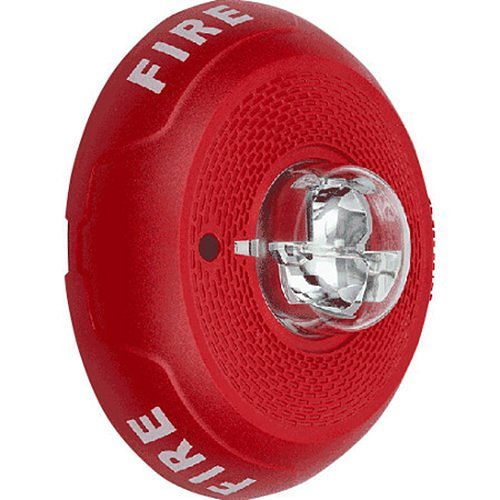

System Sensor PC2RL L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Ceiling Mount, "FIRE" Marking, Red

SKU: PC2RL System Sensor
System Sensor L PC2RL Horn/Strobe
Product images for System Sensor PC2RL L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Ceiling Mount, "FIRE" Marking, Red. 4 image(s) available. Click on image to view full size.

Key Features

  • Speeds installation with a universal snap-in mounting plate and wiring continuity check to reduce labor time and callbacks
  • Flexible notification coverage with 7 field-selectable candela settings (15–177 cd) and automatic 12/24V operation for retrofit and new‑build projects
  • Clear, compliant life‑safety signaling: bright strobe plus a selectable horn tone and two volume levels to suit corridors, open areas, and stairwells
  • Tamper‑resistant design and UL‑listed for public mode evacuation (UL 1971 & UL 464) to meet code and protect assets and occupants
  • Backward and systems-compatible (SpectrAlert legacy & Advance, MDL3 sync) to simplify upgrades and integration with existing security and monitoring systems

Quick Specifications

Product Model
PC2RL
Brand Name
System Sensor
Product Name
L PC2RL Horn/Strobe
Product Type
Horn Strobe
View Full Technical Specifications

Explore the details

Product information

PC2RL

Overview

When reliable, code‑compliant notification is critical, the System Sensor PC2RL L‑Series indoor horn strobe delivers dependable audible and visual alerts to protect occupants and property. This 2‑wire, ceiling‑mount horn/strobe combines a loud 88+ dBA horn with a bright strobe and 7 field‑selectable candela settings (15–177 cd), giving you flexible coverage for different room sizes and mounting heights. Automatic 12/24V operation and a universal snap‑in mounting plate cut installation time and reduce service calls, while tamper‑resistant housing and UL‑listed performance ensure compliance for fire alarm and life‑safety projects. Rotary tone and volume switches let technicians tailor signaling to facility needs, and compatibility with MDL3 sync modules plus SpectrAlert systems makes upgrades and integration straightforward. Ideal for commercial, institutional, and multi‑tenant buildings where security, surveillance, and monitoring systems require reliable notification devices. Specify the PC2RL for projects that demand dependable, easy‑to‑install fire notification—order or add it to your next design today.

Features

  • Speeds installation with a universal snap-in mounting plate and wiring continuity check to reduce labor time and callbacks
  • Flexible notification coverage with 7 field-selectable candela settings (15–177 cd) and automatic 12/24V operation for retrofit and new‑build projects
  • Clear, compliant life‑safety signaling: bright strobe plus a selectable horn tone and two volume levels to suit corridors, open areas, and stairwells
  • Tamper‑resistant design and UL‑listed for public mode evacuation (UL 1971 & UL 464) to meet code and protect assets and occupants
  • Backward and systems-compatible (SpectrAlert legacy & Advance, MDL3 sync) to simplify upgrades and integration with existing security and monitoring systems
22 of 22 specifications
Technical specifications for System Sensor PC2RL L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Ceiling Mount, "FIRE" Marking, Red
General Information
Brand Name System Sensor
Manufacturer Honeywell International, Inc
Product Name L PC2RL Horn/Strobe
Product Type Horn Strobe
Product Model PC2RL
Product Series L
Application/Usage Fire Alarm, Indoor
Country of Origin MX
Manufacturer Part Number PC2RL
Technical Information
Alarm Type Audible, Visual
Connectivity Technology Wired
Physical Characteristics
Color Red
Height 2.50"
Durability Tamper Resistant
Lens Color Clear
Form Factor Ceiling Mount
Power Description
Power Source DC Power
Input Voltage 33V DC
Product Information
Mount Type Ceiling Mount
Product Replacements & Other Alternatives
Model Number Replaces PC2R
Miscellaneous
Compatibility System Sensor MDL3 Sync Module Compatible Devices Legacy SpectrAlert SpectrAlert Advance
Indoor/Outdoor Indoor

No matching specifications

Try a different term, such as a connector type or resolution.

Plan your purchase

Is this right for your project?

Confirm the model, required accessories and delivery needs before ordering.

SKU:
PC2RL
Manufacturer part:
PC2RL
How do I confirm compatibility?

Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.

Ask a product specialist
When will this item ship?

Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.

Shipping, freight and delivery details
What should I know about returns?

Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.

Read return eligibility and exclusions

System Sensor PC2RL L-Series Indoor Selectable Output Horn Strobe, 2-Wire, Ceiling Mount, "FIRE" Marking, Red

PC2RL

Price & options
