JBL Professional PD6200/64-WH Speaker, Two-Way Mid-High Horn-Loaded Loudspeaker, White

SKU: PD620064-WH MPN: PD6200/64-WH JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

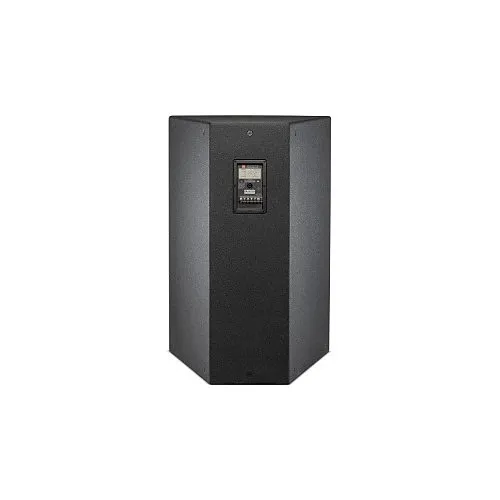

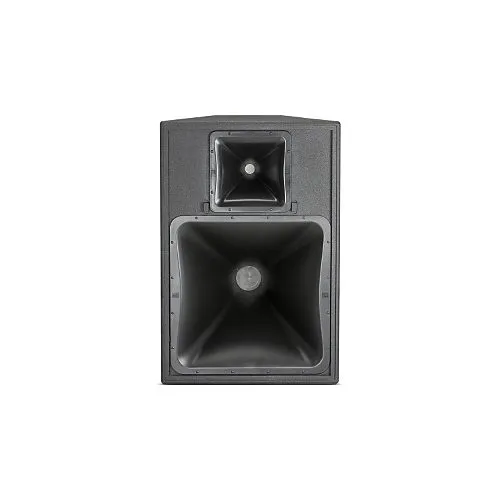

Image of JF-PD620064W
Product images for JBL Professional PD6200/64-WH Speaker, Two-Way Mid-High Horn-Loaded Loudspeaker, White. 3 image(s) available. Click on image to view full size.

Key Features

  • Delivers clear, high-output sound for large venues so messaging and performance remain intelligible even at long distances
  • Precision 60° x 40° horn control minimizes spill and improves coverage uniformity for predictable installations and easier arraying
  • 300W RMS power and 110 dB sensitivity provide reliable SPL headroom for live events, houses of worship, and sports facilities
  • Rotatable waveguide and multiple M10 suspension points simplify flexible horizontal or vertical mounting and permanent installs
  • Bi-amp capable with Speakon and barrier-strip connectors for integration into paging, monitoring, and security/evacuation systems

Quick Specifications

Product Model
PD6200/64
Brand Name
JBL Professional
Product Name
PD6200/64 High Output Two-Way Mid/High Frequency Loudspeaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

For professional venues that require high-output, highly controlled coverage, the JBL Professional PD6200/64-WH two-way mid-high speaker delivers intelligible, punchy sound where it matters most. This JBL Professional loudspeaker combines a high-power 8" dual-voice-coil midrange with a neodymium HF driver and Progressive Transition waveguide to produce 300W RMS power handling, 110 dB sensitivity, and a focused 60° x 40° dispersion for consistent audience coverage and reduced reflections. Installers benefit from rotatable waveguides, 20 M10 suspension points, and both Speakon and barrier-strip inputs for fast integration into fixed installs, bi-amped systems, or larger arrays. The controlled directivity and low distortion make the PD6200 ideal not only for performing arts centers and theaters but also for stadium paging, security paging, and public monitoring/evacuation systems where clear voice projection and reliable SPL are critical. Rugged construction and JBL’s acoustic design ensure natural tonal balance across a 240 Hz–16 kHz range, supporting music and speech with equal clarity. Specify the PD6200/64-WH when you need a dependable pro audio solution for installed sound, security paging, or live performance — contact us to discuss system design and deployment.

Features

  • Delivers clear, high-output sound for large venues so messaging and performance remain intelligible even at long distances
  • Precision 60° x 40° horn control minimizes spill and improves coverage uniformity for predictable installations and easier arraying
  • 300W RMS power and 110 dB sensitivity provide reliable SPL headroom for live events, houses of worship, and sports facilities
  • Rotatable waveguide and multiple M10 suspension points simplify flexible horizontal or vertical mounting and permanent installs
  • Bi-amp capable with Speakon and barrier-strip connectors for integration into paging, monitoring, and security/evacuation systems
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name PD6200/64 High Output Two-Way Mid/High Frequency Loudspeaker
Product Type Speaker
Product Model PD6200/64
Product Series PD
Manufacturer Part Number PD6200/64-WH
Technical Information
Impedance 8 ohms
Sensitivity 110dB
Crossover Type 2-way
Application/Usage Auditorium, Club, House of Worship, Performing Arts Center, Sport Center, Theatre
Audio
RMS Output Power 300W
Maximum Frequency Response 16 kHz
Minimum Frequency Response 240Hz
Physical Characteristics
Size 1.50"
Color White
Depth 27.8"
Width 26.5"
Height 39"
Weight 129.63lb
Miscellaneous
Features High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence, Large format neodymium HF driver provides clear, intelligible high frequency projection, Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable waveguides allow either horizontal or vertical cabinet orientation
Country of Origin MX
