JBL Professional PD6200/95-WH Speaker, White Two-Way Mid-High Horn-Loaded Loudspeaker

SKU: PD620095-WH MPN: PD6200/95-WH JBL Professional

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

Image of JF-PD620095W

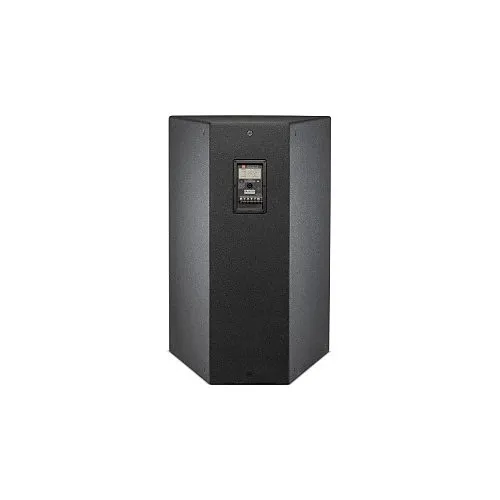

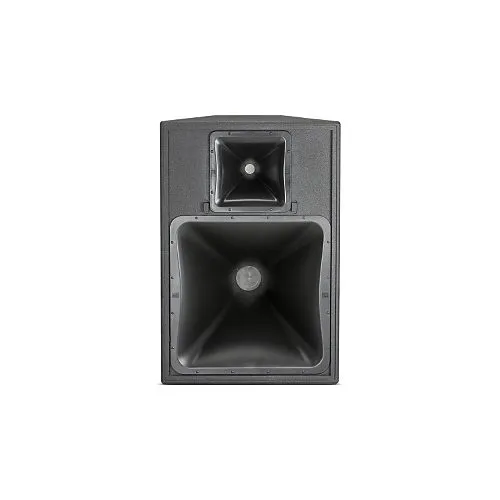

Product images for JBL Professional PD6200/95-WH Speaker, White Two-Way Mid-High Horn-Loaded Loudspeaker. 3 image(s) available. Click on image to view full size.

Key Features

  • Precise 90° x 50° coverage delivers focused, consistent sound so every seat in theaters, houses of worship, and arenas hears clear, intelligible audio
  • 300W RMS capability and 114dB sensitivity provide high continuous SPL with low distortion for music and speech at large installations
  • Rotatable PT waveguides and cone midrange compression driver enable flexible horizontal or vertical mounting and superior pattern control for arraying
  • Weather-resistant, riggable enclosure with 20 M10 suspension points simplifies permanent installs and reduces maintenance in demanding environments
  • Dual-input options (Speakon and covered barrier strip) plus bi-amplified or passive operation streamline integration with existing PA, security paging, and monitoring systems

Quick Specifications

Product Model
PD6200/95
Brand Name
JBL Professional
Product Name
PD6200/95 High Output Two-Way Mid/High Frequency Loudspeaker
Product Type
Speaker
View Full Technical Specifications

Product Information Tabs

Overview

When precise coverage and high output matter, the JBL Professional PD6200/95 two-way mid-high loudspeaker delivers. Designed as an installed-sound solution for performing arts centers, auditoriums, clubs and houses of worship, this PD-series speaker emphasizes intelligibility and punch: 300W RMS power and 114dB sensitivity keep vocals and program material clear at long throw while a controlled 90° x 50° pattern minimizes spill and improves audience coverage. The large-format neodymium HF driver and CMCD cone midrange compression driver reduce distortion at high drive levels and provide a smooth transition across the 240Hz–15kHz frequency band. Installers benefit from rotatable PT waveguides for horizontal or vertical mounting, 20 M10 rigging points, and Speakon plus covered barrier-strip inputs for easy hookup. Weather-resistant construction and array-friendly crossover behavior make the PD6200/95 ideal for permanent installs and demanding live environments. The speaker also integrates cleanly with security paging, surveillance monitoring, and facility AV systems for unified voice alarm and announcement capability. Specify the JBL PD6200/95 for reliable, high-output installed sound — contact sales or add to your system design.

Features

  • Precise 90° x 50° coverage delivers focused, consistent sound so every seat in theaters, houses of worship, and arenas hears clear, intelligible audio
  • 300W RMS capability and 114dB sensitivity provide high continuous SPL with low distortion for music and speech at large installations
  • Rotatable PT waveguides and cone midrange compression driver enable flexible horizontal or vertical mounting and superior pattern control for arraying
  • Weather-resistant, riggable enclosure with 20 M10 suspension points simplifies permanent installs and reduces maintenance in demanding environments
  • Dual-input options (Speakon and covered barrier strip) plus bi-amplified or passive operation streamline integration with existing PA, security paging, and monitoring systems
General Information
Brand Name JBL Professional
Manufacturer Harman International Industries, Inc
Product Name PD6200/95 High Output Two-Way Mid/High Frequency Loudspeaker
Product Type Speaker
Product Model PD6200/95
Product Series PD
Manufacturer Part Number PD6200/95-WH
Technical Information
Impedance 8 ohms
Sensitivity 114dB
Crossover Type 2-way
Application/Usage Amusement Park, Auditorium, Club, House of Worship, Music Venue, Performing Arts Center, Sport Center, Theater
Audio
RMS Output Power 300W
Maximum Frequency Response 15 kHz
Minimum Frequency Response 240Hz
Physical Characteristics
Size 1.50"
Color White
Depth 27.8"
Width 26.5"
Height 39"
Weight 129.63lb
Durability Weather Resistant
Miscellaneous
Features High power 200 mm (8 in) dual-coil CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence, Large format neodymium HF driver provides clear, intelligible high frequency projection, Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable waveguides allow either horizontal or vertical cabinet orientation
Country of Origin MX
