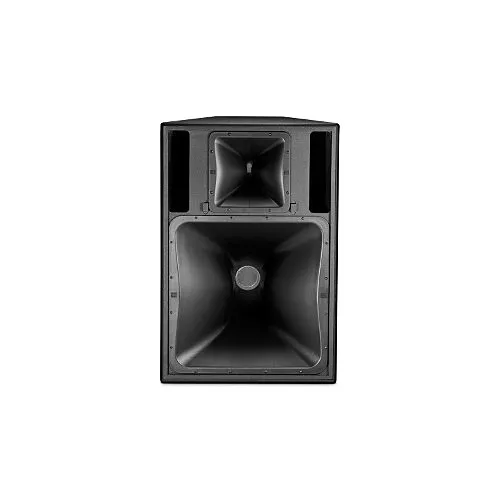

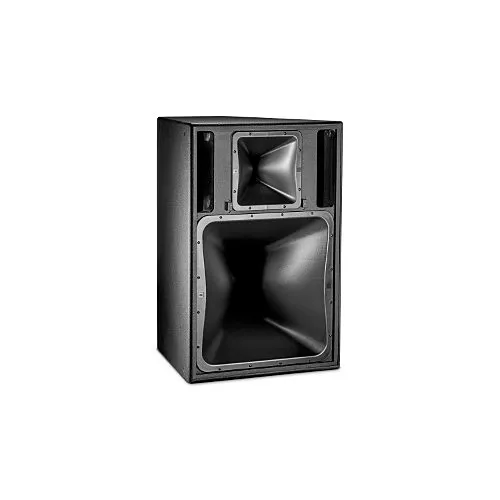

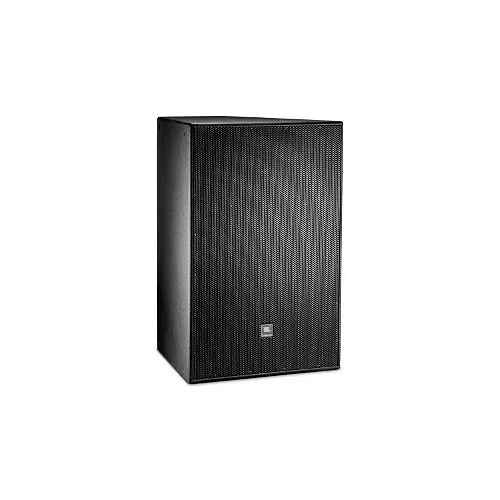

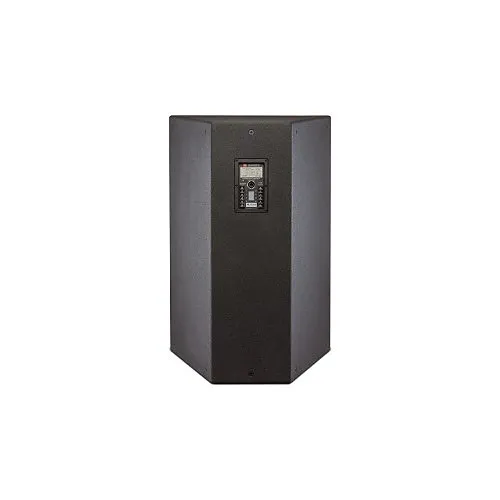

JBL Professional PD6322/64-WH Dual 12" Three-Way Full-Range Loudspeaker, White
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 5
Key Features
- Deliver consistent, intelligible coverage across large venues with Precision Directivity™ 60° x 40° pattern control for focused audience and stage coverage
- Deep, punchy low end from dual 12-inch VGC drivers down to 40 Hz, providing impactful bass without immediate need for added subwoofers
- High sensitivity (116 dB) and horn-loaded mid/high sections deliver long-throw projection and clear speech intelligibility for auditoriums, theatres, and houses of worship
- Rotatable mid/high waveguides and flexible tri-amp/bi-amp crossover modes simplify rigging and system integration for both horizontal and vertical deployment
- Durable, white enclosure engineered for indoor/outdoor use and aesthetic integration into professional installations such as performance spaces, clubs, and control rooms used for security or monitoring applications
Quick Specifications
- Product Model
- PD6322/64
- Brand Name
- JBL Professional
- Product Name
- PD6322/64 High Output Three-Way Full-Range Loudspeaker with 2 x 12" LF
- Product Type
- Speaker
Product Information Tabs
Overview
For demanding live-sound and installed-audio applications, the JBL Professional PD6322/64-WH three-way loudspeaker delivers high-output, pattern-controlled coverage that keeps music and speech clear and impactful across large spaces. This JBL Professional speaker pairs dual 12-inch low-frequency transducers with horn-loaded mid and high drivers to extend bass down to 40 Hz while maintaining a smooth top end to 16 kHz and 116 dB sensitivity for efficient, long-throw performance. The CMCD cone midrange and neodymium HF driver provide intelligible vocal reproduction and low distortion at high SPL, reducing amplifier requirements and improving audience experience. Installers benefit from rotatable waveguides and switchable tri-amp/bi-amp crossover modes for flexible orientation and integration into arrays or single-cabinet systems. Built for pro venues—auditoriums, theatres, clubs, houses of worship—and even control rooms that support security, surveillance and monitoring, the PD6322/64-WH balances power, pattern control and reliability. Contact your JBL Professional dealer to specify the PD6322/64-WH for your next performance or monitoring installation.
Features
- Deliver consistent, intelligible coverage across large venues with Precision Directivity™ 60° x 40° pattern control for focused audience and stage coverage
- Deep, punchy low end from dual 12-inch VGC drivers down to 40 Hz, providing impactful bass without immediate need for added subwoofers
- High sensitivity (116 dB) and horn-loaded mid/high sections deliver long-throw projection and clear speech intelligibility for auditoriums, theatres, and houses of worship
- Rotatable mid/high waveguides and flexible tri-amp/bi-amp crossover modes simplify rigging and system integration for both horizontal and vertical deployment
- Durable, white enclosure engineered for indoor/outdoor use and aesthetic integration into professional installations such as performance spaces, clubs, and control rooms used for security or monitoring applications
| General Information | |
|---|---|
| Brand Name | JBL Professional |
| Manufacturer | Harman International Industries, Inc |
| Product Name | PD6322/64 High Output Three-Way Full-Range Loudspeaker with 2 x 12" LF |
| Product Type | Speaker |
| Product Model | PD6322/64 |
| Product Series | PD |
| Manufacturer Part Number | PD6322/64-WH |
| Technical Information | |
| Impedance | 8 ohms |
| Sensitivity | 116dB |
| Crossover Type | 3-way |
| Application/Usage | Auditorium, Club, House of Worship, Performing Arts Center, Sport Center, Theatre |
| Audio | |
| Maximum Frequency Response | 16 kHz |
| Minimum Frequency Response | 49Hz |
| Physical Characteristics | |
| Size | 12" |
| Color | White |
| Depth | 27.8" |
| Width | 26.5" |
| Height | 39" |
| Weight | 169.76lb |
| Miscellaneous | |
| Features | High power CMCD Cone Midrange Compression Driver provides high sensitivity and high continuous SPL capability along with low distortion, extended bandwidth and improved phase coherence, Large format neodymium HF driver provides clear, intelligible high frequency projection, Large PT Progressive Transition waveguides provide excellent pattern control, low distortion at high SPL levels and smooth frequency response, Rotatable mid and high frequency waveguides allow either horizontal or vertical cabinet orientation, Sophisticated, steep-slope passive mid high crossover network with switchable tri-amp/bi-amp crossover modes, Two high power 300 mm (12 in) transducers in a compact slot-loaded configuration for low frequency extension to 40 Hz |
| Indoor/Outdoor | Outdoor |
| Country of Origin | MX |
