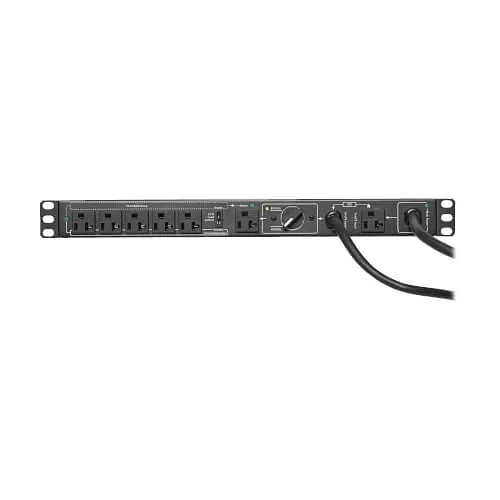

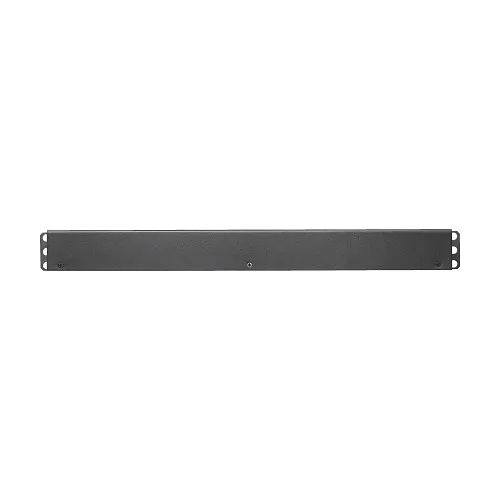

Eaton Tripp Lite PDUB201U 100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass, 6 NEMA 5-20R Outlets, 2 5-20P Inputs, 1U Rack / Wall
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 7
Key Features
- Ensure continuous operation during UPS maintenance with a manual bypass for zero downtime

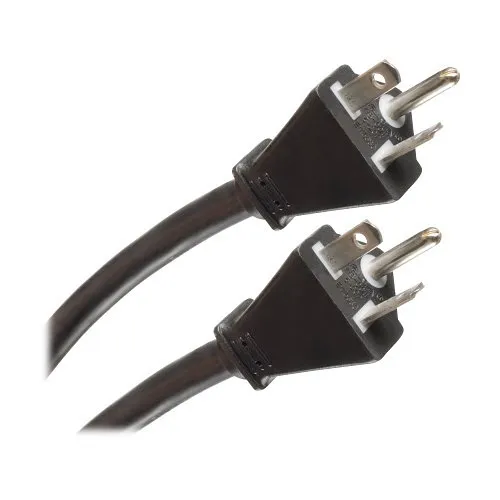

- Dual 5-20P inputs (UPS and utility) plus a manual transfer switch for reliable, hot-swap power transfer
- Six NEMA 5-20R outlets supporting multiple devices while saving rack space in a 1U rack- or wall-mountable metal chassis
- Optional ECO switching to reduce energy costs by powering off controlled outlet banks when the master device is idle
- Robust 16A, 100–125V single-phase design ideal for data centers, security, surveillance, and networking equipment
Quick Specifications
- Product Model
- PDUB201U
- Brand Name
- Eaton Tripp Lite
- Manufacturer Part Number
- PDUB201U
Frequently Bought Together
Eaton Tripp Lite PDUB201U 100-125V 16A Single-Phase Hot-Swap PDU with Manual Bypass, 6 NEMA 5-20R Outlets, 2 5-20P Inputs, 1U Rack / Wall
$290.90
9 items selected
Total: $5,567.18
Explore the details
Product information
PDUB201U
Overview
Keep critical systems running without interruption during UPS service with the Eaton Tripp Lite PDUB201U hot-swap Power Distribution Unit. Designed for data centers, security and surveillance racks, and network monitoring environments, this PDU lets you manually transfer connected loads to utility power so servers, cameras and networking gear stay online through maintenance or UPS replacement. The PDUB201U features dual NEMA 5-20P inputs (UPS and utility) and a manual transfer switch that powers six NEMA 5-20R outlets from either source, supporting a 16A, 100–125V single-phase load in a compact 1U rack- or wall-mountable all-metal housing. An optional ECO switching mode enables energy savings by shutting off a bank of five controlled outlets when the master outlet is idle—ideal for reducing power costs in large monitoring or surveillance deployments. Built to simplify UPS maintenance and protect uptime, the PDUB201U is CSA- and RoHS-compliant and backed by a 2-year limited warranty. Add this Eaton Tripp Lite PDU to your rack to safeguard continuous power for security, monitoring and networking equipment—order now or contact sales for bulk deployment support.
Features
- Ensure continuous operation during UPS maintenance with a manual bypass for zero downtime
- Dual 5-20P inputs (UPS and utility) plus a manual transfer switch for reliable, hot-swap power transfer
- Six NEMA 5-20R outlets supporting multiple devices while saving rack space in a 1U rack- or wall-mountable metal chassis
- Optional ECO switching to reduce energy costs by powering off controlled outlet banks when the master device is idle
- Robust 16A, 100–125V single-phase design ideal for data centers, security, surveillance, and networking equipment
| General Information | |
|---|---|
| Brand Name | Eaton Tripp Lite |
| Manufacturer Part Number | PDUB201U |
| Technical Information | |
| Phase | Single Phase |
| Receptacle Type | 5-20R |
| Application/Usage | Commercial, Residential |
| Receptacle Detail | 6 x 5-20R |
| Physical Characteristics | |
| Depth | 3.94" |
| Width | 17.24" |
| Height | 1.73" |
| Rack Height | 1U |
| Product Information | |
| Length | 3.94" |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Country of Origin | CN |
| Environmentally Friendly | Yes |
| Environmental Certification | CSA, RoHS |
