Eaton Tripp Lite PDUMH30ATNET 2U 30A Switched ATS PDU, 25 Outlets, Dual L5-30P Inputs, Network Interface, Black
Special Order: typically 2–6 weeks
Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.
Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.
A member of our team will check with the manufacturer and personally reply by email.
Image of 7
Key Features
- Provides automatic redundant power with a fast 1–5 ms ATS transfer to minimize downtime for critical systems
- Networked, programmable control (pre-installed WEBCARDLX) for remote monitoring, metering and outlet-level switching

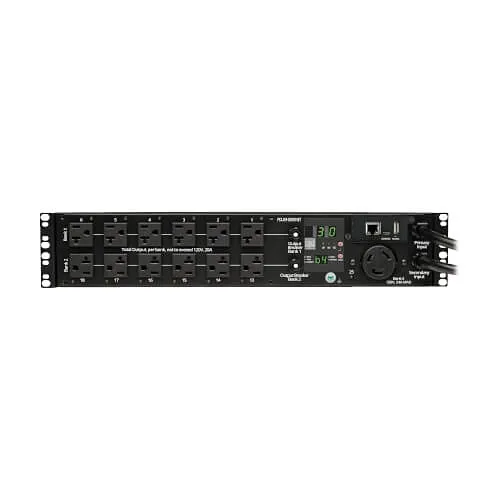

- 25 switched outlets (24 NEMA 5-15/20R + 1 NEMA L5-30R) support mixed server, switch and security device loads

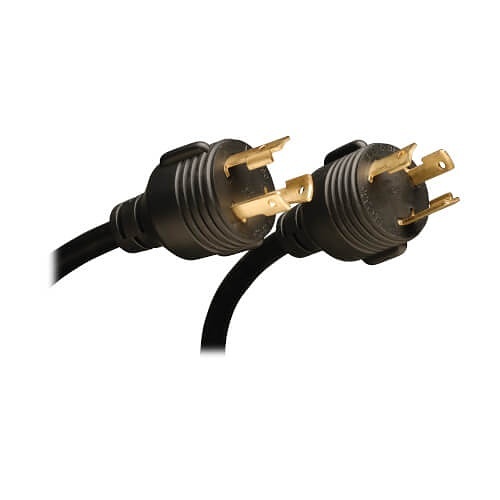

- Compact 2U rack-mount form factor with dual NEMA L5-30P inputs saves space while delivering 2.9 kW of managed power

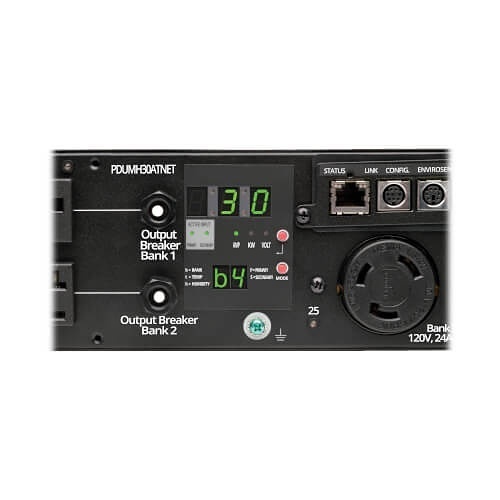

- Visual metering for amps, kW, voltage and temperature helps capacity planning and prevents overloads
- Ideal for data centers, network closets, and security/surveillance deployments requiring reliable, monitored power
Quick Specifications
- Product Model
- PDUMH30ATNET
- Brand Name
- Eaton Tripp Lite
- Product Name
- Switched PDUMH30ATNET 25-Outlets PDU
- Product Type
- PDU
Frequently Bought Together
Eaton Tripp Lite PDUMH30ATNET 2U 30A Switched ATS PDU, 25 Outlets, Dual L5-30P Inputs, Network Interface, Black
$1,495.16
8 items selected
Total: $1,845.94
Explore the details
Product information
PDUMH30ATNET
Overview
Keep critical infrastructure online and manageable with the Eaton Tripp Lite PDUMH30ATNET Switched ATS PDU. Built for data centers, network closets and security/surveillance environments, this 2U rack-mount PDU provides redundant auto-transfer power to reduce downtime and protect monitoring equipment. With dual NEMA L5-30P inputs and a 2.9 kW capacity, the unit supports a mix of 24 NEMA 5-15/20R receptacles plus one L5-30R for high-current devices. Remote administrators gain full control via the pre-installed WEBCARDLX network interface for outlet-level switching, scheduling and SNMP monitoring—enabling fast recovery and targeted power cycling for servers, recorders and cameras. Built-in visual metering displays amps, kW, voltage and temperature for real-time capacity tracking and proactive maintenance. The PDUMH30ATNET’s fast 1–5 ms ATS transfer, overload protection and TAA compliance make it a dependable choice where uptime matters. Deploy this Eaton Tripp Lite switched PDU to simplify rack power management, enhance security system reliability and centralize power monitoring—order or contact our sales team to specify for your next rack deployment.
Features
- Provides automatic redundant power with a fast 1–5 ms ATS transfer to minimize downtime for critical systems
- Networked, programmable control (pre-installed WEBCARDLX) for remote monitoring, metering and outlet-level switching
- 25 switched outlets (24 NEMA 5-15/20R + 1 NEMA L5-30R) support mixed server, switch and security device loads
- Compact 2U rack-mount form factor with dual NEMA L5-30P inputs saves space while delivering 2.9 kW of managed power
- Visual metering for amps, kW, voltage and temperature helps capacity planning and prevents overloads
- Ideal for data centers, network closets, and security/surveillance deployments requiring reliable, monitored power
| General Information | |
|---|---|
| Brand Name | Eaton Tripp Lite |
| Product Name | Switched PDUMH30ATNET 25-Outlets PDU |
| Product Type | PDU |
| Product Model | PDUMH30ATNET |
| Product Series | Switched |
| Country of Origin | TW |
| Manufacturer Part Number | PDUMH30ATNET |
| Technical Information | |
| PDU Type | Switched |
| Receptacle Type | NEMA 5-15/20R, NEMA L5-30R |
| Receptacle Detail | 1 x NEMA L5-30R, 24 x NEMA 5-15/20R |
| Certifications | |
| TAA Compliant | Yes |
| Physical Characteristics | |
| Depth | 13.00" |
| Width | 18.00" |
| Rack Height | 2U |
| Mounting Orientation | Horizontal |
| Power Description | |
| Input Voltage | 120V AC |
| Plug/Connector Type | NEMA L5-30P |
| Product Information | |
| Mount Type | Rack Mount |
| Protection Type | Overload Protection |
| Warranty | |
| Limited Warranty | 2-Year |
| Miscellaneous | |
| Environmentally Friendly | Yes |
| Environmental Certification | RoHS |
No matching specifications
Try a different term, such as a connector type or resolution.
Plan your purchase
Is this right for your project?
Confirm the model, required accessories and delivery needs before ordering.
- SKU:
- PDUMH30ATNET
- Manufacturer part:
- PDUMH30ATNET
How do I confirm compatibility?
Check the specifications and manufacturer documents for your existing system. Send us your model numbers and project requirements if you need help selecting equipment or accessories.
Ask a product specialistWhen will this item ship?
Availability is shown above. Special-order items and project quantities may need additional lead time. Contact us to confirm a delivery date before scheduling installation.
Shipping, freight and delivery detailsWhat should I know about returns?
Returns require an approved RMA. Consult the linked return policy for deadlines and eligibility. For standard non-defective returns, eligible factory-sealed items carry a 15% restocking fee and customer-paid return shipping; open-box and used items are refused. Defective and DOA claims follow the policy's separate terms. Special orders and other exclusions are final sale.
