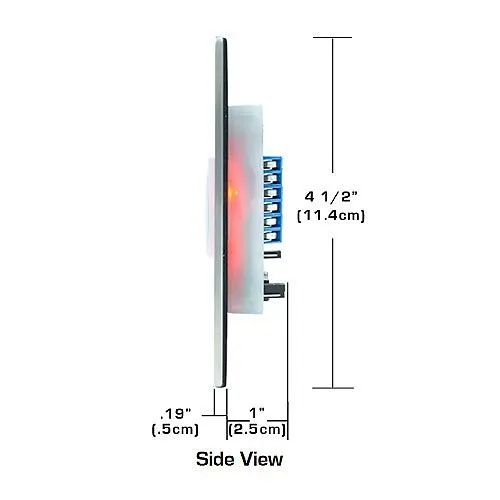

Essex PEB-1S PEB Series Narrow Piezoelectric "Push to Exit" Switch, Stainless-Steel Faceplate

Ensure secure, reliable egress in vandal-prone, high-traffic, or outdoor locations with the Essex Electronics PEB-1S narrow Piezoelectric Push to Exit switch. This stainless-steel door release button combines Essex proprietary piezo technology with epoxy-encapsulated electronics to deliver long service life and minimal maintenance. The PEB-1S is IP66-rated and operates from -40°F to 158°F, making it ideal for exposed entryways and industrial sites. Installers benefit from selectable bi-color illumination (red/green/off) for visible relay status and external control for integration with surveillance, monitoring, and access control systems. Flexible connectivity includes both N.O. and N.C. outputs, 12–24 VDC input (24V typical), and an adjustable 1 to 40 second timer to support electric strikes, magnetic locks, or REX inputs. With UL 294 Access Control Line Security 1 compliance and a limited lifetime warranty, the PEB-1S is a professional choice for schools, healthcare, transportation, and commercial security projects. Upgrade your access control and egress points with the PEB-1S—order now for rugged, code-ready exit control.

• Vandal-resistant stainless-steel faceplate and piezoelectric actuator for dependable, low-maintenance egress in high-use or hostile environments
• IP66 all-weather design and -40°F to 158°F operating range for reliable outdoor and industrial security applications
• Selectable bi-color illumination and external control for clear status indication and easy integration with surveillance and access control systems
• Adjustable 1–40 second output, N.O./N.C. contacts and 12–24 VDC compatibility to drive electric strikes, maglocks or tie into REX/monitoring inputs
• UL 294 security rating and limited lifetime warranty reduce lifecycle costs and simplify compliance for commercial installations
