Essex PEB-2S PEB Series Single Gang Piezoelectric "Push to Exit" Switch, Stainless-Steel Faceplate
Image of 2
Key Features
- Built for durability: stainless-steel faceplate and IP66 weather rating protect the switch in high-traffic, vandal-prone and outdoor installations
- Clear status feedback: selectable bi-color illumination (red/green/off) and external control simplify monitoring and reduce false alarms
- Flexible integration: timed 1–40 second output and dual N.O./N.C. contacts work with electric strikes, maglocks, automatic doors and REX inputs
- Low maintenance, long life: piezoelectric actuation and epoxy-encapsulated electronics deliver reliable performance in harsh environments
- Compliance-ready: UL 294 access control listing and limited lifetime warranty give installers confidence for commercial security projects
- User-first design: single-gang “PUSH TO EXIT” graphics and tactile response ensure intuitive egress for occupants and first responders
Quick Specifications
- Product Model
- PEB-2S
- Brand Name
- Essex Electronics
- Product Line
- PEB Series
- Product Name
- PEB Push Button
Frequently Bought Together
Essex PEB-2S PEB Series Single Gang Piezoelectric "Push to Exit" Switch, Stainless-Steel Faceplate
$105.40
4 items selected
Total: $319.97
Explore the details
Product information
PEB-2S
Overview
For secure, dependable egress in commercial and high-use environments, the Essex Electronics PEB-2S piezoelectric push-to-exit switch delivers vandal-resistant performance with professional-grade reliability. Designed as a single-gang, stainless-steel door release button, the PEB-2S withstands harsh weather and abuse (IP66 rating) while providing clear visual status through selectable bi-color illumination.
Installers benefit from flexible integration: the PEB-2S supports 12–24 VDC operation (24 VDC typical), adjustable output timing from 1 to 40 seconds, and both normally open and normally closed contacts for electric locks, maglocks, strikes, automatic doors and REX/REX bypass inputs. Epoxy-encapsulated electronics and piezoelectric actuation reduce maintenance and downtime, making it ideal for access control, security and surveillance installations where uptime matters.
Whether specifying hardware for a secure facility, retrofitting a monitored entry, or protecting a high-traffic perimeter, choose the Essex PEB-2S for rugged construction, clear monitoring capability, and code-friendly performance. Order the PEB-2S for your next access control or door release project.
Features
- Built for durability: stainless-steel faceplate and IP66 weather rating protect the switch in high-traffic, vandal-prone and outdoor installations
- Clear status feedback: selectable bi-color illumination (red/green/off) and external control simplify monitoring and reduce false alarms
- Flexible integration: timed 1–40 second output and dual N.O./N.C. contacts work with electric strikes, maglocks, automatic doors and REX inputs
- Low maintenance, long life: piezoelectric actuation and epoxy-encapsulated electronics deliver reliable performance in harsh environments
- Compliance-ready: UL 294 access control listing and limited lifetime warranty give installers confidence for commercial security projects
- User-first design: single-gang “PUSH TO EXIT” graphics and tactile response ensure intuitive egress for occupants and first responders
| General Information | |
|---|---|
| Brand Name | Essex Electronics |
| Manufacturer | Essex Electronics, Inc |
| Product Line | PEB Series |
| Product Name | PEB Push Button |
| Product Type | Push Button |
| Product Model | PEB-2S |
| Product Series | PEB |
| Application/Usage | Door, Vandal Prone Area |
| Country of Origin | US |
| Manufacturer Part Number | PEB-2S |
| Technical Information | |
| Gang Type | Single Gang |
| Maximum Timer Duration | 40s |
| Minimum Timer Duration | 1.0s |
| Environmental Conditions | |
| Maximum Operating Temperature | 158.00°F |
| Minimum Operating Temperature | -40.0°F |
| Physical Characteristics | |
| Color | Silver |

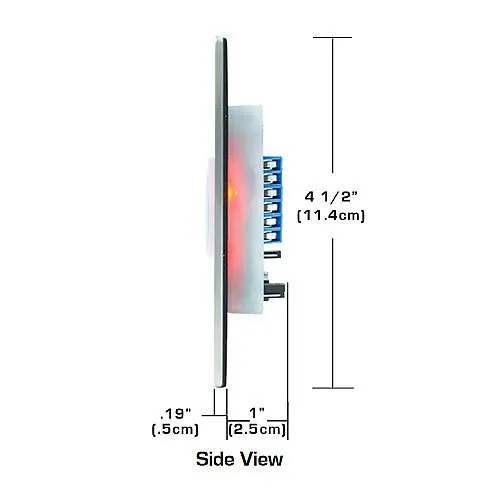

| Height | 4.50" |
| Material | Stainless Steel |
| Durability | Vandal Resistant, Weather Resistant |
| Power Description | |
| Input Voltage | 24V DC |
| Product Information | |
| Mount Type | Gang Box Mount |
| Contact Type | NO/NC (Combination) |
| Print/Message | Push To Exit |
| Product Replacements & Other Alternatives | |
| Model Number Replaces | PEBSS3US |
| Warranty | |
| Limited Warranty | Lifetime |
| Miscellaneous | |
| Features | Illuminated, Piezoelectric Switch |
