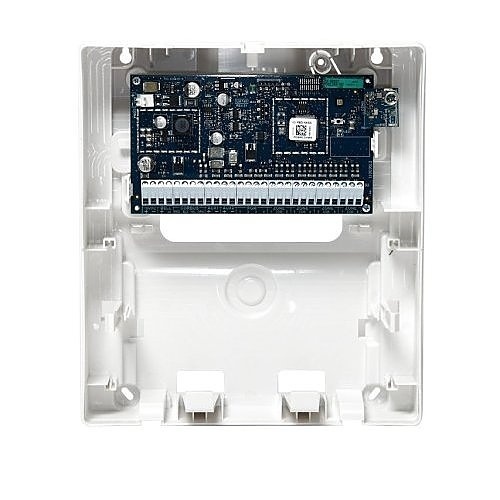

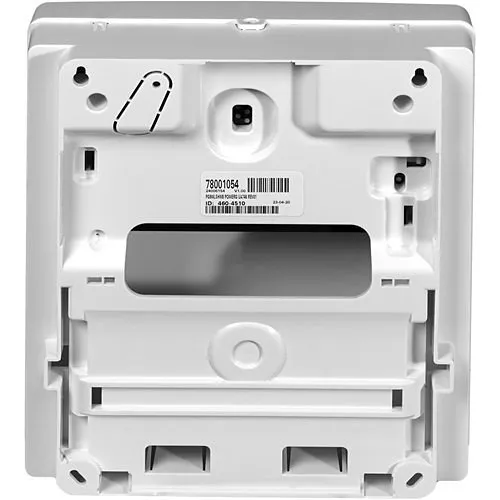

DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
Image of 3
Key Features
- Modernize legacy panels quickly by converting hardwired zones to secure PowerG wireless for enhanced remote monitoring
- Protect life-safety devices and alarms with support for up to 18 conventional 2-wire smoke detectors and CO detectors
- Maintain reliable local signaling with supervised siren output (12V @ 700mA) and 4 programmable PGM outputs for flexible device control
- Harden installations with double end-of-line programming, front and back tamper switches, and integrated power supply supervision
- Simplify installs with 8 hardwired zone inputs, hybrid wired/wireless connectivity, internal battery backup support and an on-board 18VDC power adapter
Quick Specifications
- Product Model
- PG9WLSHW8
- Brand Name
- DSC
- Product Line
- PowerG
- Product Name
- PowerG Wired to Wireless Upgrade & Expansion Module
Frequently Bought Together
DSC PG9WLSHW8 PowerG Wired-to-Wireless Upgrade and Security System Expansion Module, IQ Hardwire PowerG
$162.94
14 items selected
Total: $1,013.30
Explore the details
Product information
PG9WLSHW8
Overview
Upgrade legacy alarm panels to a modern, monitored security solution with the DSC PowerG Wired-to-Wireless Upgrade and Security System Expansion Module (PG9WLSHW8). Designed for installers and security integrators, this control panel module converts 8 hardwired zones into PowerG secure wireless devices, enabling encrypted, long-range communication for professional monitoring and surveillance. The module supports up to 18 conventional 2-wire smoke detectors and multiple 4-wire smoke and CO detectors, ensuring continued life-safety compliance while adding wireless flexibility.
Beyond conversion, the module delivers dependable local control: a supervised siren output at 12V @ 700mA, four programmable PGM outputs, and two auxiliary power loops to drive strobes, sirens or third-party devices. Enhanced tamper protection, double EOL programming and integrated power supply supervision reduce false alarms and strengthen site security. Its hybrid design and internal battery backup option make it ideal for retrofits where uptime and monitoring are critical.
For security professionals looking to streamline installations and extend surveillance and alarm monitoring capabilities, the DSC PG9WLSHW8 is a practical upgrade. Add it to your next retrofit or security expansion project to modernize systems fast — contact us to order or specify.
Features
- Modernize legacy panels quickly by converting hardwired zones to secure PowerG wireless for enhanced remote monitoring
- Protect life-safety devices and alarms with support for up to 18 conventional 2-wire smoke detectors and CO detectors
- Maintain reliable local signaling with supervised siren output (12V @ 700mA) and 4 programmable PGM outputs for flexible device control
- Harden installations with double end-of-line programming, front and back tamper switches, and integrated power supply supervision
- Simplify installs with 8 hardwired zone inputs, hybrid wired/wireless connectivity, internal battery backup support and an on-board 18VDC power adapter
| General Information | |
|---|---|
| Brand Name | DSC |
| Manufacturer | Johnson Controls |
| Product Line | PowerG |
| Product Name | PowerG Wired to Wireless Upgrade & Expansion Module |
| Product Type | Security System Wireless Expansion Module |
| Product Model | PG9WLSHW8 |
| Application/Usage | Carbon Monoxide Detector, Security System, Siren, Smoke Detector, Strobe |
| Country of Origin | MX |
| Manufacturer Part Number | PG9WLSHW8 |
| Technical Information | |
| Connectivity Technology | Wired, Wireless |
| Physical Characteristics | |
| Depth | 3.10" |
| Width | 9.80" |
| Height | 8.90" |
| Product Information | |
| Installation Type | Hybrid (DIY + Professional) |
| Miscellaneous | |
| Features | Bell Output, Life-Safety Sensor Support |
