Eaton Tripp Lite PINV600SW-120 Light-Duty Compact Power Inverter, 2x 5-15R, USB Charging, Pure Sine Wave, 600W

SKU: PINV600SW-120 Eaton Tripp Lite

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

Image of TC-PINV600SW

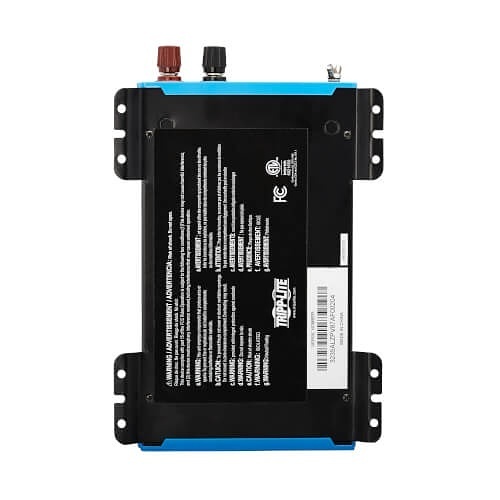

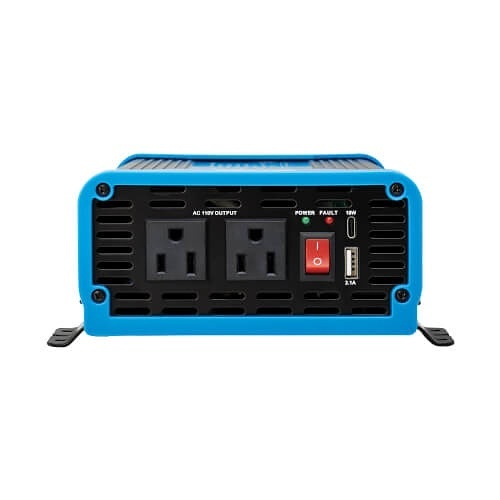

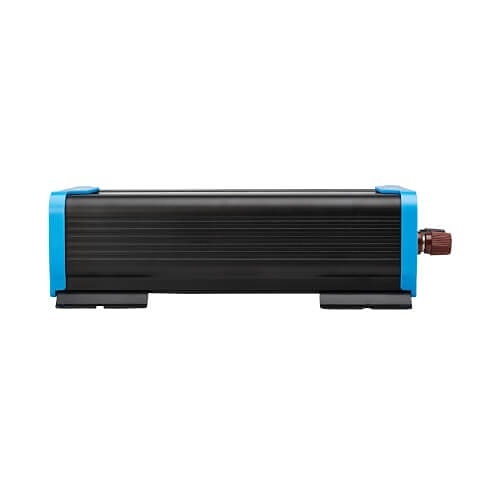

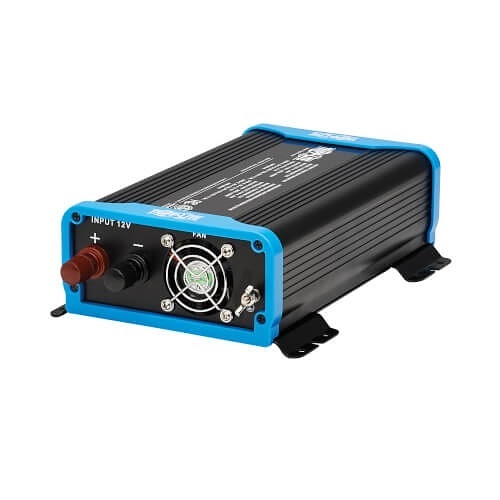

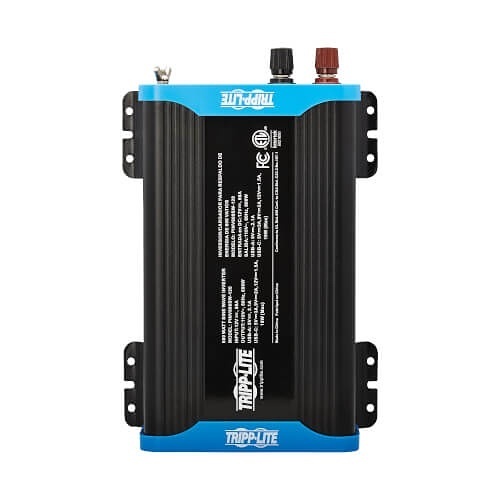

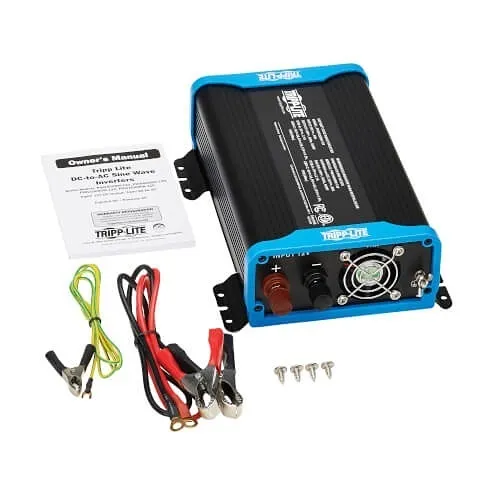

Product images for Eaton Tripp Lite PINV600SW-120 Light-Duty Compact Power Inverter, 2x 5-15R, USB Charging, Pure Sine Wave, 600W. 8 image(s) available. Click on image to view full size.

Key Features

  • Keep mobile workstations, surveillance gear and power tools running with 600W continuous (1200W peak) pure sine wave output
  • Reliable AC power from any 12V vehicle battery via two NEMA 5-15R outlets for on-site security, monitoring and networking equipment
  • Charge phones, tablets and laptops quickly with USB-A (2.1A) and USB-C (up to 18W) — USB ports remain available even when AC is off
  • Protect vehicles and devices with low/high voltage auto-shutdown, overload protection and audible fault alerts
  • Rugged aluminum housing with mounting brackets and a load-controlled fan for permanent installs in service vehicles, boats or mobile offices

Quick Specifications

Product Model
PINV600SW-120
Brand Name
Eaton Tripp Lite
Product Name
600W Light-Duty Compact Power Inverter - 2x 5-15R, USB Charging, Pure Sine Wave
Product Type
Power Inverter
View Full Technical Specifications

Frequently Bought Together

This Item
Eaton Tripp Lite PINV600SW-120 Light-Duty Compact Power Inverter, 2x 5-15R, USB Charging, Pure Sine Wave, 600W

Eaton Tripp Lite PINV600SW-120 Light-Duty Compact Power Inverter, 2x 5-15R, USB Charging, Pure Sine Wave, 600W

$261.36

Frequently Bought Together (1 items)

2 items selected

Total: $719.98

Explore the details

Product information

PINV600SW-120

Overview

When you need dependable AC power away from the grid, the Eaton Tripp Lite PINV600SW-120 power inverter delivers clean, portable energy for security, surveillance and mobile work. This compact 12V DC-to-110V AC inverter produces 600W continuous (1200W peak) of pure sine wave output to safely run sensitive electronics — from DVRs and network switches to laptops and small power tools. Two NEMA 5-15R outlets give you straightforward AC access while integrated USB-A (2.1A) and USB-C (up to 18W) ports keep mobile devices charged; the USB ports remain active even when AC outlets are switched off so you can top up phones and GPS units without engaging heavy loads. Built for field use, the PINV600SW-120 includes low/high voltage auto-shutdown, overload protection, audible alarms and a load-controlled cooling fan to protect both your vehicle battery and attached equipment. The durable aluminum housing and included mounting brackets simplify permanent installs in service trucks, surveillance vans, boats or remote monitoring stations. Backed by Eaton Tripp Lite reliability and a 2-year warranty, it’s a practical choice for technicians, fleet managers and security integrators. Add one to your fleet to power remote cameras, monitoring gear and mobile offices today.

Features

  • Keep mobile workstations, surveillance gear and power tools running with 600W continuous (1200W peak) pure sine wave output
  • Reliable AC power from any 12V vehicle battery via two NEMA 5-15R outlets for on-site security, monitoring and networking equipment
  • Charge phones, tablets and laptops quickly with USB-A (2.1A) and USB-C (up to 18W) — USB ports remain available even when AC is off
  • Protect vehicles and devices with low/high voltage auto-shutdown, overload protection and audible fault alerts
  • Rugged aluminum housing with mounting brackets and a load-controlled fan for permanent installs in service vehicles, boats or mobile offices
23 of 23 specifications
Technical specifications for Eaton Tripp Lite PINV600SW-120 Light-Duty Compact Power Inverter, 2x 5-15R, USB Charging, Pure Sine Wave, 600W
General Information
Brand Name Eaton Tripp Lite
Manufacturer Eaton
Product Name 600W Light-Duty Compact Power Inverter - 2x 5-15R, USB Charging, Pure Sine Wave
Product Type Power Inverter
Product Model PINV600SW-120
Product Series PINV
Country of Origin CN
Manufacturer Part Number PINV600SW120
Technical Information
Output Voltage 110V AC
Certifications
Certifications & Standards CAN/CSA-C22.2 No. 107.1 (Canada) UL 458 FCC (USA)
Interfaces/Ports
Receptacles 2 x NEMA 5-15R
Physical Characteristics
Color Green, Red
Depth 12.10"
Width 8.40"
Height 4.40"
Power Description
Input Voltage 12V DC
Waveform Type Pure Sine Wave
Peak Power Load 1200W
Maximum Frequency 60.00Hz
Plug/Connector Type NEMA 5-15R
Continuous Power Load 600W
Product Information
Protection Type Overload Protection
Warranty
Limited Warranty 2-Year
