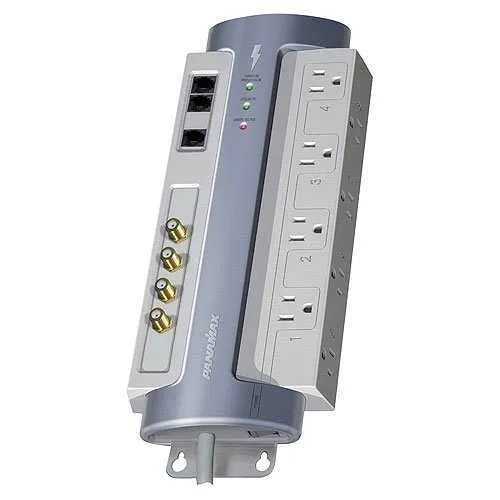

Panamax PM8-AV PowerMax AV Surge Protector

SKU: PM8-AV Panamax
Panamax PM8-AV Line Conditioner
Product images for Panamax PM8-AV PowerMax AV Surge Protector. 2 image(s) available. Click on image to view full size.

Key Features

  • Delivers cleaner audio and video by reducing EMI/RFI noise and power contamination for clearer picture and sound
  • Protects costly AV, security and surveillance gear with 1125J surge suppression and exclusive Protect or Disconnect™ circuitry
  • Eight filtered, surge-protected outlets plus cable/satellite and telephone line protection safeguard entire systems from propagated surges
  • Maintains reliable operation for monitoring and control equipment with 120V, 15A capacity and a 6' cord for flexible rack or floor placement
  • Lifetime limited warranty provides long-term confidence and reduces downtime risk for professional installations

Quick Specifications

Product Model
PM8-AV
Brand Name
Panamax
Product Name
PM8-AV Line Conditioner
Product Type
Line Conditioner
View Full Technical Specifications

Explore the details

Product information

PM8-AV

Overview

Ensure your AV and security equipment performs at its best with the Panamax PM8-AV PowerMax AV surge protector and line conditioner. Designed for professional A/V systems, surveillance installations and monitoring stations, the PM8-AV cleans dirty power to eliminate pops, hisses, hum and visual artifacts so cameras, recorders and displays deliver their intended clarity. Its 1125J surge energy rating and exclusive Protect or Disconnect™ circuitry block catastrophic surges — including lightning — by completely disconnecting power to connected devices when needed. With eight filtered and surge-protected outlets, cable/satellite and telephone line protection, and a 6' cord for flexible placement, this Panamax power conditioner simplifies protection of entire racks or single-room systems. Rated for 120V/15A operation and engineered to meet UL 1449 3rd Edition safety standards, the PM8-AV is Hi-Def ready and optimized for security, surveillance and networked AV deployments. Protect your investment and improve system reliability — ideal for home theaters, pro AV racks, CCTV monitoring rooms and control centers. Add the PM8-AV to your specification or order now to secure and condition your power.

Features

  • Delivers cleaner audio and video by reducing EMI/RFI noise and power contamination for clearer picture and sound
  • Protects costly AV, security and surveillance gear with 1125J surge suppression and exclusive Protect or Disconnect™ circuitry
  • Eight filtered, surge-protected outlets plus cable/satellite and telephone line protection safeguard entire systems from propagated surges
  • Maintains reliable operation for monitoring and control equipment with 120V, 15A capacity and a 6' cord for flexible rack or floor placement
  • Lifetime limited warranty provides long-term confidence and reduces downtime risk for professional installations
21 of 21 specifications
Technical specifications for Panamax PM8-AV PowerMax AV Surge Protector
General Information
Brand Name Panamax
Manufacturer Panamax
Product Name PM8-AV Line Conditioner
Product Type Line Conditioner
Product Model PM8-AV
Country of Origin CN
Manufacturer Part Number PM8-AV
Technical Information
Placement Floor
Output Voltage 120V AC
Receptacle Type AC Power
Number of Outlets 8
Physical Characteristics
Depth 1.90"
Width 5.00"
Height 12.00"
Power Description
Input Voltage 120V AC
Maximum Frequency 60.00Hz
Minimum Frequency 50.00Hz
Maximum Line Current 15.00A
Product Information
Length 6.00'
Protection Type Undervoltage Protection
Warranty
Limited Warranty Lifetime
