AtlasIED PM8GD-WH 8" 2-Way High Efficiency Pendent Speaker with 8W 70V Transformer, White

SKU: PM8GD-WH AtlasIED

Special Order: typically 2–6 weeks

Ships directly from the manufacturer. This is an estimated lead time, not a guaranteed delivery date.

Availability can change and lead times may be longer. If your project has a deadline, check with us before ordering.

A member of our team will check with the manufacturer and personally reply by email.

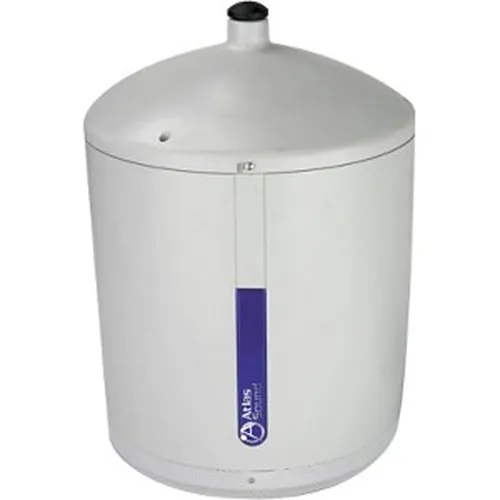

Image of AT-PM8GDW
Product images for AtlasIED PM8GD-WH 8" 2-Way High Efficiency Pendent Speaker with 8W 70V Transformer, White. 2 image(s) available. Click on image to view full size.
NDAA Compliant

Key Features

  • Delivers clear, intelligible paging and background audio for security, surveillance and monitoring areas
  • High-efficiency 8in GD coaxial driver (96 dB) reduces amplifier load so you can deploy more speakers per channel
  • 70V taps at 1, 2, 4 and 8W plus 8Ω direct input for flexible system design and easy scaling
  • Wide 120-degree coverage ensures even voice distribution and minimizes dead zones in open ceilings
  • Concealed terminal block, 3 meters of cable and included mounting hardware speed installation and preserve a clean ceiling appearance
  • Pendant design compatible with standard 3/4in ceiling fan hardware for straightforward retrofits and new builds

Quick Specifications

Product Model
PM8GD-WH
Brand Name
AtlasIED
Product Name
8" 2-Way High Efficiency Pendant Speaker with 8-Watt 70V Transformer - White
Product Type
Speaker
View Full Technical Specifications

Explore the details

Product information

PM8GD-WH

Overview

Deliver consistent, intelligible paging and background audio in commercial and security-focused spaces with the AtlasIED PM8GD-WH pendant speaker. This AtlasIED pro speaker pairs the efficient GD series coaxial driver with a compact pendant form to provide wide 120-degree coverage and reliable voice reproduction—ideal for retail, healthcare, transit hubs, and surveillance or monitoring zones requiring dependable public address and notification.

The PM8GD-WH's 8in GD87 driver and 2-way design produce full-range sound from 55 Hz to 15 kHz while offering 96 dB sensitivity to maximize output with minimal amplifier power. Built-in 70V taps at 1, 2, 4 and 8 watts (plus 8Ω direct input) simplify large distributed paging systems and let you optimize loudness across multiple zones. A concealed terminal block, 3 meters of cable and mounting hardware accelerate installation and maintain a clean ceiling aesthetic; compatibility with standard 3/4in ceiling fan hardware ensures easy retrofit options.

NDAA-compliant and purpose-built for indoor installations, the PM8GD-WH helps you expand paging and monitoring coverage without sacrificing clarity. Specify this pendant speaker for your next security, surveillance or PA project—contact us for system design and volume pricing.

Features

  • Delivers clear, intelligible paging and background audio for security, surveillance and monitoring areas
  • High-efficiency 8in GD coaxial driver (96 dB) reduces amplifier load so you can deploy more speakers per channel
  • 70V taps at 1, 2, 4 and 8W plus 8Ω direct input for flexible system design and easy scaling
  • Wide 120-degree coverage ensures even voice distribution and minimizes dead zones in open ceilings
  • Concealed terminal block, 3 meters of cable and included mounting hardware speed installation and preserve a clean ceiling appearance
  • Pendant design compatible with standard 3/4in ceiling fan hardware for straightforward retrofits and new builds
24 of 24 specifications
Technical specifications for AtlasIED PM8GD-WH 8" 2-Way High Efficiency Pendent Speaker with 8W 70V Transformer, White
General Information
Brand Name AtlasIED
Manufacturer Atlas Sound LP.
Product Name 8" 2-Way High Efficiency Pendant Speaker with 8-Watt 70V Transformer - White
Product Type Speaker
Product Model PM8GD-WH
Product Series GD
Manufacturer Part Number PM8GD-WH
Technical Information
Material Treated Paper
Sensitivity 96dB
Speaker Size 8"
Crossover Type 2-way
Audio
RMS Output Power 15W
Maximum Frequency Response 15 kHz
Minimum Frequency Response 55Hz
Certifications
TAA Compliant No
NDAA Compliant Yes
Environmental Conditions
Sound Emission 96 dB
Physical Characteristics
Size 8"
Color White
Product Information
Diameter 8"
Mount Type Ceiling Mount, Pendant Mount
Miscellaneous
Features 3 Meters of 2mm Cable & Mounting Hardware Included, 70.7V Taps @ 1, 2, 4, 8 Watts and 8Ω Direct Input via Concealed Terminal Block, 8" GD87 Driver Provides 120 Degree (60 Degree Off-Axis) Coverage in the 2kHz Octave Band, Compatible with Standard 3/4" Ceiling Fan Hardware, Extreme High Efficiency (96dB 1W/1m) Allows for Lower Tap Settings and More Loudspeakers per Amp Channel in Many Installations
Indoor/Outdoor Indoor
Country of Origin TW
