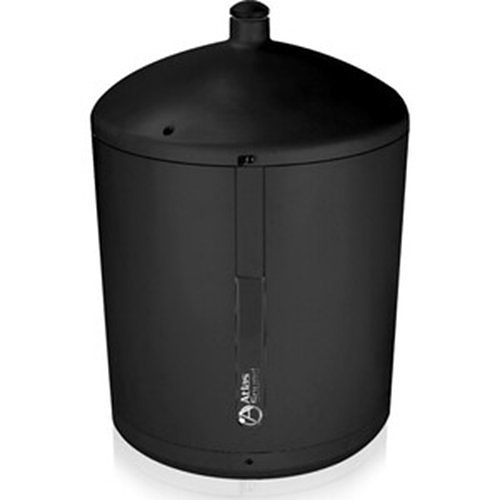

AtlasIED PM8SUB-B 8" Pendant Mount Subwoofer with 60W 70.7V Transformer, Black
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Key Features
- Converts limited ceiling space into powerful low-frequency reinforcement for clearer music, paging and security audio
- Integrated 60W 70.7V transformer with multiple taps simplifies distributed audio and paging system integration
- Compact 8" down-firing driver delivers natural bass extension (46–160 Hz) without bulky enclosures, ideal for low-clearance ceilings
- Quick pendant installation with 3 m cable and compatibility with standard 3/4" ceiling fan hardware reduces labor and retrofit time
- High sensitivity and controlled output provide consistent bass for commercial, retail, surveillance and monitoring environments
Quick Specifications
- Product Model
- PM8SUB
- Brand Name
- AtlasIED
- Product Name
- 8" Pendant Mount Subwoofer With 60-Watt 70.7v Transformer - Black
- Product Type
- Woofer
Product Information Tabs
Overview
Bring controlled, impactful low end to commercial audio, paging and security monitoring spaces with the AtlasIED PM8SUB-B pendant mount subwoofer. This professional subwoofer combines an 8" Strategy II driver in a compact down-firing enclosure with an integrated 60W 70.7V transformer (selectable taps) so integrators can quickly add punch and clarity to background music, paging and security audio without a separate amplifier. Rated for a broad usable response down to 46 Hz (up to 160 Hz) and high sensitivity, the PM8SUB-B delivers tight, natural bass that enhances speech intelligibility and low-frequency ambience in retail, houses of worship, surveillance control rooms and mixed-use commercial spaces. Installation is fast: the unit ships with 3 meters of cable and mounting hardware and works with standard 3/4" ceiling fan down-pipes for angled or hard-ceiling attachments. NDAA-compliant and engineered for indoor commercial use, the PM8SUB-B is a practical choice when you need reliable low-frequency reinforcement that integrates seamlessly with paging, security and AV systems. Upgrade your audio and monitoring setup—specify the AtlasIED PM8SUB-B for confident, room-filling bass.
Features
- Converts limited ceiling space into powerful low-frequency reinforcement for clearer music, paging and security audio
- Integrated 60W 70.7V transformer with multiple taps simplifies distributed audio and paging system integration
- Compact 8" down-firing driver delivers natural bass extension (46–160 Hz) without bulky enclosures, ideal for low-clearance ceilings
- Quick pendant installation with 3 m cable and compatibility with standard 3/4" ceiling fan hardware reduces labor and retrofit time
- High sensitivity and controlled output provide consistent bass for commercial, retail, surveillance and monitoring environments
| General Information | |
|---|---|
| Brand Name | AtlasIED |
| Manufacturer | AtlasIED |
| Product Name | 8" Pendant Mount Subwoofer With 60-Watt 70.7v Transformer - Black |
| Product Type | Woofer |
| Product Model | PM8SUB |
| Product Series | PM |
| Manufacturer Part Number | PM8SUBB |
| Technical Information | |
| Impedance | 8 ohms |
| Sensitivity | 92dB |
| Application/Usage | Commercial |
| Audio | |
| RMS Output Power | 150W |
| Maximum Frequency Response | 160 Hz |
| Minimum Frequency Response | 46Hz |
| Certifications | |
| TAA Compliant | No |
| NDAA Compliant | Yes |
| Physical Characteristics | |
| Color | Black |
| Height | 16.6" |
| Form Factor | Pendant Mount |
| Product Information | |
| Diameter | 12.3" |
| Mount Type | Pendant Mount |
| Warranty | |
| Limited Warranty | 1-Year |
| Miscellaneous | |
| Indoor/Outdoor | Indoor |
| Country of Origin | TW |
