Hanwha PNB-A6001/KAP Series 2MP AI WDR Box IP Camera, Lens Not Included, Black, TAA Compliant

SKU: PNB-A6001KAP MPN: PNB-A6001/KAP Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

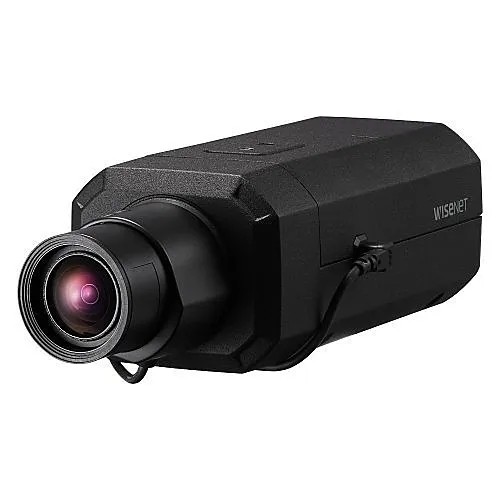

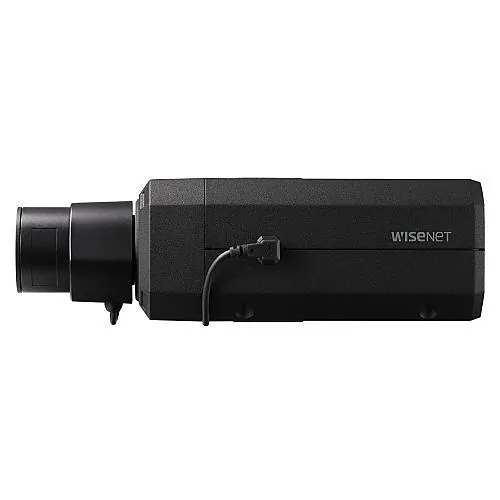

Image of SQ-PBA601KAP
Product images for Hanwha PNB-A6001/KAP Series 2MP AI WDR Box IP Camera, Lens Not Included, Black, TAA Compliant. 3 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Dramatically reduces false alarms with onboard deep-learning AI that classifies people and vehicles for more efficient, actionable alerts
  • Delivers clear, usable images in challenging light with 2MP resolution, extreme 120 dB WDR and low-light sensitivity for reliable 24/7 surveillance
  • Speeds forensic search with attribute extraction and BestShot re-identification to quickly locate persons, vehicles and other objects
  • Flexible deployment: C/CS lens mount (lens not included) and up to 120 fps support for high-motion areas like transit and manufacturing monitoring
  • Secure, standards-ready design with TAA compliance, TPM/FIPS-grade security and VMS plugins for Milestone, Genetec and Wisenet integrations

Quick Specifications

Product Model
PNB-A6001/KAP
Brand Name
Hanwha Vision
Product Name
2MP Box AI camera
Product Type
Box Camera
View Full Technical Specifications

Product Information Tabs

Overview

Optimize perimeter and critical-area security with the Hanwha Vision PNB-A6001/KAP Series 2MP AI WDR Box IP Camera. Engineered for professional surveillance and monitoring, this box camera uses deep-learning analytics to filter environmental motion and deliver accurate person and vehicle detection—cutting false alarms and focusing operator attention where it matters. Capture detailed Full HD video at 2MP with up to 120 fps and extreme 120 dB WDR for usable evidence in high-contrast and low-light scenes. BestShot and attribute extraction accelerate forensic review by sending only the most relevant images and metadata (age, clothing color, vehicle type), while H.265 and WiseStream compression reduce bandwidth and storage costs. The camera supports C/CS lenses (lens not included) for tailored focal lengths, and integrates with Milestone, Genetec and Wisenet VMS for centralized monitoring and analytics. Built with TPM/FIPS-grade security and TAA compliance, the PNB-A6001/KAP is ideal for retail, transportation, campus and perimeter security deployments. Contact sales or add to your surveillance design to improve detection accuracy and streamline incident response.

Features

  • Dramatically reduces false alarms with onboard deep-learning AI that classifies people and vehicles for more efficient, actionable alerts
  • Delivers clear, usable images in challenging light with 2MP resolution, extreme 120 dB WDR and low-light sensitivity for reliable 24/7 surveillance
  • Speeds forensic search with attribute extraction and BestShot re-identification to quickly locate persons, vehicles and other objects
  • Flexible deployment: C/CS lens mount (lens not included) and up to 120 fps support for high-motion areas like transit and manufacturing monitoring
  • Secure, standards-ready design with TAA compliance, TPM/FIPS-grade security and VMS plugins for Milestone, Genetec and Wisenet integrations
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 2MP Box AI camera
Product Type Box Camera
Product Model PNB-A6001/KAP
Product Series P
Manufacturer Part Number PNB-A6001/KAP
Technical Information
Video Formats H.264, H.265, MJPEG
Lens Mount Type C, CS
Maximum Aperture f/1.2
Maximum Frame Rate 120fps
Connectivity Technology Wired
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Certifications
TAA Compliant Yes
Display & Graphics
Maximum Video Resolution 1920 x 1080
Environmental Conditions
Operating Humidity 90% RH
Maximum Operating Temperature 131°F
Minimum Operating Temperature 14°F
Exposure
Minimum Illumination 0.0024 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Lens Included No
Network & Communication
Remote Management Yes
Physical Characteristics
Color Black
Weight 1.94lb
Power Description
Input Voltage 12V DC
Product Information
Mount Type Box Mount, Wall Mount
Storage
Storage Type Memory Card
Recording Formats Full HD
Video
Maximum Resolution 1280 x 720
Analog Video Signal Format CVBS
Warranty
Limited Warranty 3-Year
Miscellaneous
Features 2MP resolution at 120fps, BestShot, Extreme WDR, Object detection and Attribute Extraction (Person, Face, Vehicle, License Plate), Simple focus, Triple codec H.265/H.264/MJPEG, True D/N, USB port for easy installation, WDR (120dB), WiseStream III compression technology
Country of Origin KR
