Hanwha PNM-9084QZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Simplified installation and remote positioning with motorized PTRZ—reduce ladder time and service visits
- Four independent 2MP sensors delivered over a single IP address for wide-area coverage with separate microSD recording per channel
- WiseStream II and H.265 encoding for high-quality 2MP video at up to 60fps while cutting bandwidth and storage costs
- Rugged, all-weather design (IP66, IK10, NEMA4X) and TAA compliance for reliable outdoor security and procurement-friendly deployments
- HPoE power support (IEEE802.3bt) and multiple mount options to speed installation and simplify IP surveillance rollouts
Quick Specifications
- Product Model
- PNM-9084QZ1/KUS
- Brand Name
- Hanwha Vision
- Product Name
- 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera
- Product Type
- Camera
Frequently Bought Together
Hanwha PNM-9084QZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3-6mm Motorized Varifocal Lens, White, TAA Compliant
$1,578.53
4 items selected
Total: $2,665.71
Product Information Tabs
Overview

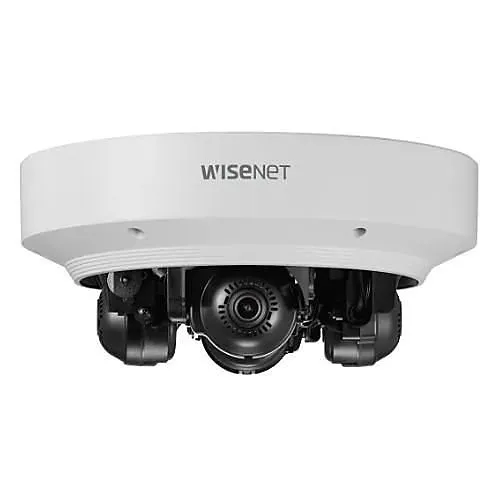

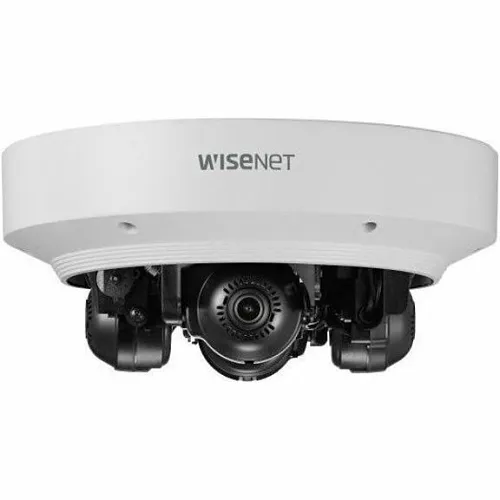

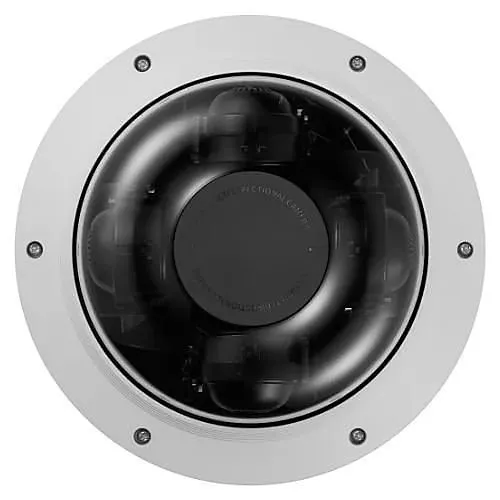

Designed to simplify large-area surveillance, the Hanwha Vision PNM-9084QZ1 multi-directional PTRZ panoramic camera delivers comprehensive monitoring with fewer devices. This 8MP solution (4 x 2MP sensors) gives you four independent 2MP channels under a single IP address, enabling broad coverage and reduced NVR load while maintaining high detail. The motorized 3–6mm varifocal lens and full PTRZ control allow installers to remotely pan, tilt, rotate and zoom—cutting ladder time and onsite adjustments. With WiseStream II and H.265 compression, you get efficient streaming at up to 60 fps per 2MP channel to lower bandwidth and storage costs without sacrificing image quality.
Built for real-world security, the PNM-9084QZ1 is IP66, IK10 and NEMA4X rated for harsh environments and includes HPoE support and a power injector for simplified network deployments. Features like four microSD slots (one per channel), 90° look-down tilt, and intelligent detection (motion, loitering, tamper) make it ideal for parking lots, campuses, transit hubs and critical infrastructure monitoring. Choose this Hanwha Vision panoramic camera to streamline installation, maximize coverage and reduce operational expenses—contact us to specify the right configuration for your surveillance project.
Features
- Simplified installation and remote positioning with motorized PTRZ—reduce ladder time and service visits
- Four independent 2MP sensors delivered over a single IP address for wide-area coverage with separate microSD recording per channel
- WiseStream II and H.265 encoding for high-quality 2MP video at up to 60fps while cutting bandwidth and storage costs
- Rugged, all-weather design (IP66, IK10, NEMA4X) and TAA compliance for reliable outdoor security and procurement-friendly deployments
- HPoE power support (IEEE802.3bt) and multiple mount options to speed installation and simplify IP surveillance rollouts
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera |
| Product Type | Camera |
| Product Model | PNM-9084QZ1/KUS |
| Product Series | P |
| Manufacturer Part Number | PNM-9084QZ1/KUS |
| Technical Information | |
| Lens Type | Varifocal |
| Optical Zoom | 2x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2.2 |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 57° |
| Field of View (Horizontal) | 107° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.004 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3-6mm |
| Lens Included | Yes |
| Minimum Aperture | f/3.1 |
| Maximum Focal Length | 6mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 6.6lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 9.88" |
| Mount Type | Ceiling Mount, Conduit Mount, Desktop Mount, Gang Box Mount, Pendant Mount, Rack Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 4x microSD/SDHC/SDXC Memory Card slots, one for each channel, Full 90° "look down" tilt capability, Hallway View, Loitering, directional detection, fog detection, tampering, motion detection, object enter or exit an area, Maximum 8MP at 60fps, 2MP X 4 sensors using one IP address, Motorized PTRZ function allows for simple adjustment of camera positioning remotely, ideal for difficult to reach locations. Easily adjust Pan around the track, Tilt, rotation, zoom and focus, Motorized vari-focal 3.0- 6mm (FOV - 107° - 56.3°), Triple codec - H.265, H.264 and MJPEG multiple streaming, WDR 120dB at 2MP at 60fps, WiseStream II compression technology |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
