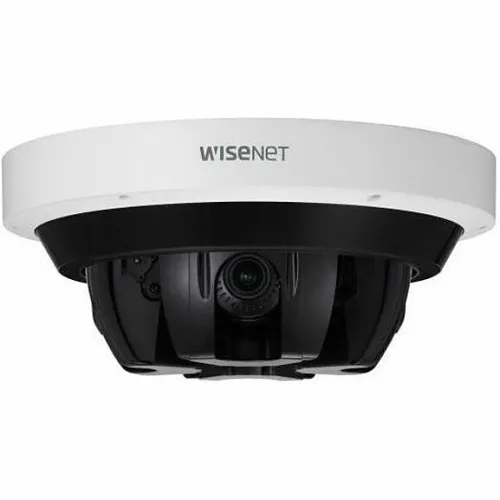

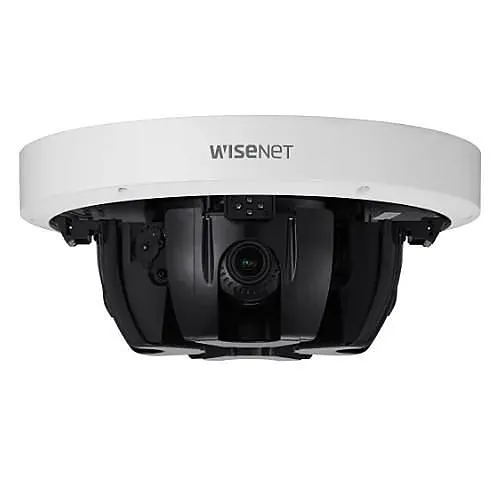

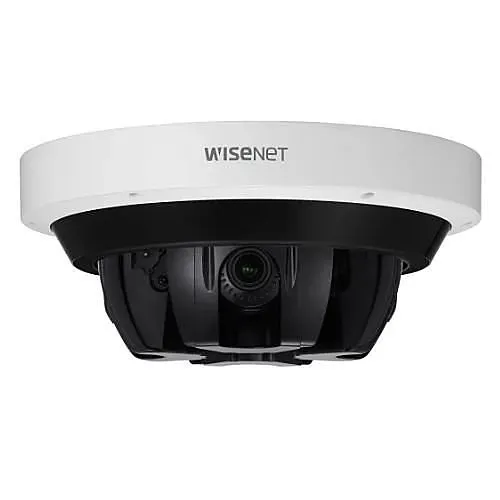

Hanwha PNM-9084RQZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3.2-10mm Motorized Varifocal Lens, White, TAA Compliant
Image of 4
Key Features
- Simplifies installation and commissioning with motorized PTRZ and remote setup, saving time and eliminating repeated ladder adjustments
- Covers wide areas with four 2MP sensors (8MP effective) using a single IP address for consolidated monitoring and reduced recorder licensing
- Integrated IR that rotates with each lens delivers clear low-light imaging up to 30 m (98 ft) for reliable night surveillance
- H.265 with WiseStream II reduces bandwidth and storage costs while maintaining full HD streams at up to 60 fps per sensor
- Rugged outdoor design (IP66, IK10, NEMA4X) and TAA compliance support demanding deployments and public-sector procurement
- Flexible 3.2–10 mm motorized varifocal lens lets integrators fine-tune fields of view for entrances, perimeters, and complex sites
Quick Specifications
- Product Model
- PNM-9084RQZ1/KUS
- Brand Name
- Hanwha Vision
- Product Name
- 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera
- Product Type
- Camera
Frequently Bought Together
Hanwha PNM-9084RQZ1/KUS Series x 2MP Multi-Directional PTRZ IP Camera, 3.2-10mm Motorized Varifocal Lens, White, TAA Compliant
$2,066.44
4 items selected
Total: $3,153.62
Product Information Tabs
Overview
Reduce blind spots and simplify large-area monitoring with the Hanwha Vision PNM-9084RQZ1 multi-directional PTRZ IP camera. Designed for security and surveillance environments, this panoramic camera houses four 2MP sensors (8MP effective) in a compact, ladder-friendly body and uses a single IP address to streamline integration and recording. The motorized 3.2–10 mm varifocal lens and remote PTRZ controls let installers and operators adjust fields of view without physical repositioning, speeding deployment and ongoing tuning. Integrated IR that rotates with each lens provides clear night imaging up to 30 meters (98 ft), while H.265 and WiseStream II dramatically lower bandwidth and storage requirements for continuous monitoring. Built to withstand harsh outdoor conditions, the PNM-9084RQZ1 meets IP66, IK10 and NEMA4X ratings and is TAA compliant for government and enterprise buying. Ideal for campuses, transportation hubs, retail perimeters and city surveillance, this Hanwha Vision panoramic camera delivers flexible coverage, resilient performance and efficient operation — contact sales or add to cart to specify for your next security project.
Features
- Simplifies installation and commissioning with motorized PTRZ and remote setup, saving time and eliminating repeated ladder adjustments
- Covers wide areas with four 2MP sensors (8MP effective) using a single IP address for consolidated monitoring and reduced recorder licensing
- Integrated IR that rotates with each lens delivers clear low-light imaging up to 30 m (98 ft) for reliable night surveillance
- H.265 with WiseStream II reduces bandwidth and storage costs while maintaining full HD streams at up to 60 fps per sensor
- Rugged outdoor design (IP66, IK10, NEMA4X) and TAA compliance support demanding deployments and public-sector procurement
- Flexible 3.2–10 mm motorized varifocal lens lets integrators fine-tune fields of view for entrances, perimeters, and complex sites
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 8MP (2MP x 4) Multi-Sensor, Multi-Directional PTRZ Camera |
| Product Type | Camera |
| Product Model | PNM-9084RQZ1/KUS |
| Product Series | P |
| Manufacturer Part Number | PNM-9084RQZ1/KUS |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 3.2x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3.2mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 57.4° |
| Field of View (Horizontal) | 109° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 1920 x 1080 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.2-10mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.9 |
| Maximum Focal Length | 10mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 11.5lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 12.4" |
| Mount Type | Desktop Mount, Rack Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | Full HD |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | ,, , NEMA4X, 2MP x 4 Channel multi-directional camera, using one IP address, 3.2-10mm(3.1x) motorized PTRZ varifocal lens, 60fps at 2MP(H.265, H.264), Easy Gangbox mounting installation, H.265, H.264, MJPEG codec, Multi streaming, Integrated IR that rotates with camera head, viewable length - 30m, Motorized PTRZ for easy installation and remote adjustment of entire FoV, Video analytics, WiseStreamII |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
