Hanwha PNM-C12083RVD/KEX 2x6MP AI Outdoor IR Vandal Dome IP Camera with 3.54-6.69 mm Lens, TAA Compliant, White

SKU: PNM-C12083RVDKEX MPN: PNM-C12083RVD/KEX Hanwha Vision

Special Order Item

This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.

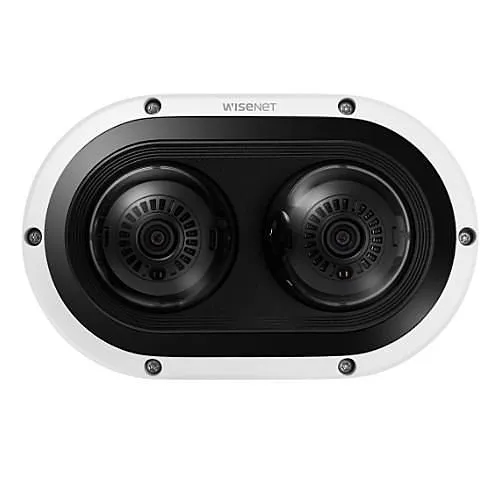

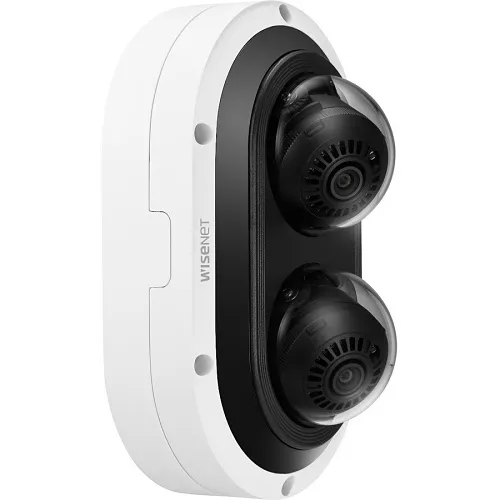

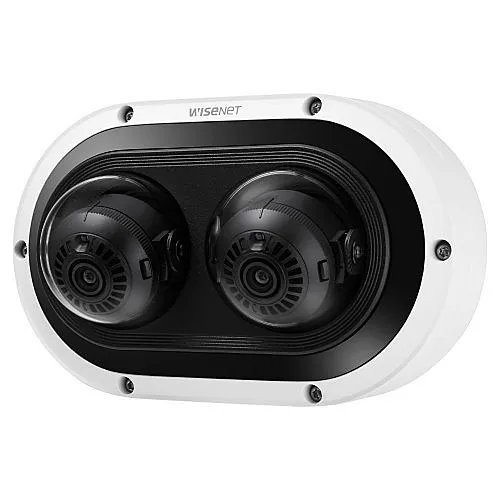

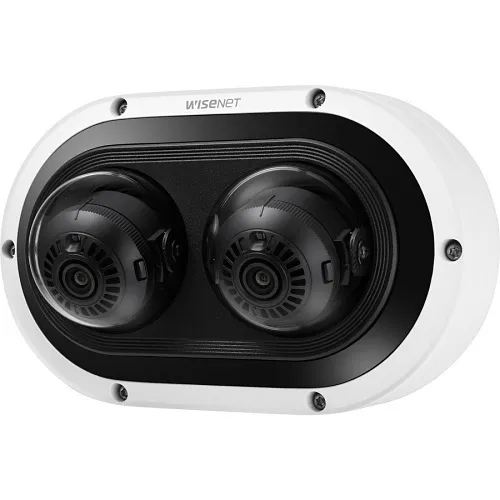

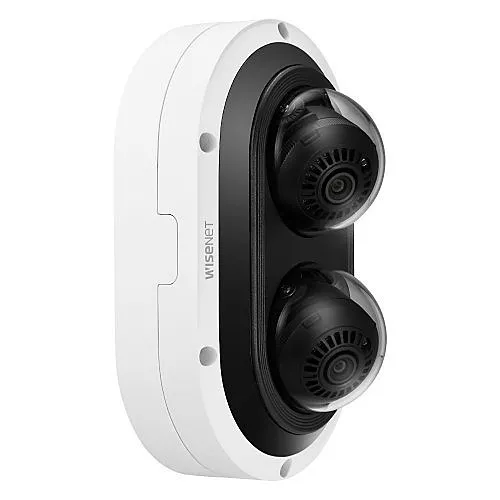

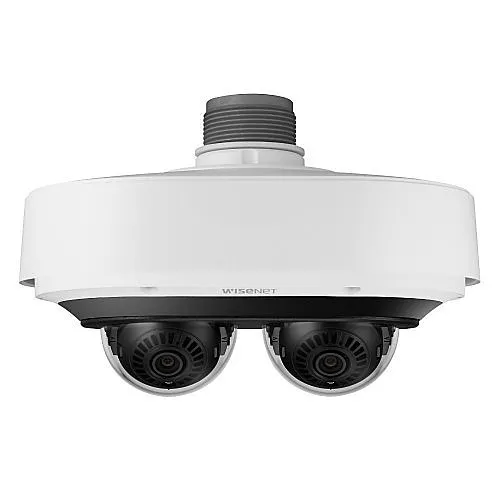

Image of SQ-C1283RVKX
Product images for Hanwha PNM-C12083RVD/KEX 2x6MP AI Outdoor IR Vandal Dome IP Camera with 3.54-6.69 mm Lens, TAA Compliant, White. 7 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Wide-area, multi-directional surveillance with two 6MP sensors for comprehensive coverage and fewer cameras to manage
  • Embedded AI analytics (person, face, vehicle, license plate) that reduce false alarms and speed incident response
  • Rugged outdoor reliability: IK10 vandal resistance, IP66/NEMA4X weatherproofing and -40°C to 55°C operation for harsh environments
  • Clear low-light performance with IR up to 25m and extremeWDR for reliable monitoring day or night
  • Simplified deployment and storage with PoE+ power, edge microSD support (up to 512GB) and TAA/FIPS-compliant security features

Quick Specifications

Product Model
PNM-C12083RVD/KEX
Brand Name
Hanwha Vision
Product Name
6MP x 2 AI IR Multi-directional Dome
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha PNM-C12083RVD/KEX 2x6MP AI Outdoor IR Vandal Dome IP Camera with 3.54-6.69 mm Lens, TAA Compliant, White

Hanwha PNM-C12083RVD/KEX 2x6MP AI Outdoor IR Vandal Dome IP Camera with 3.54-6.69 mm Lens, TAA Compliant, White

$1,470.90

Frequently Bought Together (3 items)

4 items selected

Total: $2,558.08

Product Information Tabs

Overview

Secure large outdoor spaces with the Hanwha Vision PNM-C12083RVD/KEX panoramic dome camera — a purpose-built surveillance solution that reduces blind spots and simplifies monitoring. This multi-directional IP camera combines two 6MP sensors and motorized 3.54–6.69 mm varifocal lenses to deliver high-resolution coverage while minimizing the number of fixtures required. Built-in AI analytics classify objects (people, faces, vehicles, license plates) and trigger IVA rules to cut down on false alerts and accelerate investigations. Designed for demanding installations, the vandal-rated housing (IK10), IP66/NEMA4X weatherproofing, PoE+ support and -40°C to 55°C operating range ensure continuous operation in extreme conditions. Nighttime and low-contrast scenes are handled by 25 m IR illumination and extreme WDR, preserving critical detail for security and monitoring. TAA compliance and FIPS 140-2 support make this model suitable for government and enterprise deployments that require enhanced supply-chain and cryptographic assurance. Ideal for perimeter, campus, transportation and critical infrastructure surveillance — contact your Hanwha Vision reseller to specify the PNM-C12083RVD/KEX for your next security project.

Features

  • Wide-area, multi-directional surveillance with two 6MP sensors for comprehensive coverage and fewer cameras to manage
  • Embedded AI analytics (person, face, vehicle, license plate) that reduce false alarms and speed incident response
  • Rugged outdoor reliability: IK10 vandal resistance, IP66/NEMA4X weatherproofing and -40°C to 55°C operation for harsh environments
  • Clear low-light performance with IR up to 25m and extremeWDR for reliable monitoring day or night
  • Simplified deployment and storage with PoE+ power, edge microSD support (up to 512GB) and TAA/FIPS-compliant security features
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 6MP x 2 AI IR Multi-directional Dome
Product Type Dome Camera
Product Model PNM-C12083RVD/KEX
Manufacturer Part Number PNM-C12083RVD/KEX
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 1.9x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.67
Night Vision Type Infrared
Maximum Frame Rate 15fps
Minimum Focal Length 3.54mm
Connectivity Technology Wired
Field of View (Vertical) 51°
Field of View (Horizontal) 96°
Effective Camera Resolution 6MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 82.02 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66, IP67
Display & Graphics
Number of Sensors 2
Maximum Video Resolution 3328 x 1872
Environmental Conditions
Operating Humidity 95% RH (Non-condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.016 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.54-6.69mm
Lens Included Yes
Minimum Aperture f/2.64
Maximum Focal Length 6.69mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Depth 5.31"
Width 8.46"
Height 3.67"
Weight 2.93lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 3-Year
Miscellaneous
Features , NEMA4X,, Analytics events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Appear/Disappear, Analytics events based on AI engine - Object detection(Person/Face/Vehicle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Day and Night (ICR), DIS and Handover, ExtremeWDR (120dB), FIPS 140-2 compliant, Micro SD card slot supports up to 512GB, Operating temperature - -40°C - 55°C(-40°F - 131°F), Power - PoE
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
