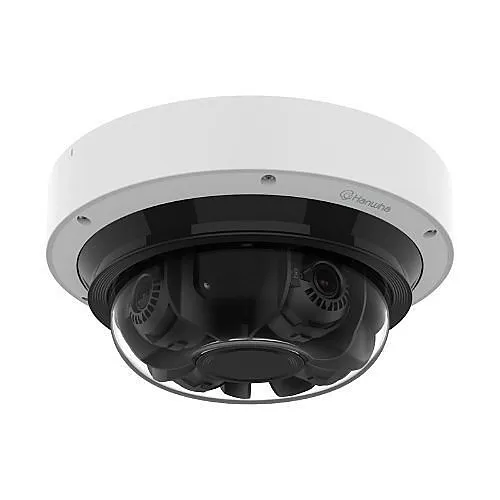

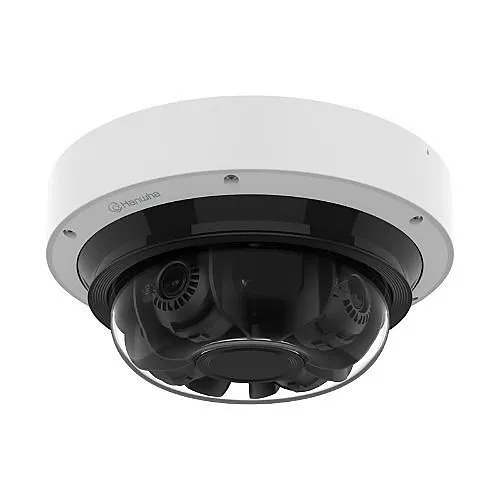

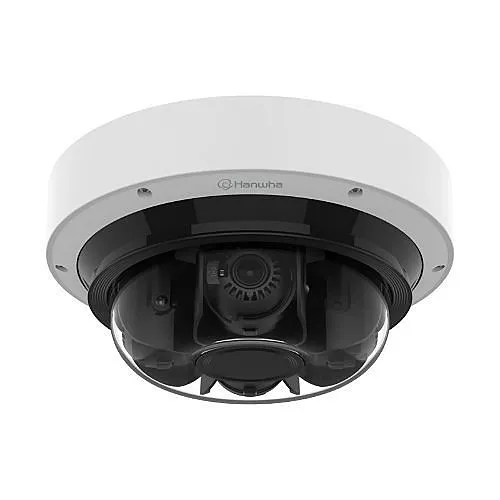

Hanwha PNM-C16083RVQ 4MP 4-Channel Outdoor Vandal-Rated IP Camera with 3.3-5.7mm Lens

SKU: PNM-C16083RVQ Hanwha Vision
Image of SQ-PC1683RVQ
Product images for Hanwha PNM-C16083RVQ 4MP 4-Channel Outdoor Vandal-Rated IP Camera with 3.3-5.7mm Lens. 5 image(s) available. Click on image to view full size.
TAA Compliant

Key Features

  • Complete multi-angle coverage with four 4MP sensors to eliminate blind spots and reduce the number of cameras required
  • AI-enhanced, license-free analytics (human/vehicle/face detection) to cut false alarms and speed incident investigation
  • Single IP address streamlines network setup and reduces bandwidth/storage with H.265 compression
  • Rugged outdoor design (IP66, IK10) and wide operating temperatures for reliable 24/7 surveillance in harsh environments
  • Integrated rotating WiseIR with 15 m night range and varifocal 3.3–5.7 mm lens for consistent low-light monitoring

Quick Specifications

Product Model
PNM-C16083RVQ
Brand Name
Hanwha Vision
Product Name
16MP 4MP x 4, AI, IR Multi-directional Outdoor Camera
Product Type
Network Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha PNM-C16083RVQ 4MP 4-Channel Outdoor Vandal-Rated IP Camera with 3.3-5.7mm Lens

Hanwha PNM-C16083RVQ 4MP 4-Channel Outdoor Vandal-Rated IP Camera with 3.3-5.7mm Lens

$1,744.19

Frequently Bought Together (3 items)

4 items selected

Total: $2,831.37

Product Information Tabs

Overview

Deliver dependable, wide-area surveillance without blind spots. The Hanwha Vision PNM-C16083RVQ panoramic network camera combines four 4MP sensors into a single IP device to provide continuous multi-directional monitoring ideal for campuses, transportation hubs, retail perimeters, and critical infrastructure. Built-in AI analytics—human, vehicle and face detection plus cross-line and motion filters—reduces false alarms and accelerates forensic search in your VMS. With H.265 compression and multi-streaming at up to 30 fps, the camera minimizes bandwidth and storage costs while preserving evidence-quality video. The varifocal 3.3–5.7 mm lens and rotating WiseIR deliver consistent night coverage to 15 m, and the IP66/IK10-rated housing withstands dust, water and impact for outdoor deployments from -40°F to 131°F. Easy installation features like a USB port and single-IP multi-channel streaming simplify commissioning for IT and security teams. For robust, scalable surveillance and reliable monitoring across large sites, specify the Hanwha Vision PNM-C16083RVQ—contact your supplier to schedule a demo or deploy today.

Features

  • Complete multi-angle coverage with four 4MP sensors to eliminate blind spots and reduce the number of cameras required
  • AI-enhanced, license-free analytics (human/vehicle/face detection) to cut false alarms and speed incident investigation
  • Single IP address streamlines network setup and reduces bandwidth/storage with H.265 compression
  • Rugged outdoor design (IP66, IK10) and wide operating temperatures for reliable 24/7 surveillance in harsh environments
  • Integrated rotating WiseIR with 15 m night range and varifocal 3.3–5.7 mm lens for consistent low-light monitoring
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Group
Product Name 16MP 4MP x 4, AI, IR Multi-directional Outdoor Camera
Product Type Network Camera
Product Model PNM-C16083RVQ
Manufacturer Part Number PNMC16083RVQ
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 1.7x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.5
Night Vision Type Infrared
Maximum Frame Rate 30fps
Minimum Focal Length 3.3mm
Connectivity Technology Wired
Field of View (Vertical) 54°
Field of View (Horizontal) 100°
Effective Camera Resolution 4MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 49.21 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Number of Sensors 4
Maximum Video Resolution 1600 x 1200
Environmental Conditions
Operating Humidity 0.95
Maximum Operating Temperature 131°F (55°C)
Minimum Operating Temperature -40°F (-40°C)
Exposure
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.3-5.7mm
Lens Included Yes
Minimum Aperture f/1.9
Maximum Focal Length 5.7mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 6.02lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 9.8"
Mount Type Conduit Mount, Gang Box Mount, Pendant Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Miscellaneous
Features Cross Line Detection, Day/Night, Face Detection, Gain Control, Human Detection, Motion Detection, Privacy Masking, Vehicle Detection, White Balance, Wide Dynamic Range
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
