Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection, 3.3-5.7mm Motorized Varifocal Lens

SKU: PNM-C32083RVQ Hanwha Vision

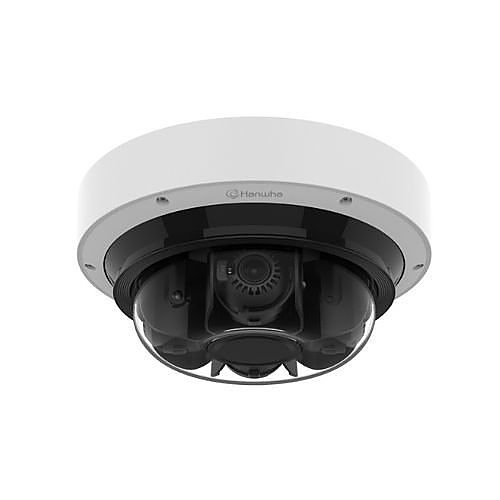

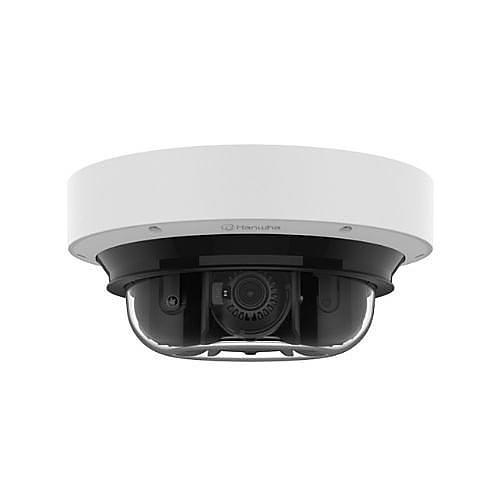

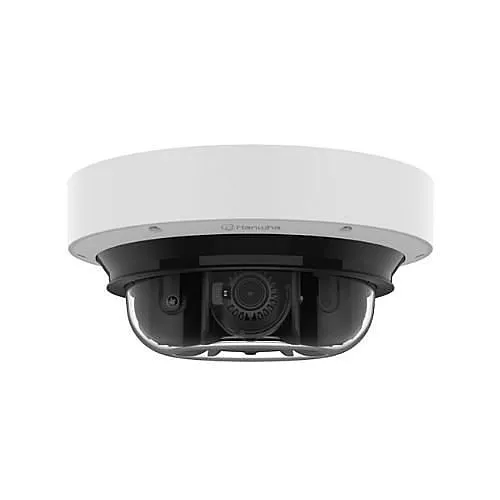

Product images for Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection, 3.3-5.7mm Motorized Varifocal Lens. 3 image(s) available. Click on image to view full size.
Featured TAA Compliant

Key Features

  • Reduce false alarms with built-in Wisenet AI analytics that classifies people and vehicles for more accurate real-time monitoring
  • Four 8MP channels in one IP address provide multi-directional 4K coverage while simplifying network and installation costs
  • Durable IP66 / IK10 housing and integrated IR deliver reliable outdoor surveillance in harsh environments and low light
  • Motorized 3.3–5.7mm varifocal lens lets you remotely fine-tune field of view for entrances, lanes, and perimeters
  • Efficient H.265/H.264 compression and onboard storage options streamline recording, forensic review, and VMS integration

Quick Specifications

Brand Name
Hanwha Vision
Manufacturer
Hanwha Vision
Product Name
4K x 4 AI IR Multi-directional Dome
Product Type
Dome Camera
View Full Technical Specifications

Frequently Bought Together

This Item
Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection, 3.3-5.7mm Motorized Varifocal Lens

Hanwha PNM-C32083RVQ 4K 4-Channel Smart Camera with IP66 Protection, 3.3-5.7mm Motorized Varifocal Lens

$1,958.39

Frequently Bought Together (3 items)

4 items selected

Total: $3,045.57

Product Information Tabs

Overview

Protect large outdoor areas with Hanwha Vision’s PNM-C32083RVQ panoramic camera — a 4-channel, 4K multi-directional dome designed for professional security and surveillance. Edge-based Wisenet AI analytics detects and classifies people and vehicles in real time, reducing false alarms and accelerating investigative workflows. Capture critical detail with true 4K resolution and a 3.3–5.7mm motorized varifocal lens that lets installers remotely adjust the field of view (up to 109° horizontal) to suit entrances, lanes, or wide perimeters.

Built for demanding deployments, the PNM-C32083RVQ features IP66 and IK10 protection and integrated IR for reliable night monitoring up to ~65 ft. Consolidating four 8MP channels behind a single IP address cuts cabling and network complexity, while H.265/H.264 video compression and onboard storage simplify recording and integration with VMS platforms. Ideal for retail, transportation hubs, campuses, and critical infrastructure, this Hanwha Vision panoramic camera enhances situational awareness, reduces operational cost, and improves monitoring efficiency. Contact your security supplier to configure and deploy this camera in your next surveillance project.

Features

  • Reduce false alarms with built-in Wisenet AI analytics that classifies people and vehicles for more accurate real-time monitoring
  • Four 8MP channels in one IP address provide multi-directional 4K coverage while simplifying network and installation costs
  • Durable IP66 / IK10 housing and integrated IR deliver reliable outdoor surveillance in harsh environments and low light
  • Motorized 3.3–5.7mm varifocal lens lets you remotely fine-tune field of view for entrances, lanes, and perimeters
  • Efficient H.265/H.264 compression and onboard storage options streamline recording, forensic review, and VMS integration
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 4K x 4 AI IR Multi-directional Dome
Product Type Dome Camera
Product Model PNM-C32083RVQ
Manufacturer Part Number PNM-C32083RVQ
Technical Information
Lens Type Varifocal
Night Vision Yes
Optical Zoom 1.7x
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.5
Night Vision Type Infrared
Maximum Frame Rate 20fps
Minimum Focal Length 3.3mm
Connectivity Technology Wired
Field of View (Vertical) 55°
Field of View (Horizontal) 109°
Effective Camera Resolution 32MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 65.62 ft
Certifications
TAA Compliant Yes
Ingress Protection Rating IP66
Display & Graphics
Number of Sensors 4
Maximum Video Resolution 3840 x 2160
Environmental Conditions
Operating Humidity 0-95% RH (Non-condensing)
Maximum Operating Temperature 131°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.01 lux
Longest Shutter Speed 2 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3.3-5.7mm
Lens Included Yes
Minimum Aperture f/1.9
Maximum Focal Length 5.7mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Weight 6.22lb
Durability Dustproof, Impact Resistant, Waterproof
Form Factor Dome
Product Information
Diameter 9.84"
Mount Type Conduit Mount, Gang Box Mount, Pendant Mount
Storage
Storage Type Memory Card
Recording Formats 4K
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features 120dB WDR, 15fps at 8MP (H.265, H.264) AI ON, 20fps at 8MP (H.265, H.264) AI OFF, 3.3-5.7mm (FoV H - 109°-56°, V - 55°-31°) motorized varifocal lens, 8MP x 4 Channel multi-directional camera, using one IP address, Analytics events based on AI engine - Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, H.265, H.264, MJPEG codec, Multi-streaming, I/O Box compatibility for audio and alarm I/O, Integrated IR that rotates with camera head, IR viewable length [PoE ] 15m (49ft)/[HPoE] 20m (65ft), USB port for easy installation, WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine)
Indoor/Outdoor Outdoor
Country of Origin KR
Impact Protection Rating IK10
