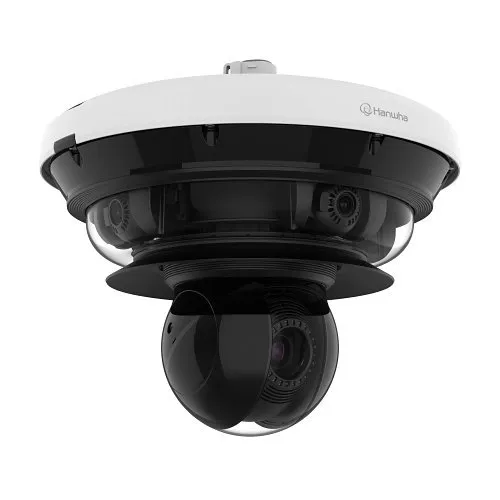

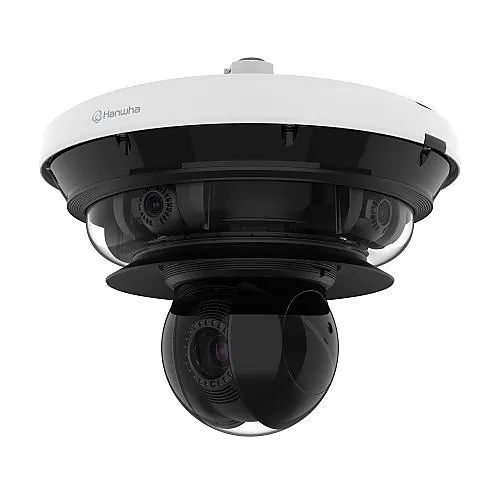

Hanwha PNM-C34404RQPZ 2MP 4-Channel Outdoor IP Dome Camera with 3.3-5.7mm Lens
Image of 4
Key Features
- Complete situational awareness with true 360° panoramic coverage plus a dedicated 2MP PTZ for instant close-ups
- Rapid incident response using 40x optical PTZ zoom, SmartZoom and AI Auto‑Tracking to follow events in real time
- Reliable outdoor performance with IP66 and IK10 ratings, WiseIR long‑range illumination and wide temperature tolerance
- Reduced bandwidth and clearer footage with AI-driven WiseStream and H.265 compression for efficient networked surveillance
- Built‑in analytics (object detection, IVA) that cut false alarms and improve monitoring accuracy across large sites
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 4K x 4 AI IR PTRZ 2MP 40x PTZ
- Product Type
- PTZ Camera
Frequently Bought Together
Hanwha PNM-C34404RQPZ 2MP 4-Channel Outdoor IP Dome Camera with 3.3-5.7mm Lens
$4,651.18
4 items selected
Total: $5,738.36
Product Information Tabs
Overview
Designed for perimeter and large-area security, the Hanwha Vision PNM-C34404RQPZ panoramic IP dome combines 360° multi-sensor coverage with a high-magnification PTZ to give operators both broad situational awareness and rapid, detailed zooming when incidents occur. This outdoor panoramic camera integrates a quad-sensor panoramic head and a 2MP 40x PTZ, enabling continuous monitoring and targeted investigation without blind spots. Built-in AI analytics (person/vehicle detection, IVA rules and SmartZoom), 120 dB WDR and WiseIR long-range illumination help maintain reliable surveillance day or night, while IP66/IK10 ratings and extended temperature tolerance ensure durable, low-maintenance operation in harsh environments. Network-friendly codecs (H.265, WiseStream) lower storage and bandwidth costs for large deployments. Ideal for campuses, critical infrastructure, transportation hubs or perimeter security, the PNM-C34404RQPZ delivers the flexibility and clarity operators need to detect, verify and respond. Contact your Hanwha Vision representative to discuss deployment options or request a demo.
Features
- Complete situational awareness with true 360° panoramic coverage plus a dedicated 2MP PTZ for instant close-ups
- Rapid incident response using 40x optical PTZ zoom, SmartZoom and AI Auto‑Tracking to follow events in real time
- Reliable outdoor performance with IP66 and IK10 ratings, WiseIR long‑range illumination and wide temperature tolerance
- Reduced bandwidth and clearer footage with AI-driven WiseStream and H.265 compression for efficient networked surveillance
- Built‑in analytics (object detection, IVA) that cut false alarms and improve monitoring accuracy across large sites
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4K x 4 AI IR PTRZ 2MP 40x PTZ |
| Product Type | PTZ Camera |
| Product Model | PNM-C34404RQPZ |
| Manufacturer Part Number | PNM-C34404RQPZ |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 1.7x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 60fps |
| Minimum Focal Length | 3.3mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 55° |
| Field of View (Horizontal) | 109° |
| Effective Camera Resolution | 2MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 656.17 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Maximum Operating Temperature | 122°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.01 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 3.3-5.7mm |
| Lens Included | Yes |
| Minimum Aperture | f/1.5 |
| Maximum Focal Length | 5.7mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | PNM-9322VQP |
| Physical Characteristics | |
| Color | White |
| Weight | 17.42lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Product Information | |
| Diameter | 14.95" |
| Mount Type | Pendant Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 4K |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 5-Year |
| Miscellaneous | |
| Features | 120dB WDR, 15FPS AI ON, 20FPS AI OFF, 2MP at 60FPS PTZ with 40x zoom, 4.25-170mm (Optical 40x) lens, 4-Channels at 4K/8MP with motorized PTRZ for easy installation and remote adjustment of the entire FoV, 3.3-5.7mm (FoV H - 109°-56°, V - 55°-31°), Analytics events based on AI engine - Object detection [Person/Vehicle (Car/Bus/Truck/Motorcycle/Bicycle)], IVA (Virtual line/Area, Enter/Exit, Loitering, direction, intrusion), Appear/Disappear, H.265, H.264, MJPEG triple codec, IR viewable [4CH] length 20m (65ft)/[PTZ] WiseIR 200m (656ft), PTZ Auto Tracking, SmartZoom to Preset/IVA Trigger, WiseNR Ⅱ (using AI engine), WiseStreamⅢ (Based on AI engine) |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
