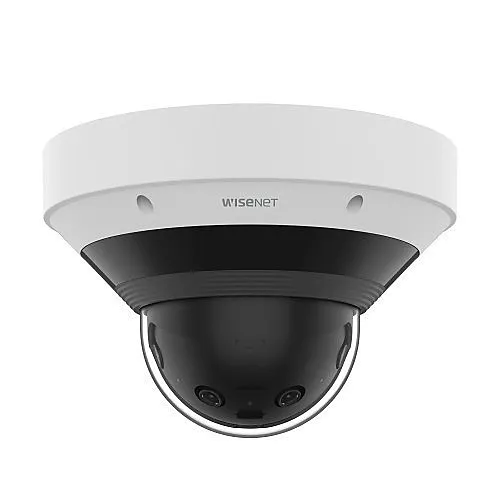

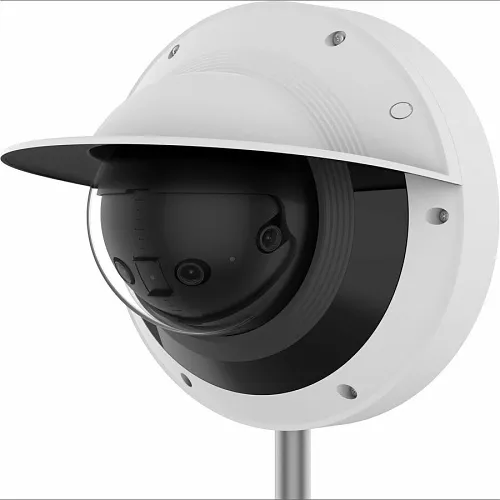

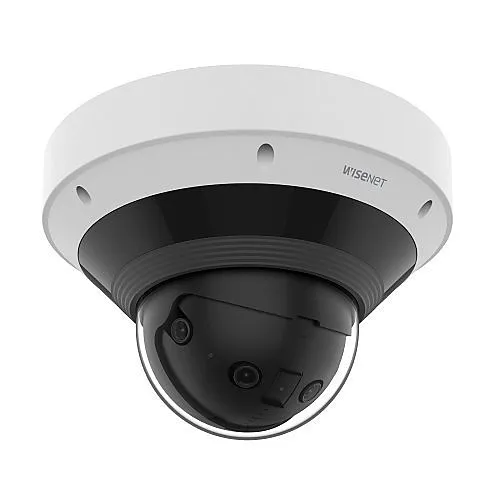

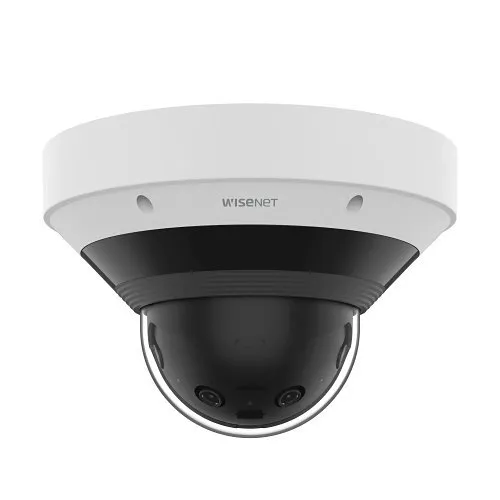

Hanwha PNM-C9022RV Series 8MP AI IR Panoramic IP Camera, 2.8mm Fixed Lens, White
Image of 5
Key Features
- Covers wide areas with a single camera: 209° panoramic view and 8MP stitched image reduce the number of cameras needed for perimeter and parking-lot monitoring
- Reliable outdoor performance: IP66 weatherproofing and IK10 impact resistance ensure continuous security in harsh environments
- Clear day/night detail: 8MP resolution, 2.8mm fixed lens and 20m IR deliver sharp, low-light surveillance for 24/7 monitoring
- Intelligent event filtering: built-in AI classifies person vs. vehicle and supports virtual line/area rules to cut false alarms and speed incident response
- Efficient storage and bandwidth: H.265, WiseStream III support and dual microSD slots lower network load and storage costs
- Flexible installation and integration: PoE and RJ-45 network connectivity simplify deployment into existing IP video systems and VMS platforms
Quick Specifications
- Product Model
- PNM-C9022RV
- Brand Name
- Hanwha Vision
- Product Name
- 8MP AI IR Panoramic Camera
- Product Type
- Camera
Frequently Bought Together
Hanwha PNM-C9022RV Series 8MP AI IR Panoramic IP Camera, 2.8mm Fixed Lens, White
$1,254.60
4 items selected
Total: $2,341.78
Product Information Tabs
Overview
Designed for expansive outdoor monitoring, the Hanwha Vision PNM-C9022RV 8MP AI IR Panoramic IP Camera delivers comprehensive surveillance with fewer cameras. This panoramic camera produces a 5120 x 1568 stitched image across a 209° field of view, letting security teams monitor wide areas such as parking lots, campuses and retail fronts from a single mount. With 8MP resolution, a 2.8mm fixed lens and up to 20 m of IR illumination, it preserves critical detail day and night while WiseIR and WiseStream III reduce bandwidth and storage consumption.
Built for demanding environments, the PNM-C9022RV is IP66-rated and IK10 impact resistant, ensuring durable outdoor operation in extreme temperatures. Advanced on-board AI analytics provide object classification (person/vehicle), virtual line and area rules, and tamper detection to minimize false alarms and accelerate incident verification. Compatible with PoE and standard network video systems, it integrates easily into existing security infrastructures.
For reliable outdoor security and efficient monitoring across large sites, specify the Hanwha Vision PNM-C9022RV. Contact your reseller to request a quote or schedule a demo.
Features
- Covers wide areas with a single camera: 209° panoramic view and 8MP stitched image reduce the number of cameras needed for perimeter and parking-lot monitoring
- Reliable outdoor performance: IP66 weatherproofing and IK10 impact resistance ensure continuous security in harsh environments
- Clear day/night detail: 8MP resolution, 2.8mm fixed lens and 20m IR deliver sharp, low-light surveillance for 24/7 monitoring
- Intelligent event filtering: built-in AI classifies person vs. vehicle and supports virtual line/area rules to cut false alarms and speed incident response
- Efficient storage and bandwidth: H.265, WiseStream III support and dual microSD slots lower network load and storage costs
- Flexible installation and integration: PoE and RJ-45 network connectivity simplify deployment into existing IP video systems and VMS platforms
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 8MP AI IR Panoramic Camera |
| Product Type | Camera |
| Product Model | PNM-C9022RV |
| Product Series | P |
| Manufacturer Part Number | PNM-C9022RV |
| Technical Information | |
| Lens Type | Fixed Focus |
| Night Vision | Yes |
| Optical Zoom | 4x |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 20fps |
| Minimum Focal Length | 2.8mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 60° |
| Field of View (Horizontal) | 209° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 5120 x 1568 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.01 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 2.8mm |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Network & Communication | |
| Remote Management | Yes |
| Others | |
| Model Number Replaces | PNM-9022V |
| Physical Characteristics | |
| Color | White |
| Weight | 6.39lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 9.96" |
| Mount Type | Pendant Mount |
| Storage | |
| Storage Type | Memory Card |
| Miscellaneous | |
| Features | ,, 209° panoramic stitching image, 20fps at all resolutions (H.265/H.264/MJPEG), 8MP 5120X1568 resolution, Analytics events based on AI engine - Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit), H.265, H.264, MJPEG codec, WiseStream III supported, Hard-coated dome bubble, IR viewable length Maximum 20m (65.6ft), WiseIR, Micro SD/SDHC/SDXC 2 slots, PoE /12v DC,, Standard analytic events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear), WiseNRⅡ(Based on AI engine) |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
