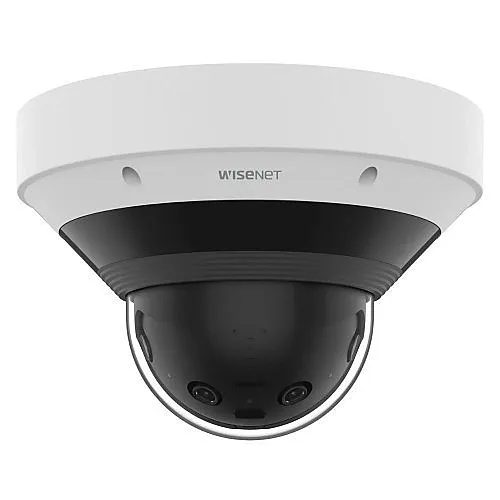

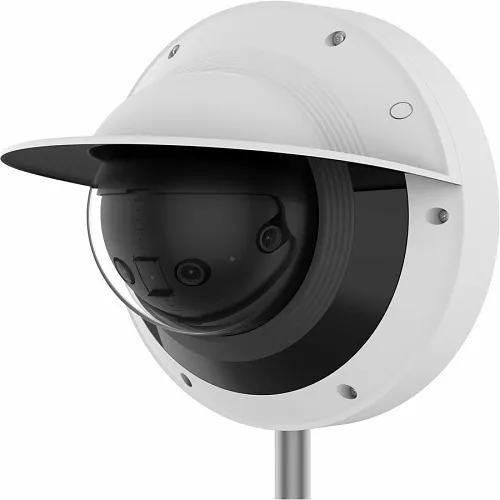

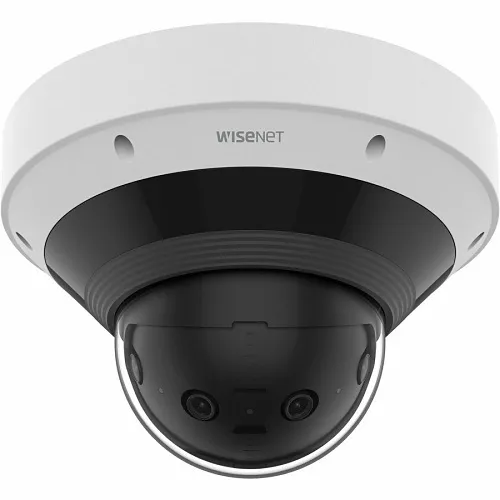

Hanwha PNM-C9022RV/KEX Series 8MP AI IR Panoramic IP Camera, 2.8mm Fixed Lens, White, TAA Compliant
Special Order Item
This item is available by special order. Lead times may vary. Please contact us for availability and estimated delivery.
Image of 4
Key Features
- Wide 209° panoramic coverage that replaces multiple fixed cameras, reducing installation complexity and delivering uninterrupted situational awareness.
- AI-powered analytics (person/vehicle classification, virtual line/area rules) to cut false alarms and accelerate incident response for security teams.
- True 8MP (5120 x 1568) resolution with 65.6 ft (20 m) IR and WiseNR/WiseIR for clear day/night surveillance and low-light monitoring.
- Secure, resilient design with TPM 2.0 secure boot, TAA compliance, IP66 weatherproofing and IK10 vandal resistance for reliable outdoor operation.
- Bandwidth-optimized H.265 + WiseStream III and dual microSD slots with PoE+ support for flexible, cost-effective network deployments and local retention.
Quick Specifications
- Product Model
- PNM-C9022RV/KEX
- Brand Name
- Hanwha Vision
- Product Name
- 8MP AI IR Panoramic Camera
- Product Type
- Camera
Frequently Bought Together
Hanwha PNM-C9022RV/KEX Series 8MP AI IR Panoramic IP Camera, 2.8mm Fixed Lens, White, TAA Compliant
$1,470.90
4 items selected
Total: $2,558.08
Product Information Tabs
Overview
Designed for wide-area security and 24/7 monitoring, the Hanwha Vision PNM-C9022RV/KEX Series 8MP AI IR Panoramic IP Camera delivers continuous, high-quality situational awareness across large outdoor spaces. The single-camera panoramic view (209° horizontal) and 8MP 5120 x 1568 resolution capture critical detail across parking lots, building perimeters, and campus corridors while reducing the number of cameras and cabling required. Built-in AI analytics—person and vehicle classification, virtual line/area rules and loitering detection—cuts nuisance alerts and prioritizes meaningful events for faster response. Low-light performance is enhanced by WiseIR and up to 65.6 ft (20 m) IR range, while WiseStream III and H.265 codecs optimize bandwidth and storage. Hardened for real-world deployments, the camera features IP66 weatherproofing, IK10 impact resistance, TPM 2.0 secure boot and TAA compliance for government or enterprise projects. PoE+ support and dual microSD slots simplify installation and ensure resilient recording. Ideal for security, surveillance and remote monitoring deployments—add the Hanwha Vision panoramic camera to your site to streamline coverage and improve incident detection.
Features
- Wide 209° panoramic coverage that replaces multiple fixed cameras, reducing installation complexity and delivering uninterrupted situational awareness.
- AI-powered analytics (person/vehicle classification, virtual line/area rules) to cut false alarms and accelerate incident response for security teams.
- True 8MP (5120 x 1568) resolution with 65.6 ft (20 m) IR and WiseNR/WiseIR for clear day/night surveillance and low-light monitoring.
- Secure, resilient design with TPM 2.0 secure boot, TAA compliance, IP66 weatherproofing and IK10 vandal resistance for reliable outdoor operation.
- Bandwidth-optimized H.265 + WiseStream III and dual microSD slots with PoE+ support for flexible, cost-effective network deployments and local retention.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 8MP AI IR Panoramic Camera |
| Product Type | Camera |
| Product Model | PNM-C9022RV/KEX |
| Product Series | P |
| Manufacturer Part Number | PNM-C9022RV/KEX |
| Technical Information | |
| Lens Type | Fixed Focus |
| Night Vision | Yes |
| Field of View | Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/2 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 20fps |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 60° |
| Field of View (Horizontal) | 209° |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 65.62 ft |
| Certifications | |
| TAA Compliant | Yes |
| Ingress Protection Rating | IP66 |
| Display & Graphics | |
| Number of Sensors | 4 |
| Maximum Video Resolution | 5120 x 1568 |
| Environmental Conditions | |
| Operating Humidity | 0-95% RH (Non-condensing) |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.01 lux |
| Longest Shutter Speed | 2 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Lens Included | Yes |
| Maximum Focal Length | 2.8mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 6.39lb |
| Durability | Dustproof, Impact Resistant, Waterproof |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 9.96" |
| Storage | |
| Storage Type | Memory Card |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | ,, 209° panoramic stitching image, 20fps at all resolutions (H.265/H.264/MJPEG), 8MP 5120X1568 resolution, Analytics events based on AI engine - Object classification (Person/Vehicle), Virtual line (Crossing/Direction), Virtual area (Loitering/Intrusion/Enter/Exit), H.265, H.264, MJPEG codec, WiseStream III supported, Hard-coated dome bubble, IR viewable length Maximum 20m (65.6ft), WiseIR, Micro SD/SDHC/SDXC 2 slots, PoE /12v DC,, Standard analytic events - Defocus detection, Motion detection, Tampering, Audio detection, Sound classification, Virtual area(Appear/Disappear), WiseNRⅡ(Based on AI engine) |
| Indoor/Outdoor | Outdoor |
| Country of Origin | KR |
| Impact Protection Rating | IK10 |
