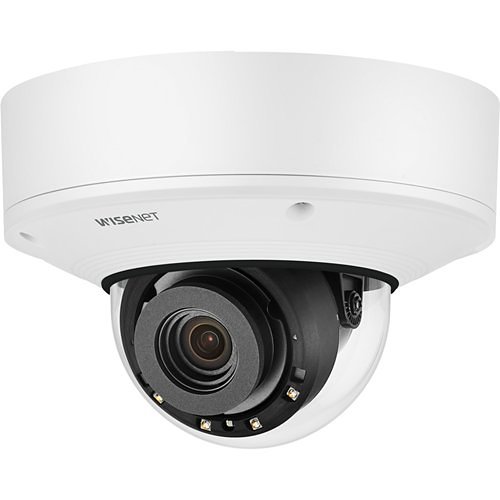

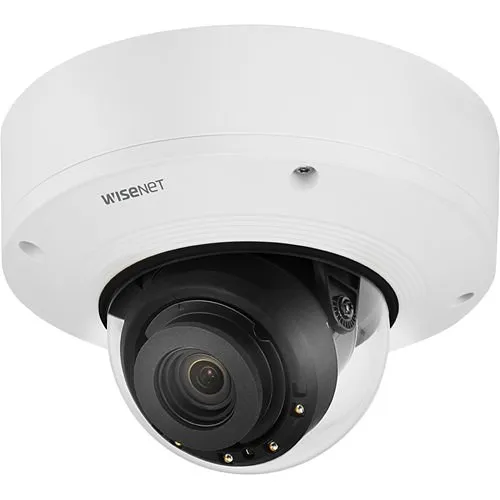

Hanwha PNV-A9081R P-Series 4K AI IR Vandal Dome Camera, 4.5-10mm Varifocal Lens, White
Key Features
- Ultra-clear 4K imaging for precise identification and evidence-grade surveillance day or night.
- AI-powered analytics reduce false alarms and enable person, face, vehicle and license plate detection for proactive security.
- Motorized 4.5–10mm varifocal lens with 2.2x optical zoom lets you adapt coverage without swapping cameras.
- Rugged, weatherproof IK10 / IP6K9K aluminum housing protects installations in harsh or high-risk environments.
- PoE and ONVIF/NDAA compliance simplify installation and integration across enterprise surveillance networks.
Quick Specifications
- Brand Name
- Hanwha Vision
- Manufacturer
- Hanwha Vision
- Product Name
- 4K AI IR Vandal Dome
- Product Type
- Dome Camera
Frequently Bought Together
Hanwha PNV-A9081R P-Series 4K AI IR Vandal Dome Camera, 4.5-10mm Varifocal Lens, White
$1,315.80
15 items selected
Total: $4,629.12
Product Information Tabs
Overview
Designed for reliable 24/7 monitoring of perimeter, retail and critical infrastructure, the Hanwha Vision PNV-A9081R P-Series 4K AI IR vandal dome delivers actionable video where it matters. This dome camera combines 8MP 3840 x 2160 resolution at 30 fps with a motorized 4.5–10mm varifocal lens, giving security teams the clarity and framing flexibility needed to identify people, vehicles and incidents. Built-in AI analytics classify objects (person, face, vehicle, license plate) to reduce false alarms and speed incident response, while 98 ft (30 m) IR illumination ensures reliable night vision. PoE connectivity streamlines deployment with a single cable for power and data, and dual memory slots support on-camera failover recording. Housed in an IK10, IP66/IP67/IP6K9K-rated aluminum enclosure, the PNV-A9081R withstands vandalism and extreme environments for outdoor surveillance. NDAA-compliant and ONVIF-compatible, it integrates easily into existing VMS and network infrastructures. For high-confidence security and flexible monitoring coverage, add the Hanwha Vision PNV-A9081R to your surveillance system — contact sales or order today.
Features
- Ultra-clear 4K imaging for precise identification and evidence-grade surveillance day or night.
- AI-powered analytics reduce false alarms and enable person, face, vehicle and license plate detection for proactive security.
- Motorized 4.5–10mm varifocal lens with 2.2x optical zoom lets you adapt coverage without swapping cameras.
- Rugged, weatherproof IK10 / IP6K9K aluminum housing protects installations in harsh or high-risk environments.
- PoE and ONVIF/NDAA compliance simplify installation and integration across enterprise surveillance networks.
| General Information | |
|---|---|
| Brand Name | Hanwha Vision |
| Manufacturer | Hanwha Vision |
| Product Name | 4K AI IR Vandal Dome |
| Product Type | Dome Camera |
| Product Model | PNV-A9081R |
| Product Series | P |
| Manufacturer Part Number | PNV-A9081R |
| Technical Information | |
| Lens Type | Varifocal |
| Night Vision | Yes |
| Optical Zoom | 2.2x |
| Field of View | Diagonal, Horizontal, Vertical |
| Video Formats | H.264, H.265, MJPEG |
| Maximum Aperture | f/1.6 |
| Night Vision Type | Infrared |
| Maximum Frame Rate | 30fps |
| Minimum Focal Length | 4.5mm |
| Connectivity Technology | Wired |
| Field of View (Vertical) | 53.6° |
| Field of View (Horizontal) | 101.4° |
| Effective Camera Resolution | 8MP |
| Camera | |
| Image Sensor Type | CMOS |
| Wide Dynamic Range | Yes |
| Night Vision Distance | 98.43 ft |
| Certifications | |
| TAA Compliant | Yes |
| NDAA Compliant | Yes |
| Ingress Protection Rating | IP66, IP67, IP6K9K |
| Display & Graphics | |
| Maximum Video Resolution | 3840 x 2160 |
| Environmental Conditions | |
| Operating Humidity | 90% RH |
| Maximum Operating Temperature | 131°F |
| Minimum Operating Temperature | -40°F |
| Exposure | |
| Minimum Illumination | 0.005 lux |
| Longest Shutter Speed | 1/5 Second |
| Shortest Shutter Speed | 1/12,000 Second |
| Interfaces/Ports | |
| Network (RJ-45) | Yes |
| Lens | |
| Focal Length | 4.5-10mm |
| Lens Included | Yes |
| Minimum Aperture | f/2.65 |
| Maximum Focal Length | 10mm |
| Network & Communication | |
| Remote Management | Yes |
| Physical Characteristics | |
| Color | White |
| Weight | 4.19lb |
| Durability | Dustproof, Impact Resistant, Vandal Resistant, Waterproof |
| Form Factor | Dome |
| Power Description | |
| Input Voltage | 12V DC |
| Product Information | |
| Diameter | 7.09" |
| Mount Type | Ceiling Mount, Conduit Mount, Corner Mount, Gang Box Mount, Gooseneck Mount, Pendant Mount, Pole Mount, Wall Mount |
| Storage | |
| Storage Type | Memory Card |
| Recording Formats | 4K |
| Video | |
| Maximum Resolution | 1280 x 720 |
| Analog Video Signal Format | CVBS |
| Warranty | |
| Limited Warranty | 3-Year |
| Miscellaneous | |
| Features | 0.05Lux at F1.6 (Color), 0 Lux (B/W IR LED On), 30fps at all resolutions (H.265/H.264), 30m (98ft) IR illumination, 4.5-10mm (2.2x) motorized varifocal lens, 4K/8 MP (3840 x 2160) resolution, Day and Night (ICR), WDR (120dB), P-Iris, Digital image stabilization with built-in Gyro sensor, H.265, H.264, MJPEG codec supported, Multiple streaming, Object detection and classification (Person, Face, Vehicle, License Plate), Attribute, BestShot, Video Analytics based on AI |
| Indoor/Outdoor | Outdoor |
| Country of Origin | VN |
| Impact Protection Rating | IK10 |
