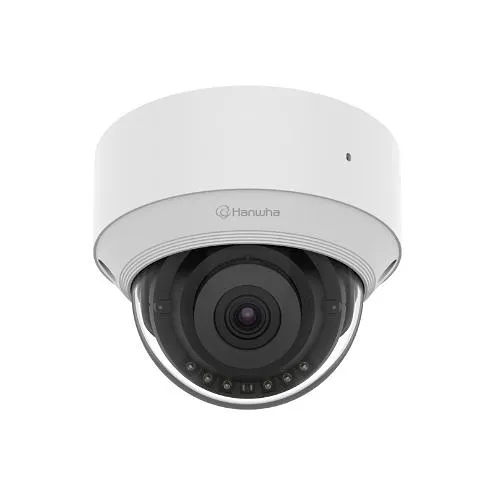

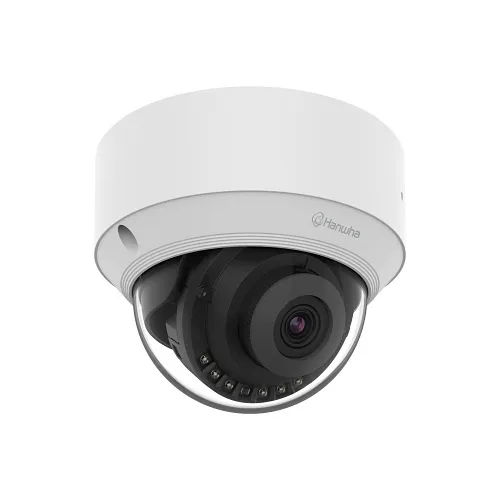

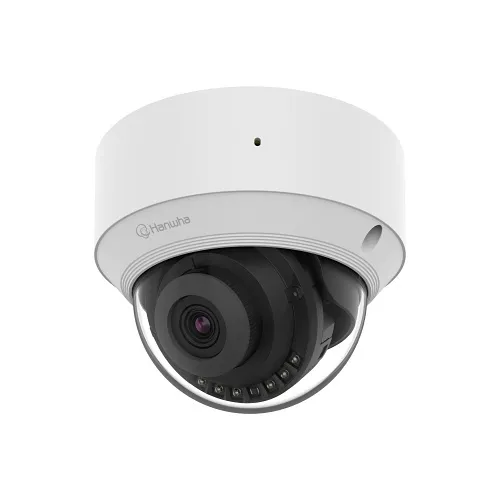

Hanwha QND-C8023R 5MP AI Indoor Dome IR Camera with Built-In Mic, 4mm Fixed Lens

SKU: QND-C8023R Hanwha Vision
Image of SQ-QNDC8023R
Product images for Hanwha QND-C8023R 5MP AI Indoor Dome IR Camera with Built-In Mic, 4mm Fixed Lens. 4 image(s) available. Click on image to view full size.

Key Features

  • High-detail 5MP imaging with a 4mm fixed lens for clear identification and evidence-grade indoor surveillance
  • AI-powered analytics and WiseStream/H.265 compression reduce bandwidth and alert you to relevant events
  • 25m IR and low-light sensitivity for dependable 24/7 monitoring in dim environments
  • Built-in microphone and onboard 256GB SD support capture audio and local backup for continuous recording
  • PoE-enabled, compact dome design for simple installation in offices, retail, schools and hospitality
  • Privacy masking, defocus detection and hallway view optimize coverage while maintaining compliance

Quick Specifications

Product Model
QND-C8023R
Brand Name
Hanwha Vision
Manufacturer Part Number
QND-C8023R
View Full Technical Specifications

Product Information Tabs

Overview

Protect indoor spaces with the Hanwha Vision QND-C8023R — a compact 5MP AI indoor dome camera designed for reliable day-and-night surveillance. Engineered for commercial installations, this Wisenet Q camera delivers crisp 5MP (up to 30fps) video through a 4mm fixed lens and uses H.265/WiseStream compression to minimize network load without sacrificing image quality. Built-in AI analytics drive actionable alerts such as motion detection, virtual line crossing and dynamic privacy masking, helping you focus on true security events instead of false alarms.

Low-light performance and 25m IR illumination ensure continuous monitoring after dark, while the integrated microphone and onboard SD card slot provide audio capture and local failover recording. PoE support and an unobtrusive white dome form factor make installation fast and clean across retail, office, education and healthcare environments. Certified to CE/FCC standards, the QND-C8023R balances advanced features with practical deployment needs.

Upgrade your indoor security and monitoring strategy with a camera that combines high-resolution imaging, AI intelligence and efficient networking — ideal for proactive surveillance and evidence collection.

Features

  • High-detail 5MP imaging with a 4mm fixed lens for clear identification and evidence-grade indoor surveillance
  • AI-powered analytics and WiseStream/H.265 compression reduce bandwidth and alert you to relevant events
  • 25m IR and low-light sensitivity for dependable 24/7 monitoring in dim environments
  • Built-in microphone and onboard 256GB SD support capture audio and local backup for continuous recording
  • PoE-enabled, compact dome design for simple installation in offices, retail, schools and hospitality
  • Privacy masking, defocus detection and hallway view optimize coverage while maintaining compliance
General Information
Brand Name Hanwha Vision
Manufacturer Part Number QND-C8023R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265
Maximum Aperture f/1.6
Video Resolution 2688 x 1512
Maximum Frame Rate 30fps
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Display & Graphics
Maximum Illumination 0.005 lux, 0.05 lux
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Maximum Operating Temperature 113°F
Minimum Operating Temperature 14°F
Physical Characteristics
Color White
Weight 0.7lb
Form Factor Dome
Product Information
Length 98.4'
Diameter 4.3"
Miscellaneous
Features Built-in Mic, Built-in SD card slot (1x256GB), Defocus detection, Hallway View, Open platform, PoE, Wisenet Q network indoor dome camera
Indoor/Outdoor Indoor
Environmentally Friendly Yes
Environmental Certification CE, FCC
