Hanwha QNE-C8013RL Q Series 5MP AI Dual Light Flateye Camera, 3mm Fixed Lens, IR 30m

SKU: QNE-C8013RL Hanwha Vision

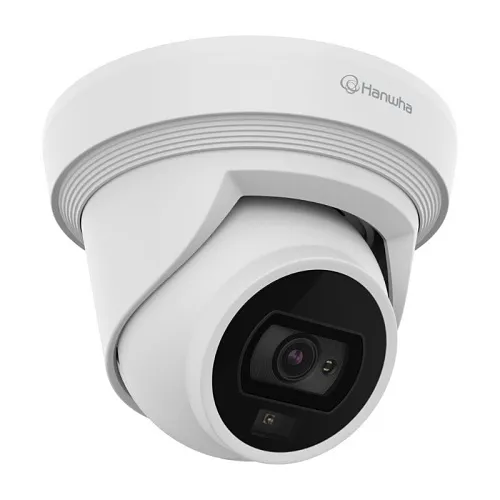

Image of SQ-QNEC813RL
Product images for Hanwha QNE-C8013RL Q Series 5MP AI Dual Light Flateye Camera, 3mm Fixed Lens, IR 30m. 2 image(s) available. Click on image to view full size.

Key Features

  • Dual-light illumination (3000K warm white + IR) delivers color video at night and discreet IR for zero-lux detection up to 30 m
  • AI-based human and vehicle classification reduces false alarms and focuses monitoring on real threats
  • 5MP resolution with f/1.2 optics and 3mm fixed lens ensures clear, wide coverage for entrances, parking lots, and perimeters
  • Rugged outdoor design (IP66/IP67, IK10) withstands weather and vandalism for reliable 24/7 surveillance
  • Efficient H.265 compression and local SD storage reduce bandwidth and simplify deployment for networked security systems

Quick Specifications

Product Model
QNE-C8013RL
Brand Name
Hanwha Vision
Product Name
5MP AI Dual Light Flateye Camera
Product Type
Flateye Camera
View Full Technical Specifications

Product Information Tabs

Overview

Get dependable, color-capable night surveillance without sacrificing accuracy. The Hanwha Vision QNE-C8013RL Q Series 5MP AI Dual Light Turret Camera combines a bright 3000K warm white LED with infrared illumination to deliver vivid color images in low light and discreet 0-lux IR detection up to 30 meters. Its 5MP sensor, f/1.2 aperture and 3mm fixed lens provide wide, detailed coverage for entrances, parking areas and perimeter monitoring.

Built for professional security deployments, the QNE-C8013RL uses onboard AI object classification to distinguish people and vehicles—cutting false alarms and streamlining incident review. H.265 compression and WiseStream III reduce bandwidth and storage requirements, while a microSD slot enables local backup. With IP66/IP67 weather resistance and IK10 impact protection, this turret camera is designed for rugged outdoor use. ONVIF compatibility and wired RJ-45 networking make integration with VMS and NVR systems straightforward.

Ideal for commercial, retail, and municipal surveillance, the Hanwha Vision QNE-C8013RL delivers clear images, smarter alerts and durable performance. Add it to your security system or contact sales for a site-specific recommendation.

Features

  • Dual-light illumination (3000K warm white + IR) delivers color video at night and discreet IR for zero-lux detection up to 30 m
  • AI-based human and vehicle classification reduces false alarms and focuses monitoring on real threats
  • 5MP resolution with f/1.2 optics and 3mm fixed lens ensures clear, wide coverage for entrances, parking lots, and perimeters
  • Rugged outdoor design (IP66/IP67, IK10) withstands weather and vandalism for reliable 24/7 surveillance
  • Efficient H.265 compression and local SD storage reduce bandwidth and simplify deployment for networked security systems
General Information
Brand Name Hanwha Vision
Manufacturer Hanwha Vision
Product Name 5MP AI Dual Light Flateye Camera
Product Type Flateye Camera
Product Model QNE-C8013RL
Product Series Q
Manufacturer Part Number QNE-C8013RL
Technical Information
Lens Type Fixed Focus
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Lens Mount Type M12
Maximum Aperture f/1.2
Video Resolution Yes
Night Vision Type Infrared/Color
Maximum Frame Rate 30fps
Minimum Focal Length 3mm
Connectivity Technology Wired
Field of View (Vertical) 53°
Field of View (Horizontal) 97°
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Wide Dynamic Range Yes
Night Vision Distance 98.43 ft
Certifications
Ingress Protection Rating IP66, IP67
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 0-95% RH
Maximum Operating Temperature 140°F
Minimum Operating Temperature -40°F
Exposure
Minimum Illumination 0.0022 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/12,000 Second
Interfaces/Ports
Network (RJ-45) Yes
Lens
Focal Length 3mm
Lens Included Yes
Maximum Focal Length 3mm
Network & Communication
Remote Management Yes
Physical Characteristics
Color White
Height 3.92"
Weight 1.74lb
Durability Dustproof, Impact Resistant, Waterproof
Product Information
Diameter 5.51"
Mount Type Ceiling Mount, Wall Mount
Storage
Storage Type Memory Card
Video
Maximum Resolution 1280 x 720
Warranty
Limited Warranty 5-Year
Miscellaneous
Features Anti-flicker, Automatic White Balance, Day/Night, Digital Noise Reduction, Gain Control, Intelligent Backlight Compensation (iBLC), Motion Detection, Privacy Masking, PTZ, SD Card Local Storage, Wide Dynamic Range
Indoor/Outdoor Outdoor
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification CE, FCC, UL
