Warehouse: United States

Hanwha QNO-C8023R 5MP AI IR Bullet IP Camera, 120 dB WDR, 30m IR, 4mm Fixed Lens

SKU: QNO-C8023R Hanwha Vision

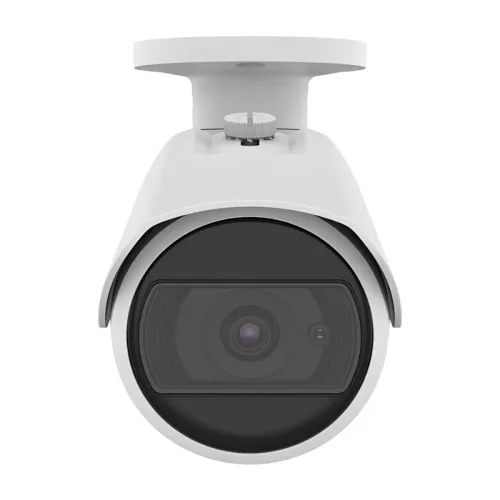

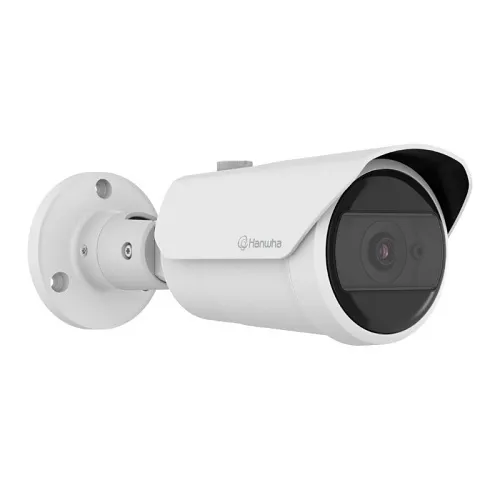

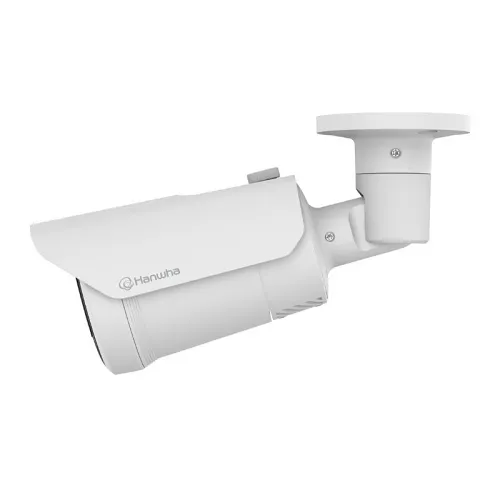

Image of SQ-QNOC8023R
Product images for Hanwha QNO-C8023R 5MP AI IR Bullet IP Camera, 120 dB WDR, 30m IR, 4mm Fixed Lens. 4 image(s) available. Click on image to view full size.

Key Features

  • Advanced AI analytics for person and vehicle classification reduces false alarms and prioritizes meaningful events for faster incident response
  • Crisp 5MP imaging with 120 dB WDR delivers clear, actionable video in bright backlight and high-contrast scenes
  • 30 m IR night vision and f/1.6 4mm fixed lens provide reliable day/night coverage and wide-area monitoring with simple setup
  • Rugged IP66 and IK10 rating ensures dependable outdoor performance against weather and vandalism for perimeter security
  • H.265/H.264 with WiseStream III compression lowers bandwidth and storage costs while preserving image quality
  • Built-in IVA (virtual line/area, loitering, intrusion) and defocus detection enable proactive surveillance and streamlined system management

Quick Specifications

Product Model
QNO-C8023R
Brand Name
Hanwha Vision
Manufacturer Part Number
QNO-C8023R
View Full Technical Specifications

Frequently Bought Together

Product Information Tabs

Overview

Optimize perimeter and facility surveillance with the Hanwha Vision QNO-C8023R 5MP AI IR Bullet Camera. Designed for professional security applications, this bullet camera combines intelligent analytics, high-resolution imaging and rugged outdoor durability to deliver reliable monitoring where it matters most. The 5MP sensor and 120 dB WDR produce clear, forensic-quality video in challenging light, while the 4mm fixed lens and f/1.6 aperture provide broad scene coverage for entrances, parking lots and perimeters. Nighttime visibility is assured with up to 30 meters of IR illumination, and on-board AI classifies persons and vehicles to reduce false positives and speed incident review. Built to withstand outdoor conditions, the QNO-C8023R carries IP66 and IK10 ratings for weather and impact resistance, making it ideal for critical infrastructure, retail and commercial sites. Efficient H.265 compression with WiseStream III minimizes storage and network load without sacrificing detail. Integrate this Hanwha Vision bullet camera into your security system to enhance situational awareness and streamline monitoring — contact us or add to your next surveillance deployment.

Features

  • Advanced AI analytics for person and vehicle classification reduces false alarms and prioritizes meaningful events for faster incident response
  • Crisp 5MP imaging with 120 dB WDR delivers clear, actionable video in bright backlight and high-contrast scenes
  • 30 m IR night vision and f/1.6 4mm fixed lens provide reliable day/night coverage and wide-area monitoring with simple setup
  • Rugged IP66 and IK10 rating ensures dependable outdoor performance against weather and vandalism for perimeter security
  • H.265/H.264 with WiseStream III compression lowers bandwidth and storage costs while preserving image quality
  • Built-in IVA (virtual line/area, loitering, intrusion) and defocus detection enable proactive surveillance and streamlined system management
General Information
Brand Name Hanwha Vision
Manufacturer Part Number QNO-C8023R
Technical Information
Lens Type Fixed
Night Vision Yes
Field of View Diagonal, Horizontal, Vertical
Video Formats H.264, H.265, MJPEG
Maximum Aperture f/1.6
Video Resolution 2688 x 1512
Maximum Frame Rate 30 fps
Effective Camera Resolution 5MP
Camera
Image Sensor Type CMOS
Certifications
Ingress Protection Rating IP66
Display & Graphics
Maximum Video Resolution 2592 x 1944
Environmental Conditions
Operating Humidity 1
Maximum Operating Temperature 131°F
Minimum Operating Temperature -22°F
Exposure
Minimum Illumination 0.005 lux
Longest Shutter Speed 1/5 Second
Shortest Shutter Speed 1/25000 Second
Lens
Focal Length 4mm
Lens Included Yes
Maximum Focal Length 4mm
Physical Characteristics
Color White
Depth 10.44"
Height 3.89"
Weight 1.96lb
Form Factor Bullet
Miscellaneous
Environmentally Friendly Yes
Impact Protection Rating IK10
Environmental Certification CE, FCC, UL
